Load LM Checkpoints using Model Garden

View on TensorFlow.org

Run in Google Colab

View source on GitHub

Download notebook

This tutorial demonstrates how to load BERT, ALBERT and ELECTRA pretrained checkpoints and use them for downstream tasks.

Model Garden contains a collection of state-of-the-art models, implemented with TensorFlow's high-level APIs. The implementations demonstrate the best practices for modeling, letting users to take full advantage of TensorFlow for their research and product development.

Install TF Model Garden package

pip install -U -q "tf-models-official"

Import necessary libraries

import os
import yaml
import json

import tensorflow as tf

2023-10-17 12:27:09.738068: E tensorflow/compiler/xla/stream_executor/cuda/cuda_dnn.cc:9342] Unable to register cuDNN factory: Attempting to register factory for plugin cuDNN when one has already been registered
2023-10-17 12:27:09.738115: E tensorflow/compiler/xla/stream_executor/cuda/cuda_fft.cc:609] Unable to register cuFFT factory: Attempting to register factory for plugin cuFFT when one has already been registered
2023-10-17 12:27:09.738155: E tensorflow/compiler/xla/stream_executor/cuda/cuda_blas.cc:1518] Unable to register cuBLAS factory: Attempting to register factory for plugin cuBLAS when one has already been registered

import tensorflow_models as tfm

from official.core import exp_factory

Load BERT model pretrained checkpoints

Select required BERT model

# @title Download Checkpoint of the Selected Model { display-mode: "form", run: "auto" }
model_display_name = 'BERT-base cased English'  # @param ['BERT-base uncased English','BERT-base cased English','BERT-large uncased English', 'BERT-large cased English', 'BERT-large, Uncased (Whole Word Masking)', 'BERT-large, Cased (Whole Word Masking)', 'BERT-base MultiLingual','BERT-base Chinese']

if model_display_name == 'BERT-base uncased English':
  !wget "https://storage.googleapis.com/tf_model_garden/nlp/bert/v3/uncased_L-12_H-768_A-12.tar.gz"
  !tar -xvf "uncased_L-12_H-768_A-12.tar.gz"
elif model_display_name == 'BERT-base cased English':
  !wget "https://storage.googleapis.com/tf_model_garden/nlp/bert/v3/cased_L-12_H-768_A-12.tar.gz"
  !tar -xvf "cased_L-12_H-768_A-12.tar.gz"
elif model_display_name == "BERT-large uncased English":
  !wget "https://storage.googleapis.com/tf_model_garden/nlp/bert/v3/uncased_L-24_H-1024_A-16.tar.gz"
  !tar -xvf "uncased_L-24_H-1024_A-16.tar.gz"
elif model_display_name == "BERT-large cased English":
  !wget "https://storage.googleapis.com/tf_model_garden/nlp/bert/v3/cased_L-24_H-1024_A-16.tar.gz"
  !tar -xvf "cased_L-24_H-1024_A-16.tar.gz"
elif model_display_name == "BERT-large, Uncased (Whole Word Masking)":
  !wget "https://storage.googleapis.com/tf_model_garden/nlp/bert/v3/wwm_uncased_L-24_H-1024_A-16.tar.gz"
  !tar -xvf "wwm_uncased_L-24_H-1024_A-16.tar.gz"
elif model_display_name == "BERT-large, Cased (Whole Word Masking)":
  !wget "https://storage.googleapis.com/tf_model_garden/nlp/bert/v3/wwm_cased_L-24_H-1024_A-16.tar.gz"
  !tar -xvf "wwm_cased_L-24_H-1024_A-16.tar.gz"
elif model_display_name == "BERT-base MultiLingual":
  !wget "https://storage.googleapis.com/tf_model_garden/nlp/bert/v3/multi_cased_L-12_H-768_A-12.tar.gz"
  !tar -xvf "multi_cased_L-12_H-768_A-12.tar.gz"
elif model_display_name == "BERT-base Chinese":
  !wget "https://storage.googleapis.com/tf_model_garden/nlp/bert/v3/chinese_L-12_H-768_A-12.tar.gz"
  !tar -xvf "chinese_L-12_H-768_A-12.tar.gz"

--2023-10-17 12:27:14--  https://storage.googleapis.com/tf_model_garden/nlp/bert/v3/cased_L-12_H-768_A-12.tar.gz
Resolving storage.googleapis.com (storage.googleapis.com)... 172.217.219.207, 209.85.146.207, 209.85.147.207, ...
Connecting to storage.googleapis.com (storage.googleapis.com)|172.217.219.207|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 401886728 (383M) [application/octet-stream]
Saving to: ‘cased_L-12_H-768_A-12.tar.gz’

cased_L-12_H-768_A- 100%[===================>] 383.27M  79.4MB/s    in 5.3s

2023-10-17 12:27:19 (72.9 MB/s) - ‘cased_L-12_H-768_A-12.tar.gz’ saved [401886728/401886728]

cased_L-12_H-768_A-12/
cased_L-12_H-768_A-12/vocab.txt
cased_L-12_H-768_A-12/bert_model.ckpt.index
cased_L-12_H-768_A-12/bert_model.ckpt.data-00000-of-00001
cased_L-12_H-768_A-12/params.yaml
cased_L-12_H-768_A-12/bert_config.json

# Lookup table of the directory name corresponding to each model checkpoint
folder_bert_dict = {
    'BERT-base uncased English': 'uncased_L-12_H-768_A-12',
    'BERT-base cased English': 'cased_L-12_H-768_A-12',
    'BERT-large uncased English': 'uncased_L-24_H-1024_A-16',
    'BERT-large cased English': 'cased_L-24_H-1024_A-16',
    'BERT-large, Uncased (Whole Word Masking)': 'wwm_uncased_L-24_H-1024_A-16',
    'BERT-large, Cased (Whole Word Masking)': 'wwm_cased_L-24_H-1024_A-16',
    'BERT-base MultiLingual': 'multi_cased_L-12_H-768_A-1',
    'BERT-base Chinese': 'chinese_L-12_H-768_A-12'
}

folder_bert = folder_bert_dict.get(model_display_name)
folder_bert

'cased_L-12_H-768_A-12'

Construct BERT Model Using the New `params.yaml`

params.yaml can be used for training with the bundled trainer in addition to constructing the BERT encoder here.

config_file = os.path.join(folder_bert, "params.yaml")
config_dict = yaml.safe_load(tf.io.gfile.GFile(config_file).read())
config_dict

{'task': {'model': {'encoder': {'bert': {'attention_dropout_rate': 0.1,
     'dropout_rate': 0.1,
     'hidden_activation': 'gelu',
     'hidden_size': 768,
     'initializer_range': 0.02,
     'intermediate_size': 3072,
     'max_position_embeddings': 512,
     'num_attention_heads': 12,
     'num_layers': 12,
     'type_vocab_size': 2,
     'vocab_size': 28996},
    'type': 'bert'} } } }

# Method 1: pass encoder config dict into EncoderConfig
encoder_config = tfm.nlp.encoders.EncoderConfig(config_dict["task"]["model"]["encoder"])
encoder_config.get().as_dict()

{'vocab_size': 28996,
 'hidden_size': 768,
 'num_layers': 12,
 'num_attention_heads': 12,
 'hidden_activation': 'gelu',
 'intermediate_size': 3072,
 'dropout_rate': 0.1,
 'attention_dropout_rate': 0.1,
 'max_position_embeddings': 512,
 'type_vocab_size': 2,
 'initializer_range': 0.02,
 'embedding_size': None,
 'output_range': None,
 'return_all_encoder_outputs': False,
 'return_attention_scores': False,
 'norm_first': False}

# Method 2: use override_params_dict function to override default Encoder params
encoder_config = tfm.nlp.encoders.EncoderConfig()
tfm.hyperparams.override_params_dict(encoder_config, config_dict["task"]["model"]["encoder"], is_strict=True)
encoder_config.get().as_dict()

{'vocab_size': 28996,
 'hidden_size': 768,
 'num_layers': 12,
 'num_attention_heads': 12,
 'hidden_activation': 'gelu',
 'intermediate_size': 3072,
 'dropout_rate': 0.1,
 'attention_dropout_rate': 0.1,
 'max_position_embeddings': 512,
 'type_vocab_size': 2,
 'initializer_range': 0.02,
 'embedding_size': None,
 'output_range': None,
 'return_all_encoder_outputs': False,
 'return_attention_scores': False,
 'norm_first': False}

Construct BERT Model Using the Old `bert_config.json`

bert_config_file = os.path.join(folder_bert, "bert_config.json")
config_dict = json.loads(tf.io.gfile.GFile(bert_config_file).read())
config_dict

{'hidden_size': 768,
 'initializer_range': 0.02,
 'intermediate_size': 3072,
 'max_position_embeddings': 512,
 'num_attention_heads': 12,
 'num_layers': 12,
 'type_vocab_size': 2,
 'vocab_size': 28996,
 'hidden_activation': 'gelu',
 'dropout_rate': 0.1,
 'attention_dropout_rate': 0.1}

encoder_config = tfm.nlp.encoders.EncoderConfig({
    'type':'bert',
    'bert': config_dict
})

encoder_config.get().as_dict()

{'vocab_size': 28996,
 'hidden_size': 768,
 'num_layers': 12,
 'num_attention_heads': 12,
 'hidden_activation': 'gelu',
 'intermediate_size': 3072,
 'dropout_rate': 0.1,
 'attention_dropout_rate': 0.1,
 'max_position_embeddings': 512,
 'type_vocab_size': 2,
 'initializer_range': 0.02,
 'embedding_size': None,
 'output_range': None,
 'return_all_encoder_outputs': False,
 'return_attention_scores': False,
 'norm_first': False}

Construct a classifier with `encoder_config`

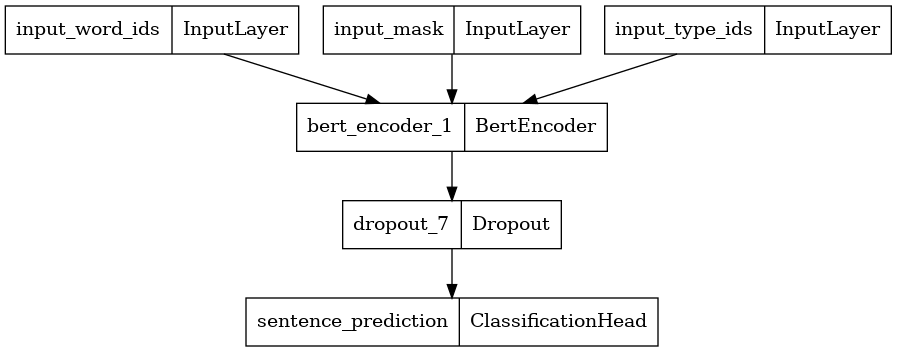

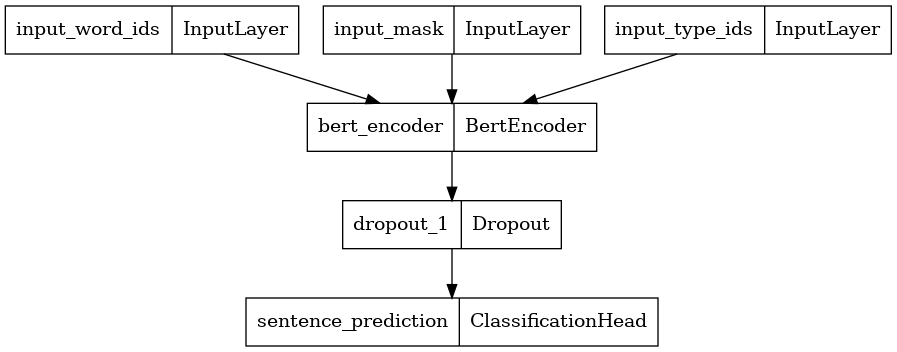

Here, we construct a new BERT Classifier with 2 classes and plot its model architecture. A BERT Classifier consists of a BERT encoder using the selected encoder config, a Dropout layer and a MLP classification head.

bert_encoder = tfm.nlp.encoders.build_encoder(encoder_config)
bert_classifier = tfm.nlp.models.BertClassifier(network=bert_encoder, num_classes=2)

tf.keras.utils.plot_model(bert_classifier)

2023-10-17 12:27:24.243086: W tensorflow/core/common_runtime/gpu/gpu_device.cc:2211] Cannot dlopen some GPU libraries. Please make sure the missing libraries mentioned above are installed properly if you would like to use GPU. Follow the guide at https://www.tensorflow.org/install/gpu for how to download and setup the required libraries for your platform.
Skipping registering GPU devices...

png

Load Pretrained Weights into the BERT Classifier

The provided pretrained checkpoint only contains weights for the BERT Encoder within the BERT Classifier. Weights for the Classification Head is still randomly initialized.

checkpoint = tf.train.Checkpoint(encoder=bert_encoder)
checkpoint.read(
    os.path.join(folder_bert, 'bert_model.ckpt')).expect_partial().assert_existing_objects_matched()

<tensorflow.python.checkpoint.checkpoint.CheckpointLoadStatus at 0x7f73f8418fd0>

Load ALBERT model pretrained checkpoints

# @title Download Checkpoint of the Selected Model { display-mode: "form", run: "auto" }
albert_model_display_name = 'ALBERT-xxlarge English'  # @param ['ALBERT-base English', 'ALBERT-large English', 'ALBERT-xlarge English', 'ALBERT-xxlarge English']

if albert_model_display_name == 'ALBERT-base English':
  !wget "https://storage.googleapis.com/tf_model_garden/nlp/albert/albert_base.tar.gz"
  !tar -xvf "albert_base.tar.gz"
elif albert_model_display_name == 'ALBERT-large English':
  !wget "https://storage.googleapis.com/tf_model_garden/nlp/albert/albert_large.tar.gz"
  !tar -xvf "albert_large.tar.gz"
elif albert_model_display_name == "ALBERT-xlarge English":
  !wget "https://storage.googleapis.com/tf_model_garden/nlp/albert/albert_xlarge.tar.gz"
  !tar -xvf "albert_xlarge.tar.gz"
elif albert_model_display_name == "ALBERT-xxlarge English":
  !wget "https://storage.googleapis.com/tf_model_garden/nlp/albert/albert_xxlarge.tar.gz"
  !tar -xvf "albert_xxlarge.tar.gz"

--2023-10-17 12:27:27--  https://storage.googleapis.com/tf_model_garden/nlp/albert/albert_xxlarge.tar.gz
Resolving storage.googleapis.com (storage.googleapis.com)... 172.253.114.207, 172.217.214.207, 142.251.6.207, ...
Connecting to storage.googleapis.com (storage.googleapis.com)|172.253.114.207|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 826059238 (788M) [application/octet-stream]
Saving to: ‘albert_xxlarge.tar.gz’

albert_xxlarge.tar. 100%[===================>] 787.79M   117MB/s    in 6.5s

2023-10-17 12:27:34 (122 MB/s) - ‘albert_xxlarge.tar.gz’ saved [826059238/826059238]

albert_xxlarge/
albert_xxlarge/bert_model.ckpt.index
albert_xxlarge/30k-clean.model
albert_xxlarge/30k-clean.vocab
albert_xxlarge/bert_model.ckpt.data-00000-of-00001
albert_xxlarge/params.yaml
albert_xxlarge/albert_config.json

# Lookup table of the directory name corresponding to each model checkpoint
folder_albert_dict = {
    'ALBERT-base English': 'albert_base',
    'ALBERT-large English': 'albert_large',
    'ALBERT-xlarge English': 'albert_xlarge',
    'ALBERT-xxlarge English': 'albert_xxlarge'
}

folder_albert = folder_albert_dict.get(albert_model_display_name)
folder_albert

'albert_xxlarge'

Construct ALBERT Model Using the New `params.yaml`

params.yaml can be used for training with the bundled trainer in addition to constructing the BERT encoder here.

config_file = os.path.join(folder_albert, "params.yaml")
config_dict = yaml.safe_load(tf.io.gfile.GFile(config_file).read())
config_dict

{'task': {'model': {'encoder': {'albert': {'attention_dropout_rate': 0.0,
     'dropout_rate': 0.0,
     'embedding_width': 128,
     'hidden_activation': 'gelu',
     'hidden_size': 4096,
     'initializer_range': 0.02,
     'intermediate_size': 16384,
     'max_position_embeddings': 512,
     'num_attention_heads': 64,
     'num_layers': 12,
     'type_vocab_size': 2,
     'vocab_size': 30000},
    'type': 'albert'} } } }

# Method 1: pass encoder config dict into EncoderConfig
encoder_config = tfm.nlp.encoders.EncoderConfig(config_dict["task"]["model"]["encoder"])
encoder_config.get().as_dict()

{'vocab_size': 30000,
 'embedding_width': 128,
 'hidden_size': 4096,
 'num_layers': 12,
 'num_attention_heads': 64,
 'hidden_activation': 'gelu',
 'intermediate_size': 16384,
 'dropout_rate': 0.0,
 'attention_dropout_rate': 0.0,
 'max_position_embeddings': 512,
 'type_vocab_size': 2,
 'initializer_range': 0.02}

# Method 2: use override_params_dict function to override default Encoder params
encoder_config = tfm.nlp.encoders.EncoderConfig()
tfm.hyperparams.override_params_dict(encoder_config, config_dict["task"]["model"]["encoder"], is_strict=True)
encoder_config.get().as_dict()

{'vocab_size': 30000,
 'embedding_width': 128,
 'hidden_size': 4096,
 'num_layers': 12,
 'num_attention_heads': 64,
 'hidden_activation': 'gelu',
 'intermediate_size': 16384,
 'dropout_rate': 0.0,
 'attention_dropout_rate': 0.0,
 'max_position_embeddings': 512,
 'type_vocab_size': 2,
 'initializer_range': 0.02}

Construct ALBERT Model Using the Old `albert_config.json`

albert_config_file = os.path.join(folder_albert, "albert_config.json")
config_dict = json.loads(tf.io.gfile.GFile(albert_config_file).read())
config_dict

{'hidden_size': 4096,
 'initializer_range': 0.02,
 'intermediate_size': 16384,
 'max_position_embeddings': 512,
 'num_attention_heads': 64,
 'type_vocab_size': 2,
 'vocab_size': 30000,
 'embedding_width': 128,
 'attention_dropout_rate': 0.0,
 'dropout_rate': 0.0,
 'num_layers': 12,
 'hidden_activation': 'gelu'}

encoder_config = tfm.nlp.encoders.EncoderConfig({
    'type':'albert',
    'albert': config_dict
})

encoder_config.get().as_dict()

{'vocab_size': 30000,
 'embedding_width': 128,
 'hidden_size': 4096,
 'num_layers': 12,
 'num_attention_heads': 64,
 'hidden_activation': 'gelu',
 'intermediate_size': 16384,
 'dropout_rate': 0.0,
 'attention_dropout_rate': 0.0,
 'max_position_embeddings': 512,
 'type_vocab_size': 2,
 'initializer_range': 0.02}

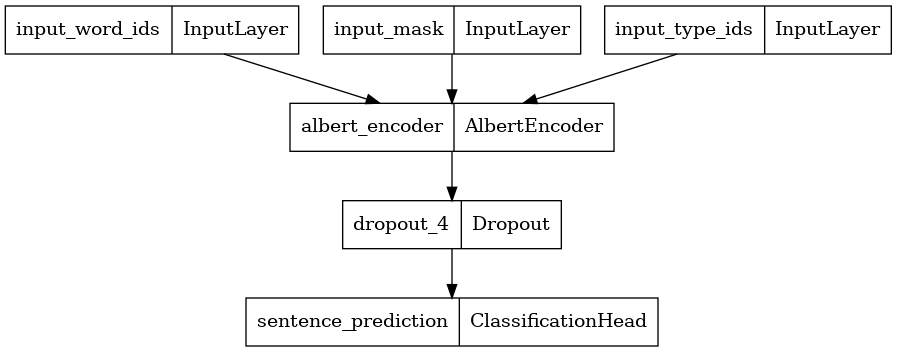

Construct a Classifier with `encoder_config`

albert_encoder = tfm.nlp.encoders.build_encoder(encoder_config)
albert_classifier = tfm.nlp.models.BertClassifier(network=albert_encoder, num_classes=2)

tf.keras.utils.plot_model(albert_classifier)

png

Load Pretrained Weights into the Classifier

The provided pretrained checkpoint only contains weights for the ALBERT Encoder within the ALBERT Classifier. Weights for the Classification Head is still randomly initialized.

checkpoint = tf.train.Checkpoint(encoder=albert_encoder)
checkpoint.read(
    os.path.join(folder_albert, 'bert_model.ckpt')).expect_partial().assert_existing_objects_matched()

<tensorflow.python.checkpoint.checkpoint.CheckpointLoadStatus at 0x7f73f8185fa0>

Load ELECTRA model pretrained checkpoints

# @title Download Checkpoint of the Selected Model { display-mode: "form", run: "auto" }
electra_model_display_name = 'ELECTRA-small English'  # @param ['ELECTRA-small English', 'ELECTRA-base English']

if electra_model_display_name == 'ELECTRA-small English':
  !wget "https://storage.googleapis.com/tf_model_garden/nlp/electra/small.tar.gz"
  !tar -xvf "small.tar.gz"
elif electra_model_display_name == 'ELECTRA-base English':
  !wget "https://storage.googleapis.com/tf_model_garden/nlp/electra/base.tar.gz"
  !tar -xvf "base.tar.gz"

--2023-10-17 12:27:45--  https://storage.googleapis.com/tf_model_garden/nlp/electra/small.tar.gz
Resolving storage.googleapis.com (storage.googleapis.com)... 172.253.114.207, 172.217.214.207, 142.251.6.207, ...
Connecting to storage.googleapis.com (storage.googleapis.com)|172.253.114.207|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 157951922 (151M) [application/octet-stream]
Saving to: ‘small.tar.gz’

small.tar.gz        100%[===================>] 150.63M   173MB/s    in 0.9s

2023-10-17 12:27:46 (173 MB/s) - ‘small.tar.gz’ saved [157951922/157951922]

small/
small/ckpt-1000000.data-00000-of-00001
small/params.yaml
small/checkpoint
small/ckpt-1000000.index

# Lookup table of the directory name corresponding to each model checkpoint
folder_electra_dict = {
    'ELECTRA-small English': 'small',
    'ELECTRA-base English': 'base'
}

folder_electra = folder_electra_dict.get(electra_model_display_name)
folder_electra

'small'

Construct BERT Model Using the `params.yaml`

params.yaml can be used for training with the bundled trainer in addition to constructing the BERT encoder here.

config_file = os.path.join(folder_electra, "params.yaml")
config_dict = yaml.safe_load(tf.io.gfile.GFile(config_file).read())
config_dict

{'model': {'cls_heads': [{'activation': 'tanh',
    'cls_token_idx': 0,
    'dropout_rate': 0.1,
    'inner_dim': 64,
    'name': 'next_sentence',
    'num_classes': 2}],
  'disallow_correct': False,
  'discriminator_encoder': {'type': 'bert',
   'bert': {'attention_dropout_rate': 0.1,
    'dropout_rate': 0.1,
    'embedding_size': 128,
    'hidden_activation': 'gelu',
    'hidden_size': 256,
    'initializer_range': 0.02,
    'intermediate_size': 1024,
    'max_position_embeddings': 512,
    'num_attention_heads': 4,
    'num_layers': 12,
    'type_vocab_size': 2,
    'vocab_size': 30522} },
  'discriminator_loss_weight': 50.0,
  'generator_encoder': {'type': 'bert',
   'bert': {'attention_dropout_rate': 0.1,
    'dropout_rate': 0.1,
    'embedding_size': 128,
    'hidden_activation': 'gelu',
    'hidden_size': 64,
    'initializer_range': 0.02,
    'intermediate_size': 256,
    'max_position_embeddings': 512,
    'num_attention_heads': 1,
    'num_layers': 12,
    'type_vocab_size': 2,
    'vocab_size': 30522} },
  'num_classes': 2,
  'num_masked_tokens': 76,
  'sequence_length': 512,
  'tie_embeddings': True} }

disc_encoder_config = tfm.nlp.encoders.EncoderConfig(
    config_dict['model']['discriminator_encoder']
)

disc_encoder_config.get().as_dict()

{'vocab_size': 30522,
 'hidden_size': 256,
 'num_layers': 12,
 'num_attention_heads': 4,
 'hidden_activation': 'gelu',
 'intermediate_size': 1024,
 'dropout_rate': 0.1,
 'attention_dropout_rate': 0.1,
 'max_position_embeddings': 512,
 'type_vocab_size': 2,
 'initializer_range': 0.02,
 'embedding_size': 128,
 'output_range': None,
 'return_all_encoder_outputs': False,
 'return_attention_scores': False,
 'norm_first': False}

Construct a Classifier with `encoder_config`

Here, we construct a Classifier with 2 classes and plot its model architecture. A Classifier consists of a ELECTRA discriminator encoder using the selected encoder config, a Dropout layer and a MLP classification head.

disc_encoder = tfm.nlp.encoders.build_encoder(disc_encoder_config)
elctra_dic_classifier = tfm.nlp.models.BertClassifier(network=disc_encoder, num_classes=2)
tf.keras.utils.plot_model(elctra_dic_classifier)

png

Load Pretrained Weights into the Classifier

The provided pretrained checkpoint contains weights for the entire ELECTRA model. We are only loading its discriminator (conveninently named as encoder) wights within the Classifier. Weights for the Classification Head is still randomly initialized.

checkpoint = tf.train.Checkpoint(encoder=disc_encoder)
checkpoint.read(
    tf.train.latest_checkpoint(os.path.join(folder_electra))
    ).expect_partial().assert_existing_objects_matched()

<tensorflow.python.checkpoint.checkpoint.CheckpointLoadStatus at 0x7f74dbe84f40>

Load LM Checkpoints using Model Garden

Install TF Model Garden package

Import necessary libraries

Load BERT model pretrained checkpoints

Select required BERT model

Construct BERT Model Using the New params.yaml

Construct BERT Model Using the Old bert_config.json

Construct a classifier with encoder_config

Load Pretrained Weights into the BERT Classifier

Load ALBERT model pretrained checkpoints

Construct ALBERT Model Using the New params.yaml

Construct ALBERT Model Using the Old albert_config.json

Construct a Classifier with encoder_config

Load Pretrained Weights into the Classifier

Load ELECTRA model pretrained checkpoints

Construct BERT Model Using the params.yaml

Construct a Classifier with encoder_config

Load Pretrained Weights into the Classifier

Construct BERT Model Using the New `params.yaml`

Construct BERT Model Using the Old `bert_config.json`

Construct a classifier with `encoder_config`

Construct ALBERT Model Using the New `params.yaml`

Construct ALBERT Model Using the Old `albert_config.json`

Construct a Classifier with `encoder_config`

Construct BERT Model Using the `params.yaml`

Construct a Classifier with `encoder_config`
