## Introduction

This example shows how to train a Categorical DQN (C51) agent on the Cartpole environment using the TF-Agents library.

Make sure you take a look through the DQN tutorial as a prerequisite. This tutorial will assume familiarity with the DQN tutorial; it will mainly focus on the differences between DQN and C51.

## Setup

If you haven't installed tf-agents yet, run:

`sudo apt-get update`

`sudo apt-get install -y xvfb ffmpeg freeglut3-dev`

`pip install 'imageio==2.4.0'`

`pip install pyvirtualdisplay`

`pip install tf-agents`

`pip install pyglet`

`pip install tf-keras`

```
import os
# Keep using keras-2 (tf-keras) rather than keras-3 (keras).
os.environ['TF_USE_LEGACY_KERAS'] = '1'
```

```
from __future__ import absolute_import
from __future__ import division
from __future__ import print_function
import base64
import imageio
import IPython
import matplotlib
import matplotlib.pyplot as plt
import PIL.Image
import pyvirtualdisplay
import tensorflow as tf
from tf_agents.agents.categorical_dqn import categorical_dqn_agent
from tf_agents.drivers import dynamic_step_driver
from tf_agents.environments import suite_gym
from tf_agents.environments import tf_py_environment
from tf_agents.eval import metric_utils
from tf_agents.metrics import tf_metrics
from tf_agents.networks import categorical_q_network
from tf_agents.policies import random_tf_policy
from tf_agents.replay_buffers import tf_uniform_replay_buffer
from tf_agents.trajectories import trajectory
from tf_agents.utils import common
# Set up a virtual display for rendering OpenAI gym environments.
display = pyvirtualdisplay.Display(visible=0, size=(1400, 900)).start()
```

2023-12-22 13:43:26.818929: E external/local_xla/xla/stream_executor/cuda/cuda_dnn.cc:9261] Unable to register cuDNN factory: Attempting to register factory for plugin cuDNN when one has already been registered 2023-12-22 13:43:26.818976: E external/local_xla/xla/stream_executor/cuda/cuda_fft.cc:607] Unable to register cuFFT factory: Attempting to register factory for plugin cuFFT when one has already been registered 2023-12-22 13:43:26.820570: E external/local_xla/xla/stream_executor/cuda/cuda_blas.cc:1515] Unable to register cuBLAS factory: Attempting to register factory for plugin cuBLAS when one has already been registered

## Hyperparameters

```
env_name = "CartPole-v1" # @param {type:"string"}
num_iterations = 15000 # @param {type:"integer"}
initial_collect_steps = 1000 # @param {type:"integer"}
collect_steps_per_iteration = 1 # @param {type:"integer"}
replay_buffer_capacity = 100000 # @param {type:"integer"}
fc_layer_params = (100,)
batch_size = 64 # @param {type:"integer"}
learning_rate = 1e-3 # @param {type:"number"}
gamma = 0.99
log_interval = 200 # @param {type:"integer"}
num_atoms = 51 # @param {type:"integer"}
min_q_value = -20 # @param {type:"integer"}
max_q_value = 20 # @param {type:"integer"}
n_step_update = 2 # @param {type:"integer"}
num_eval_episodes = 10 # @param {type:"integer"}
eval_interval = 1000 # @param {type:"integer"}
```

## Environment

Load the environment as before, with one for training and one for evaluation. Here we use CartPole-v1 (vs. CartPole-v0 in the DQN tutorial), which has a larger max reward of 500 rather than 200.

```
train_py_env = suite_gym.load(env_name)
eval_py_env = suite_gym.load(env_name)
train_env = tf_py_environment.TFPyEnvironment(train_py_env)
eval_env = tf_py_environment.TFPyEnvironment(eval_py_env)
```

## Agent

C51 is a Q-learning algorithm based on DQN. Like DQN, it can be used on any environment with a discrete action space.

The main difference between C51 and DQN is that rather than simply predicting the Q-value for each state-action pair, C51 predicts a histogram model for the probability distribution of the Q-value:

By learning the distribution rather than simply the expected value, the algorithm is able to stay more stable during training, leading to improved final performance. This is particularly true in situations with bimodal or even multimodal value distributions, where a single average does not provide an accurate picture.

In order to train on probability distributions rather than on values, C51 must perform some complex distributional computations in order to calculate its loss function. But don't worry, all of this is taken care of for you in TF-Agents!

To create a C51 Agent, we first need to create a `CategoricalQNetwork`

. The API of the `CategoricalQNetwork`

is the same as that of the `QNetwork`

, except that there is an additional argument `num_atoms`

. This represents the number of support points in our probability distribution estimates. (The above image includes 10 support points, each represented by a vertical blue bar.) As you can tell from the name, the default number of atoms is 51.

```
categorical_q_net = categorical_q_network.CategoricalQNetwork(
train_env.observation_spec(),
train_env.action_spec(),
num_atoms=num_atoms,
fc_layer_params=fc_layer_params)
```

We also need an `optimizer`

to train the network we just created, and a `train_step_counter`

variable to keep track of how many times the network was updated.

Note that one other significant difference from vanilla `DqnAgent`

is that we now need to specify `min_q_value`

and `max_q_value`

as arguments. These specify the most extreme values of the support (in other words, the most extreme of the 51 atoms on either side). Make sure to choose these appropriately for your particular environment. Here we use -20 and 20.

```
optimizer = tf.compat.v1.train.AdamOptimizer(learning_rate=learning_rate)
train_step_counter = tf.Variable(0)
agent = categorical_dqn_agent.CategoricalDqnAgent(
train_env.time_step_spec(),
train_env.action_spec(),
categorical_q_network=categorical_q_net,
optimizer=optimizer,
min_q_value=min_q_value,
max_q_value=max_q_value,
n_step_update=n_step_update,
td_errors_loss_fn=common.element_wise_squared_loss,
gamma=gamma,
train_step_counter=train_step_counter)
agent.initialize()
```

One last thing to note is that we also added an argument to use n-step updates with \(n\) = 2. In single-step Q-learning (\(n\) = 1), we only compute the error between the Q-values at the current time step and the next time step using the single-step return (based on the Bellman optimality equation). The single-step return is defined as:

\(G_t = R_{t + 1} + \gamma V(s_{t + 1})\)

where we define \(V(s) = \max_a{Q(s, a)}\).

N-step updates involve expanding the standard single-step return function \(n\) times:

\(G_t^n = R_{t + 1} + \gamma R_{t + 2} + \gamma^2 R_{t + 3} + \dots + \gamma^n V(s_{t + n})\)

N-step updates enable the agent to bootstrap from further in the future, and with the right value of \(n\), this often leads to faster learning.

Although C51 and n-step updates are often combined with prioritized replay to form the core of the Rainbow agent, we saw no measurable improvement from implementing prioritized replay. Moreover, we find that when combining our C51 agent with n-step updates alone, our agent performs as well as other Rainbow agents on the sample of Atari environments we've tested.

## Metrics and Evaluation

The most common metric used to evaluate a policy is the average return. The return is the sum of rewards obtained while running a policy in an environment for an episode, and we usually average this over a few episodes. We can compute the average return metric as follows.

```
def compute_avg_return(environment, policy, num_episodes=10):
total_return = 0.0
for _ in range(num_episodes):
time_step = environment.reset()
episode_return = 0.0
while not time_step.is_last():
action_step = policy.action(time_step)
time_step = environment.step(action_step.action)
episode_return += time_step.reward
total_return += episode_return
avg_return = total_return / num_episodes
return avg_return.numpy()[0]
random_policy = random_tf_policy.RandomTFPolicy(train_env.time_step_spec(),
train_env.action_spec())
compute_avg_return(eval_env, random_policy, num_eval_episodes)
# Please also see the metrics module for standard implementations of different
# metrics.
```

17.5

## Data Collection

As in the DQN tutorial, set up the replay buffer and the initial data collection with the random policy.

```
replay_buffer = tf_uniform_replay_buffer.TFUniformReplayBuffer(
data_spec=agent.collect_data_spec,
batch_size=train_env.batch_size,
max_length=replay_buffer_capacity)
def collect_step(environment, policy):
time_step = environment.current_time_step()
action_step = policy.action(time_step)
next_time_step = environment.step(action_step.action)
traj = trajectory.from_transition(time_step, action_step, next_time_step)
# Add trajectory to the replay buffer
replay_buffer.add_batch(traj)
for _ in range(initial_collect_steps):
collect_step(train_env, random_policy)
# This loop is so common in RL, that we provide standard implementations of
# these. For more details see the drivers module.
# Dataset generates trajectories with shape [BxTx...] where
# T = n_step_update + 1.
dataset = replay_buffer.as_dataset(
num_parallel_calls=3, sample_batch_size=batch_size,
num_steps=n_step_update + 1).prefetch(3)
iterator = iter(dataset)
```

WARNING:tensorflow:From /tmpfs/src/tf_docs_env/lib/python3.9/site-packages/tensorflow/python/autograph/impl/api.py:377: ReplayBuffer.get_next (from tf_agents.replay_buffers.replay_buffer) is deprecated and will be removed in a future version. Instructions for updating: Use `as_dataset(..., single_deterministic_pass=False) instead.

## Training the agent

The training loop involves both collecting data from the environment and optimizing the agent's networks. Along the way, we will occasionally evaluate the agent's policy to see how we are doing.

The following will take ~7 minutes to run.

```
try:
%%time
except:
pass
# (Optional) Optimize by wrapping some of the code in a graph using TF function.
agent.train = common.function(agent.train)
# Reset the train step
agent.train_step_counter.assign(0)
# Evaluate the agent's policy once before training.
avg_return = compute_avg_return(eval_env, agent.policy, num_eval_episodes)
returns = [avg_return]
for _ in range(num_iterations):
# Collect a few steps using collect_policy and save to the replay buffer.
for _ in range(collect_steps_per_iteration):
collect_step(train_env, agent.collect_policy)
# Sample a batch of data from the buffer and update the agent's network.
experience, unused_info = next(iterator)
train_loss = agent.train(experience)
step = agent.train_step_counter.numpy()
if step % log_interval == 0:
print('step = {0}: loss = {1}'.format(step, train_loss.loss))
if step % eval_interval == 0:
avg_return = compute_avg_return(eval_env, agent.policy, num_eval_episodes)
print('step = {0}: Average Return = {1:.2f}'.format(step, avg_return))
returns.append(avg_return)
```

WARNING:tensorflow:From /tmpfs/src/tf_docs_env/lib/python3.9/site-packages/tensorflow/python/util/dispatch.py:1260: calling foldr_v2 (from tensorflow.python.ops.functional_ops) with back_prop=False is deprecated and will be removed in a future version. Instructions for updating: back_prop=False is deprecated. Consider using tf.stop_gradient instead. Instead of: results = tf.foldr(fn, elems, back_prop=False) Use: results = tf.nest.map_structure(tf.stop_gradient, tf.foldr(fn, elems)) step = 200: loss = 3.1551308631896973 step = 400: loss = 1.9776920080184937 step = 600: loss = 2.0313377380371094 step = 800: loss = 2.140268564224243 step = 1000: loss = 1.8637709617614746 step = 1000: Average Return = 21.60 step = 1200: loss = 2.018684148788452 step = 1400: loss = 2.028679370880127 step = 1600: loss = 1.8634133338928223 step = 1800: loss = 1.8754947185516357 step = 2000: loss = 1.745985507965088 step = 2000: Average Return = 56.00 step = 2200: loss = 1.5698542594909668 step = 2400: loss = 1.7929306030273438 step = 2600: loss = 1.547203779220581 step = 2800: loss = 1.727510690689087 step = 3000: loss = 1.5279655456542969 step = 3000: Average Return = 119.50 step = 3200: loss = 1.435006022453308 step = 3400: loss = 1.6239800453186035 step = 3600: loss = 1.4933350086212158 step = 3800: loss = 1.2975274324417114 step = 4000: loss = 1.3096089363098145 step = 4000: Average Return = 164.50 step = 4200: loss = 1.1344375610351562 step = 4400: loss = 1.294950246810913 step = 4600: loss = 1.0622353553771973 step = 4800: loss = 1.1464000940322876 step = 5000: loss = 1.118766188621521 step = 5000: Average Return = 298.60 step = 5200: loss = 0.9980180859565735 step = 5400: loss = 0.9750803709030151 step = 5600: loss = 1.0527863502502441 step = 5800: loss = 0.814155101776123 step = 6000: loss = 0.9398177862167358 step = 6000: Average Return = 168.30 step = 6200: loss = 0.816051185131073 step = 6400: loss = 0.5023385286331177 step = 6600: loss = 0.8547714352607727 step = 6800: loss = 0.6475080251693726 step = 7000: loss = 0.7672930955886841 step = 7000: Average Return = 246.30 step = 7200: loss = 0.8614785075187683 step = 7400: loss = 0.8364779949188232 step = 7600: loss = 0.7153961062431335 step = 7800: loss = 0.6617223024368286 step = 8000: loss = 0.5945837497711182 step = 8000: Average Return = 293.20 step = 8200: loss = 0.6750502586364746 step = 8400: loss = 0.6500205993652344 step = 8600: loss = 0.5710954666137695 step = 8800: loss = 0.6286418437957764 step = 9000: loss = 0.8562765121459961 step = 9000: Average Return = 171.90 step = 9200: loss = 0.6939262747764587 step = 9400: loss = 0.5730515718460083 step = 9600: loss = 0.748070240020752 step = 9800: loss = 0.4880700707435608 step = 10000: loss = 0.538982629776001 step = 10000: Average Return = 194.90 step = 10200: loss = 0.5000917315483093 step = 10400: loss = 0.7124378681182861 step = 10600: loss = 0.561471164226532 step = 10800: loss = 0.5041010975837708 step = 11000: loss = 0.5765870809555054 step = 11000: Average Return = 388.50 step = 11200: loss = 0.6113135814666748 step = 11400: loss = 0.7821799516677856 step = 11600: loss = 0.6720255613327026 step = 11800: loss = 0.5615390539169312 step = 12000: loss = 0.5257908701896667 step = 12000: Average Return = 181.00 step = 12200: loss = 0.5562627911567688 step = 12400: loss = 0.6414334774017334 step = 12600: loss = 0.48060446977615356 step = 12800: loss = 0.4994790256023407 step = 13000: loss = 0.4291501045227051 step = 13000: Average Return = 209.00 step = 13200: loss = 0.5870636701583862 step = 13400: loss = 0.5512099862098694 step = 13600: loss = 0.5086218118667603 step = 13800: loss = 0.48604053258895874 step = 14000: loss = 0.378967821598053 step = 14000: Average Return = 272.00 step = 14200: loss = 0.5300026535987854 step = 14400: loss = 0.655825138092041 step = 14600: loss = 0.7569875717163086 step = 14800: loss = 0.3593035936355591 step = 15000: loss = 0.6760340929031372 step = 15000: Average Return = 338.00

## Visualization

### Plots

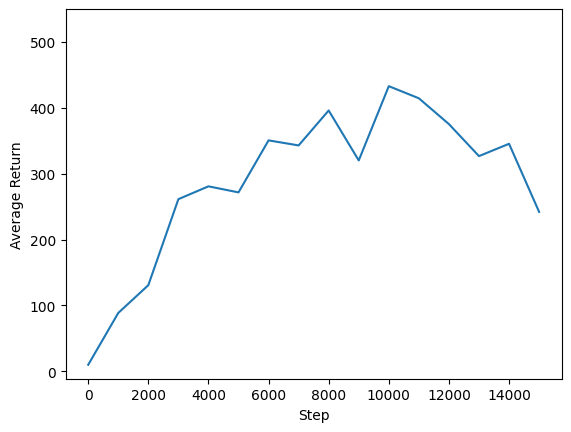

We can plot return vs global steps to see the performance of our agent. In `Cartpole-v1`

, the environment gives a reward of +1 for every time step the pole stays up, and since the maximum number of steps is 500, the maximum possible return is also 500.

```
steps = range(0, num_iterations + 1, eval_interval)
plt.plot(steps, returns)
plt.ylabel('Average Return')
plt.xlabel('Step')
plt.ylim(top=550)
```

(3.2550004005432136, 550.0)

### Videos

It is helpful to visualize the performance of an agent by rendering the environment at each step. Before we do that, let us first create a function to embed videos in this colab.

```
def embed_mp4(filename):
"""Embeds an mp4 file in the notebook."""
video = open(filename,'rb').read()
b64 = base64.b64encode(video)
tag = '''
<video width="640" height="480" controls>
<source src="data:video/mp4;base64,{0}" type="video/mp4">
Your browser does not support the video tag.
</video>'''.format(b64.decode())
return IPython.display.HTML(tag)
```

The following code visualizes the agent's policy for a few episodes:

```
num_episodes = 3
video_filename = 'imageio.mp4'
with imageio.get_writer(video_filename, fps=60) as video:
for _ in range(num_episodes):
time_step = eval_env.reset()
video.append_data(eval_py_env.render())
while not time_step.is_last():
action_step = agent.policy.action(time_step)
time_step = eval_env.step(action_step.action)
video.append_data(eval_py_env.render())
embed_mp4(video_filename)
```

WARNING:root:IMAGEIO FFMPEG_WRITER WARNING: input image is not divisible by macro_block_size=16, resizing from (400, 600) to (400, 608) to ensure video compatibility with most codecs and players. To prevent resizing, make your input image divisible by the macro_block_size or set the macro_block_size to None (risking incompatibility). You may also see a FFMPEG warning concerning speedloss due to data not being aligned. [swscaler @ 0x559353e49880] Warning: data is not aligned! This can lead to a speed loss

C51 tends to do slightly better than DQN on CartPole-v1, but the difference between the two agents becomes more and more significant in increasingly complex environments. For example, on the full Atari 2600 benchmark, C51 demonstrates a mean score improvement of 126% over DQN after normalizing with respect to a random agent. Additional improvements can be gained by including n-step updates.

For a deeper dive into the C51 algorithm, see A Distributional Perspective on Reinforcement Learning (2017).
