Visão geral

Este bloco de notas demonstrará como usar a camada de Normalização de Peso e como ela pode melhorar a convergência.

WeightNormalization

Uma Reparametrização Simples para Acelerar o Treinamento de Redes Neurais Profundas:

Tim Salimans, Diederik P. Kingma (2016)

Ao reparameterizar os pesos dessa forma, você melhora o condicionamento do problema de otimização e acelera a convergência da descida do gradiente estocástico. Nossa reparametrização é inspirada na normalização em lote, mas não introduz nenhuma dependência entre os exemplos em um minibatch. Isso significa que nosso método também pode ser aplicado com sucesso a modelos recorrentes, como LSTMs, e a aplicativos sensíveis a ruídos, como aprendizado por reforço profundo ou modelos generativos, para os quais a normalização em lote é menos adequada. Embora nosso método seja muito mais simples, ele ainda fornece muito da aceleração da normalização de lote completo. Além disso, a sobrecarga computacional do nosso método é menor, permitindo que mais etapas de otimização sejam realizadas no mesmo período de tempo.

https://arxiv.org/abs/1602.07868

Configurar

pip install -q -U tensorflow-addons

import tensorflow as tf
import tensorflow_addons as tfa

import numpy as np
from matplotlib import pyplot as plt

# Hyper Parameters
batch_size = 32
epochs = 10
num_classes=10

Modelos de construção

# Standard ConvNet
reg_model = tf.keras.Sequential([
    tf.keras.layers.Conv2D(6, 5, activation='relu'),
    tf.keras.layers.MaxPooling2D(2, 2),
    tf.keras.layers.Conv2D(16, 5, activation='relu'),
    tf.keras.layers.MaxPooling2D(2, 2),
    tf.keras.layers.Flatten(),
    tf.keras.layers.Dense(120, activation='relu'),
    tf.keras.layers.Dense(84, activation='relu'),
    tf.keras.layers.Dense(num_classes, activation='softmax'),
])

# WeightNorm ConvNet
wn_model = tf.keras.Sequential([
    tfa.layers.WeightNormalization(tf.keras.layers.Conv2D(6, 5, activation='relu')),
    tf.keras.layers.MaxPooling2D(2, 2),
    tfa.layers.WeightNormalization(tf.keras.layers.Conv2D(16, 5, activation='relu')),
    tf.keras.layers.MaxPooling2D(2, 2),
    tf.keras.layers.Flatten(),
    tfa.layers.WeightNormalization(tf.keras.layers.Dense(120, activation='relu')),
    tfa.layers.WeightNormalization(tf.keras.layers.Dense(84, activation='relu')),
    tfa.layers.WeightNormalization(tf.keras.layers.Dense(num_classes, activation='softmax')),
])

Carregar dados

(x_train, y_train), (x_test, y_test) = tf.keras.datasets.cifar10.load_data()

# Convert class vectors to binary class matrices.
y_train = tf.keras.utils.to_categorical(y_train, num_classes)
y_test = tf.keras.utils.to_categorical(y_test, num_classes)

x_train = x_train.astype('float32')
x_test = x_test.astype('float32')
x_train /= 255
x_test /= 255

Downloading data from https://www.cs.toronto.edu/~kriz/cifar-10-python.tar.gz
170500096/170498071 [==============================] - 11s 0us/step

Modelos de trem

reg_model.compile(optimizer='adam',
                  loss='categorical_crossentropy',
                  metrics=['accuracy'])

reg_history = reg_model.fit(x_train, y_train,
                            batch_size=batch_size,
                            epochs=epochs,
                            validation_data=(x_test, y_test),
                            shuffle=True)

Epoch 1/10
1563/1563 [==============================] - 9s 4ms/step - loss: 1.8336 - accuracy: 0.3253 - val_loss: 1.4039 - val_accuracy: 0.4957
Epoch 2/10
1563/1563 [==============================] - 5s 3ms/step - loss: 1.3773 - accuracy: 0.5039 - val_loss: 1.3419 - val_accuracy: 0.5309
Epoch 3/10
1563/1563 [==============================] - 5s 3ms/step - loss: 1.2510 - accuracy: 0.5497 - val_loss: 1.2108 - val_accuracy: 0.5710
Epoch 4/10
1563/1563 [==============================] - 5s 3ms/step - loss: 1.1606 - accuracy: 0.5858 - val_loss: 1.2134 - val_accuracy: 0.5687
Epoch 5/10
1563/1563 [==============================] - 5s 3ms/step - loss: 1.0971 - accuracy: 0.6100 - val_loss: 1.1534 - val_accuracy: 0.5880
Epoch 6/10
1563/1563 [==============================] - 5s 3ms/step - loss: 1.0420 - accuracy: 0.6296 - val_loss: 1.1944 - val_accuracy: 0.5865
Epoch 7/10
1563/1563 [==============================] - 5s 3ms/step - loss: 1.0014 - accuracy: 0.6445 - val_loss: 1.1386 - val_accuracy: 0.6012
Epoch 8/10
1563/1563 [==============================] - 5s 3ms/step - loss: 0.9550 - accuracy: 0.6623 - val_loss: 1.1659 - val_accuracy: 0.6020
Epoch 9/10
1563/1563 [==============================] - 5s 3ms/step - loss: 0.9196 - accuracy: 0.6737 - val_loss: 1.1539 - val_accuracy: 0.6027
Epoch 10/10
1563/1563 [==============================] - 5s 3ms/step - loss: 0.8768 - accuracy: 0.6889 - val_loss: 1.1509 - val_accuracy: 0.6029

wn_model.compile(optimizer='adam',
                 loss='categorical_crossentropy',
                 metrics=['accuracy'])

wn_history = wn_model.fit(x_train, y_train,
                          batch_size=batch_size,
                          epochs=epochs,
                          validation_data=(x_test, y_test),
                          shuffle=True)

Epoch 1/10
1563/1563 [==============================] - 14s 8ms/step - loss: 1.8195 - accuracy: 0.3319 - val_loss: 1.4563 - val_accuracy: 0.4721
Epoch 2/10
1563/1563 [==============================] - 10s 7ms/step - loss: 1.4049 - accuracy: 0.4937 - val_loss: 1.3051 - val_accuracy: 0.5301
Epoch 3/10
1563/1563 [==============================] - 10s 6ms/step - loss: 1.2669 - accuracy: 0.5461 - val_loss: 1.2858 - val_accuracy: 0.5425
Epoch 4/10
1563/1563 [==============================] - 10s 6ms/step - loss: 1.1622 - accuracy: 0.5868 - val_loss: 1.2278 - val_accuracy: 0.5587
Epoch 5/10
1563/1563 [==============================] - 10s 6ms/step - loss: 1.0782 - accuracy: 0.6175 - val_loss: 1.1755 - val_accuracy: 0.5825
Epoch 6/10
1563/1563 [==============================] - 10s 6ms/step - loss: 1.0280 - accuracy: 0.6383 - val_loss: 1.1772 - val_accuracy: 0.5827
Epoch 7/10
1563/1563 [==============================] - 10s 6ms/step - loss: 0.9705 - accuracy: 0.6527 - val_loss: 1.1542 - val_accuracy: 0.5895
Epoch 8/10
1563/1563 [==============================] - 10s 6ms/step - loss: 0.9291 - accuracy: 0.6695 - val_loss: 1.1680 - val_accuracy: 0.5924
Epoch 9/10
1563/1563 [==============================] - 10s 6ms/step - loss: 0.8837 - accuracy: 0.6884 - val_loss: 1.1302 - val_accuracy: 0.6039
Epoch 10/10
1563/1563 [==============================] - 10s 6ms/step - loss: 0.8437 - accuracy: 0.7029 - val_loss: 1.1593 - val_accuracy: 0.6018

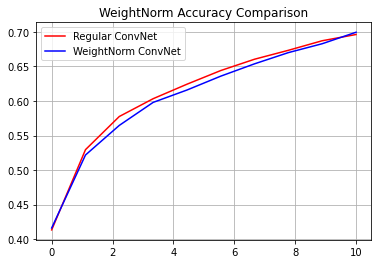

reg_accuracy = reg_history.history['accuracy']
wn_accuracy = wn_history.history['accuracy']

plt.plot(np.linspace(0, epochs,  epochs), reg_accuracy,
             color='red', label='Regular ConvNet')

plt.plot(np.linspace(0, epochs, epochs), wn_accuracy,
         color='blue', label='WeightNorm ConvNet')

plt.title('WeightNorm Accuracy Comparison')
plt.legend()
plt.grid(True)
plt.show()
