本 Colab 演示了如何使用基于生成对抗网络 (GAN) 的 TF-Hub 模块。该模块从 N 维向量（称为隐空间）映射到 RGB 图像。
本文提供了两个示例：
- 从隐空间映射到图像，以及
- 提供一个目标图像，利用梯度下降法找到生成与目标图像相似的图像的隐向量。
可选前提条件
- 熟悉低级 Tensorflow 概念。
- 维基百科上的生成对抗网络。
- 关于渐进式 GAN 的论文：Progressive Growing of GANs for Improved Quality, Stability, and Variation。
更多模型
您可以在这里找到 tfhub.dev 上当前托管的所有模型，您可以使用这些模型生成图像。
设置
# Install imageio for creating animations.pip -q install imageiopip -q install scikit-imagepip install git+https://github.com/tensorflow/docs
Imports and function definitions
from absl import logging
import imageio
import PIL.Image
import matplotlib.pyplot as plt
import numpy as np
import tensorflow as tf
tf.random.set_seed(0)
import tensorflow_hub as hub
from tensorflow_docs.vis import embed
import time
try:
from google.colab import files
except ImportError:
pass
from IPython import display
from skimage import transform
# We could retrieve this value from module.get_input_shapes() if we didn't know
# beforehand which module we will be using.
latent_dim = 512
# Interpolates between two vectors that are non-zero and don't both lie on a
# line going through origin. First normalizes v2 to have the same norm as v1.
# Then interpolates between the two vectors on the hypersphere.
def interpolate_hypersphere(v1, v2, num_steps):
v1_norm = tf.norm(v1)
v2_norm = tf.norm(v2)
v2_normalized = v2 * (v1_norm / v2_norm)
vectors = []
for step in range(num_steps):
interpolated = v1 + (v2_normalized - v1) * step / (num_steps - 1)
interpolated_norm = tf.norm(interpolated)
interpolated_normalized = interpolated * (v1_norm / interpolated_norm)
vectors.append(interpolated_normalized)
return tf.stack(vectors)
# Simple way to display an image.
def display_image(image):
image = tf.constant(image)
image = tf.image.convert_image_dtype(image, tf.uint8)
return PIL.Image.fromarray(image.numpy())
# Given a set of images, show an animation.
def animate(images):
images = np.array(images)
converted_images = np.clip(images * 255, 0, 255).astype(np.uint8)
imageio.mimsave('./animation.gif', converted_images)
return embed.embed_file('./animation.gif')
logging.set_verbosity(logging.ERROR)
2023-11-07 18:59:27.352652: E external/local_xla/xla/stream_executor/cuda/cuda_dnn.cc:9261] Unable to register cuDNN factory: Attempting to register factory for plugin cuDNN when one has already been registered 2023-11-07 18:59:27.352699: E external/local_xla/xla/stream_executor/cuda/cuda_fft.cc:607] Unable to register cuFFT factory: Attempting to register factory for plugin cuFFT when one has already been registered 2023-11-07 18:59:27.354507: E external/local_xla/xla/stream_executor/cuda/cuda_blas.cc:1515] Unable to register cuBLAS factory: Attempting to register factory for plugin cuBLAS when one has already been registered
隐空间插值法
随机向量
两个随机初始化向量之间的隐空间插值。我们将使用包含预训练渐进式 GAN 的 TF-Hub 模块 progan-128。
progan = hub.load("https://tfhub.dev/google/progan-128/1").signatures['default']
def interpolate_between_vectors():
v1 = tf.random.normal([latent_dim])
v2 = tf.random.normal([latent_dim])
# Creates a tensor with 25 steps of interpolation between v1 and v2.
vectors = interpolate_hypersphere(v1, v2, 50)
# Uses module to generate images from the latent space.
interpolated_images = progan(vectors)['default']
return interpolated_images
interpolated_images = interpolate_between_vectors()
animate(interpolated_images)
查找隐空间中的最近向量
确定目标图像。例如，使用从模块生成的图像或上传自己的图像。
image_from_module_space = True # @param { isTemplate:true, type:"boolean" }
def get_module_space_image():
vector = tf.random.normal([1, latent_dim])
images = progan(vector)['default'][0]
return images
def upload_image():
uploaded = files.upload()
image = imageio.imread(uploaded[list(uploaded.keys())[0]])
return transform.resize(image, [128, 128])
if image_from_module_space:
target_image = get_module_space_image()
else:
target_image = upload_image()
display_image(target_image)
定义目标图像与隐空间变量生成的图像之后，我们可以利用梯度下降法找到最大限度减少损失的变量值。
tf.random.set_seed(42)
initial_vector = tf.random.normal([1, latent_dim])
display_image(progan(initial_vector)['default'][0])
def find_closest_latent_vector(initial_vector, num_optimization_steps,
steps_per_image):
images = []
losses = []
vector = tf.Variable(initial_vector)
optimizer = tf.optimizers.Adam(learning_rate=0.01)
loss_fn = tf.losses.MeanAbsoluteError(reduction="sum")
for step in range(num_optimization_steps):
if (step % 100)==0:
print()
print('.', end='')
with tf.GradientTape() as tape:
image = progan(vector.read_value())['default'][0]
if (step % steps_per_image) == 0:
images.append(image.numpy())
target_image_difference = loss_fn(image, target_image[:,:,:3])
# The latent vectors were sampled from a normal distribution. We can get
# more realistic images if we regularize the length of the latent vector to
# the average length of vector from this distribution.
regularizer = tf.abs(tf.norm(vector) - np.sqrt(latent_dim))
loss = target_image_difference + regularizer
losses.append(loss.numpy())
grads = tape.gradient(loss, [vector])
optimizer.apply_gradients(zip(grads, [vector]))
return images, losses
num_optimization_steps=200
steps_per_image=5
images, loss = find_closest_latent_vector(initial_vector, num_optimization_steps, steps_per_image)
. WARNING: All log messages before absl::InitializeLog() is called are written to STDERR I0000 00:00:1699383604.217769 80180 device_compiler.h:186] Compiled cluster using XLA! This line is logged at most once for the lifetime of the process. ..... ..... ..... ..... ..... ..... ..... ... ..... ..... ..... .... ..... ..... ..... .... ..... .... ..... ..... .... ..... ..... ..... ..... ..... ..... ..... ..... ..... ..... ..... ..... ..... ..... ..... ..... .... .... ..... .... ...

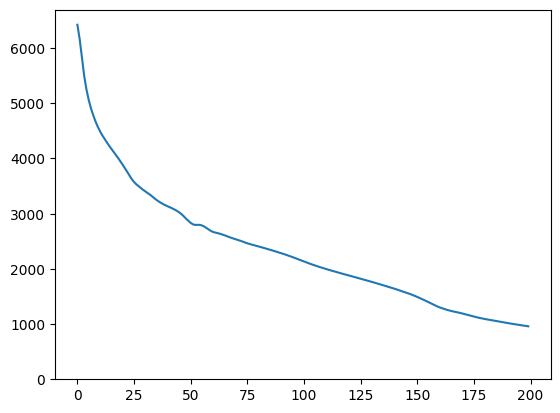

plt.plot(loss)
plt.ylim([0,max(plt.ylim())])
(0.0, 6696.204772949219)
animate(np.stack(images))
将结果与目标进行对比：
display_image(np.concatenate([images[-1], target_image], axis=1))
试运行上述示例
如果图像来自模块空间，则下降很快且会收敛到合理的样本。如果尝试下降到不是来自模块空间的图像，则只有当图像相当接近训练图像的空间时，下降才会收敛。
如何使其更快速地下降并变成更真实的图像？您可以尝试：
- 对图像差异使用不同的损失，例如二次方程，
- 对隐向量使用不同的正则化器，
- 在多次运行中从随机向量初始化，
- 等等。
