ملخص
سيوضح هذا الكمبيوتر الدفتري كيفية استخدام طبقة تسوية الوزن وكيف يمكنها تحسين التقارب.
الوزن: التطبيع
إصلاح بسيط للمعاملات لتسريع تدريب الشبكات العصبية العميقة:
تيم ساليمانز ، ديدريك ب.كينجما (2016)
من خلال إعادة معاملات الأوزان بهذه الطريقة ، يمكنك تحسين تكييف مشكلة التحسين وتسريع تقارب نزول التدرج العشوائي. تم استلهام عملية إعادة المعاملات الخاصة بنا من تسوية الدُفعات ولكنها لا تقدم أي تبعيات بين الأمثلة الموجودة في الدفعة الصغيرة. هذا يعني أنه يمكن أيضًا تطبيق طريقتنا بنجاح على النماذج المتكررة مثل LSTMs والتطبيقات الحساسة للضوضاء مثل التعلم المعزز العميق أو النماذج التوليدية ، والتي يكون تطبيع الدُفعات أقل ملاءمة لها. على الرغم من أن طريقتنا أبسط بكثير ، إلا أنها لا تزال توفر الكثير من تسريع تطبيع الدُفعات الكاملة. بالإضافة إلى ذلك ، فإن النفقات الحسابية لطريقتنا أقل ، مما يسمح باتخاذ المزيد من خطوات التحسين في نفس الوقت.
اقامة
pip install -q -U tensorflow-addons
import tensorflow as tf
import tensorflow_addons as tfa
import numpy as np
from matplotlib import pyplot as plt
# Hyper Parameters
batch_size = 32
epochs = 10
num_classes=10
بناء النماذج
# Standard ConvNet
reg_model = tf.keras.Sequential([
tf.keras.layers.Conv2D(6, 5, activation='relu'),
tf.keras.layers.MaxPooling2D(2, 2),
tf.keras.layers.Conv2D(16, 5, activation='relu'),
tf.keras.layers.MaxPooling2D(2, 2),
tf.keras.layers.Flatten(),
tf.keras.layers.Dense(120, activation='relu'),
tf.keras.layers.Dense(84, activation='relu'),
tf.keras.layers.Dense(num_classes, activation='softmax'),
])
# WeightNorm ConvNet
wn_model = tf.keras.Sequential([
tfa.layers.WeightNormalization(tf.keras.layers.Conv2D(6, 5, activation='relu')),
tf.keras.layers.MaxPooling2D(2, 2),
tfa.layers.WeightNormalization(tf.keras.layers.Conv2D(16, 5, activation='relu')),
tf.keras.layers.MaxPooling2D(2, 2),
tf.keras.layers.Flatten(),
tfa.layers.WeightNormalization(tf.keras.layers.Dense(120, activation='relu')),
tfa.layers.WeightNormalization(tf.keras.layers.Dense(84, activation='relu')),
tfa.layers.WeightNormalization(tf.keras.layers.Dense(num_classes, activation='softmax')),
])
تحميل البيانات
(x_train, y_train), (x_test, y_test) = tf.keras.datasets.cifar10.load_data()
# Convert class vectors to binary class matrices.
y_train = tf.keras.utils.to_categorical(y_train, num_classes)
y_test = tf.keras.utils.to_categorical(y_test, num_classes)
x_train = x_train.astype('float32')
x_test = x_test.astype('float32')
x_train /= 255
x_test /= 255
Downloading data from https://www.cs.toronto.edu/~kriz/cifar-10-python.tar.gz 170500096/170498071 [==============================] - 11s 0us/step
نماذج القطارات
reg_model.compile(optimizer='adam',
loss='categorical_crossentropy',
metrics=['accuracy'])
reg_history = reg_model.fit(x_train, y_train,
batch_size=batch_size,
epochs=epochs,
validation_data=(x_test, y_test),
shuffle=True)
Epoch 1/10 1563/1563 [==============================] - 9s 4ms/step - loss: 1.8336 - accuracy: 0.3253 - val_loss: 1.4039 - val_accuracy: 0.4957 Epoch 2/10 1563/1563 [==============================] - 5s 3ms/step - loss: 1.3773 - accuracy: 0.5039 - val_loss: 1.3419 - val_accuracy: 0.5309 Epoch 3/10 1563/1563 [==============================] - 5s 3ms/step - loss: 1.2510 - accuracy: 0.5497 - val_loss: 1.2108 - val_accuracy: 0.5710 Epoch 4/10 1563/1563 [==============================] - 5s 3ms/step - loss: 1.1606 - accuracy: 0.5858 - val_loss: 1.2134 - val_accuracy: 0.5687 Epoch 5/10 1563/1563 [==============================] - 5s 3ms/step - loss: 1.0971 - accuracy: 0.6100 - val_loss: 1.1534 - val_accuracy: 0.5880 Epoch 6/10 1563/1563 [==============================] - 5s 3ms/step - loss: 1.0420 - accuracy: 0.6296 - val_loss: 1.1944 - val_accuracy: 0.5865 Epoch 7/10 1563/1563 [==============================] - 5s 3ms/step - loss: 1.0014 - accuracy: 0.6445 - val_loss: 1.1386 - val_accuracy: 0.6012 Epoch 8/10 1563/1563 [==============================] - 5s 3ms/step - loss: 0.9550 - accuracy: 0.6623 - val_loss: 1.1659 - val_accuracy: 0.6020 Epoch 9/10 1563/1563 [==============================] - 5s 3ms/step - loss: 0.9196 - accuracy: 0.6737 - val_loss: 1.1539 - val_accuracy: 0.6027 Epoch 10/10 1563/1563 [==============================] - 5s 3ms/step - loss: 0.8768 - accuracy: 0.6889 - val_loss: 1.1509 - val_accuracy: 0.6029
wn_model.compile(optimizer='adam',
loss='categorical_crossentropy',
metrics=['accuracy'])
wn_history = wn_model.fit(x_train, y_train,
batch_size=batch_size,
epochs=epochs,
validation_data=(x_test, y_test),
shuffle=True)
Epoch 1/10 1563/1563 [==============================] - 14s 8ms/step - loss: 1.8195 - accuracy: 0.3319 - val_loss: 1.4563 - val_accuracy: 0.4721 Epoch 2/10 1563/1563 [==============================] - 10s 7ms/step - loss: 1.4049 - accuracy: 0.4937 - val_loss: 1.3051 - val_accuracy: 0.5301 Epoch 3/10 1563/1563 [==============================] - 10s 6ms/step - loss: 1.2669 - accuracy: 0.5461 - val_loss: 1.2858 - val_accuracy: 0.5425 Epoch 4/10 1563/1563 [==============================] - 10s 6ms/step - loss: 1.1622 - accuracy: 0.5868 - val_loss: 1.2278 - val_accuracy: 0.5587 Epoch 5/10 1563/1563 [==============================] - 10s 6ms/step - loss: 1.0782 - accuracy: 0.6175 - val_loss: 1.1755 - val_accuracy: 0.5825 Epoch 6/10 1563/1563 [==============================] - 10s 6ms/step - loss: 1.0280 - accuracy: 0.6383 - val_loss: 1.1772 - val_accuracy: 0.5827 Epoch 7/10 1563/1563 [==============================] - 10s 6ms/step - loss: 0.9705 - accuracy: 0.6527 - val_loss: 1.1542 - val_accuracy: 0.5895 Epoch 8/10 1563/1563 [==============================] - 10s 6ms/step - loss: 0.9291 - accuracy: 0.6695 - val_loss: 1.1680 - val_accuracy: 0.5924 Epoch 9/10 1563/1563 [==============================] - 10s 6ms/step - loss: 0.8837 - accuracy: 0.6884 - val_loss: 1.1302 - val_accuracy: 0.6039 Epoch 10/10 1563/1563 [==============================] - 10s 6ms/step - loss: 0.8437 - accuracy: 0.7029 - val_loss: 1.1593 - val_accuracy: 0.6018

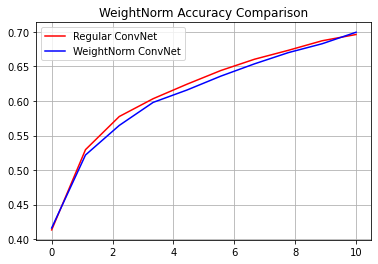

reg_accuracy = reg_history.history['accuracy']
wn_accuracy = wn_history.history['accuracy']
plt.plot(np.linspace(0, epochs, epochs), reg_accuracy,
color='red', label='Regular ConvNet')
plt.plot(np.linspace(0, epochs, epochs), wn_accuracy,
color='blue', label='WeightNorm ConvNet')
plt.title('WeightNorm Accuracy Comparison')
plt.legend()
plt.grid(True)
plt.show()
