Tensorflow Model Analysis Frequently Asked Questions

General

Is an EvalSavedModel still required?

Previously TFMA required all metrics to be stored within a tensorflow graph using a special EvalSavedModel. Now, metrics can be computed outside of the TF graph using beam.CombineFn implementations.

Some of the main differences are:

  • An EvalSavedModel requires a special export from the trainer whereas a serving model can be used without any changes required to the training code.
  • When an EvalSavedModel is used, any metrics added at training time are automatically available at evaluation time. Without an EvalSavedModel these metrics must be re-added.
    • The exception to this rule is if a keras model is used the metrics can also be added automatically because keras saves the metric information along side of the saved model.

Can TFMA work with both in-graph metrics and external metrics?

TFMA allows a hybrid approach to be used where some metrics can be computed in-graph where as others can be computed outside. If you currently have an EvalSavedModel then you can continue to use it.

There are two cases:

  1. Use TFMA EvalSavedModel for both feature extraction and metric computations but also add additional combiner-based metrics. In this case you would get all the in-graph metrics from the EvalSavedModel along with any additional metrics from the combiner-based that might not have been previously supported.
  2. Use TFMA EvalSavedModel for feature/prediction extraction but use combiner-based metrics for all metrics computations. This mode is useful if there are feature transformations present in the EvalSavedModel that you would like to use for slicing, but prefer to perform all metric computations outside the graph.

Setup

What model types are supported?

TFMA supports keras models, models based on generic TF2 signature APIs, as well TF estimator based models (although depending on the use case the estimator based models may require an EvalSavedModel to be used).

See get_started guide for the full list of model types supported and any restrictions.

How do I setup TFMA to work with a native keras based model?

The following is an example config for a keras model based on the following assumptions:

  • Saved model is for serving and uses the signature name serving_default (this can be changed using model_specs[0].signature_name).
  • Built in metrics from model.compile(...) should be evaluated (this can be disabled via options.include_default_metric within the tfma.EvalConfig).
from google.protobuf import text_format

config = text_format.Parse("""
  model_specs {
    label_key: "<label-key>"
    example_weight_key: "<example-weight-key>"
  }
  metrics_specs {
    # Add metrics here. For example:
    #  metrics { class_name: "ConfusionMatrixPlot" }
    #  metrics { class_name: "CalibrationPlot" }
  }
  slicing_specs {}
""", tfma.EvalConfig())

See metrics for more information about other types of metrics that can be configured.

How do I setup TFMA to work with a generic TF2 signatures based model?

The following is an example config for a generic TF2 model. Below, signature_name is the name of the specific signature that should be used for evaluation.

from google.protobuf import text_format

config = text_format.Parse("""
  model_specs {
    signature_name: "<signature-name>"
    label_key: "<label-key>"
    example_weight_key: "<example-weight-key>"
  }
  metrics_specs {
    # Add metrics here. For example:
    #  metrics { class_name: "BinaryCrossentropy" }
    #  metrics { class_name: "ConfusionMatrixPlot" }
    #  metrics { class_name: "CalibrationPlot" }
  }
  slicing_specs {}
""", tfma.EvalConfig())

See metrics for more information about other types of metrics that can be configured.

How do I setup TFMA to work with an estimator based model?

In this case there are three choices.

Option1: Use Serving Model

If this option is used then any metrics added during training will NOT be included in the evaluation.

The following is an example config assuming serving_default is the signature name used:

from google.protobuf import text_format

config = text_format.Parse("""
  model_specs {
    label_key: "<label-key>"
    example_weight_key: "<example-weight-key>"
  }
  metrics_specs {
    # Add metrics here.
  }
  slicing_specs {}
""", tfma.EvalConfig())

See metrics for more information about other types of metrics that can be configured.

Option2: Use EvalSavedModel along with additional combiner-based metrics

In this case, use EvalSavedModel for both feature / prediction extraction and evaluation and also add additional combiner based metrics.

The following is an example config:

from google.protobuf import text_format

config = text_format.Parse("""
  model_specs {
    signature_name: "eval"
  }
  metrics_specs {
    # Add metrics here.
  }
  slicing_specs {}
""", tfma.EvalConfig())

See metrics for more information about other types of metrics that can be configured and EvalSavedModel for more information about setting up the EvalSavedModel.

Option3: Use EvalSavedModel Model only for Feature / Prediction Extraction

Similar to option(2), but only use EvalSavedModel for feature / prediction extraction. This option is useful if only external metrics are desired, but there are feature transformations that you would like to slice on. Similar to option (1) any metrics added during training will NOT be included in the evaluation.

In this case the config is the same as above only include_default_metrics is disabled.

from google.protobuf import text_format

config = text_format.Parse("""
  model_specs {
    signature_name: "eval"
  }
  metrics_specs {
    # Add metrics here.
  }
  slicing_specs {}
  options {
    include_default_metrics { value: false }
  }
""", tfma.EvalConfig())

See metrics for more information about other types of metrics that can be configured and EvalSavedModel for more information about setting up the EvalSavedModel.

How do I setup TFMA to work with a keras model-to-estimator based model?

The keras model_to_estimator setup is similar to the estimator confiugration. However there are a few differences specific to how model to estimator works. In particular, the model-to-esimtator returns its outputs in the form of a dict where the dict key is the name of the last output layer in the associated keras model (if no name is provided, keras will choose a default name for you such as dense_1 or output_1). From a TFMA perspective, this behavior is similar to what would be output for a multi-output model even though the model to estimator may only be for a single model. To account for this difference, an additional step is required to setup the output name. However, the same three options apply as estimator.

The following is an example of the changes required to an estimator based config:

from google.protobuf import text_format

config = text_format.Parse("""
  ... as for estimator ...
  metrics_specs {
    output_names: ["<keras-output-layer>"]
    # Add metrics here.
  }
  ... as for estimator ...
""", tfma.EvalConfig())

How do I setup TFMA to work with pre-calculated (i.e. model-agnostic) predictions? (TFRecord and tf.Example)

In order to configure TFMA to work with pre-calculated predictions, the default tfma.PredictExtractor must be disabled and the tfma.InputExtractor must be configured to parse the predictions along with the other input features. This is accomplished by configuring a tfma.ModelSpec with the name of the feature key used for the predictions alongside of the labels and weights.

The following is an example setup:

from google.protobuf import text_format

config = text_format.Parse("""
  model_specs {
    prediction_key: "<prediction-key>"
    label_key: "<label-key>"
    example_weight_key: "<example-weight-key>"
  }
  metrics_specs {
    # Add metrics here.
  }
  slicing_specs {}
""", tfma.EvalConfig())

See metrics for more information about metrics that can be configured.

Note that altough a tfma.ModelSpec is being configured a model is not actually being used (i.e. there is no tfma.EvalSharedModel). The call to run model analysis might look as follows:

eval_result = tfma.run_model_analysis(
    eval_config=eval_config,
    # This assumes your data is a TFRecords file containing records in the
    # tf.train.Example format.
    data_location="/path/to/file/containing/tfrecords",
    output_path="/path/for/metrics_for_slice_proto")

How do I setup TFMA to work with pre-calculated (i.e. model-agnostic) predictions? (pd.DataFrame)

For small datasets that can fit in memory, an alternative to a TFRecord is a pandas.DataFrames. TFMA can operate on pandas.DataFrames using the tfma.analyze_raw_data API. For an explanation of tfma.MetricsSpec and tfma.SlicingSpec, see the setup guide. See metrics for more information about metrics that can be configured.

The following is an example setup:

# Run in a Jupyter Notebook.

df_data = ...  # your pd.DataFrame

eval_config = text_format.Parse("""
  model_specs {
    label_key: 'label'
    prediction_key: 'prediction'
  }
  metrics_specs {
    metrics { class_name: "AUC" }
    metrics { class_name: "ConfusionMatrixPlot" }
  }
  slicing_specs {}
  slicing_specs {
    feature_keys: 'language'
  }
""", config.EvalConfig())

eval_result = tfma.analyze_raw_data(df_data, eval_config)

tfma.view.render_slicing_metrics(eval_result)

Metrics

What types of metrics are supported?

TFMA supports a wide variety of metrics including:

Are metrics from multi-output models supported?

Yes. See metrics guide for more details.

Are metrics from multiple-models supported?

Yes. See metrics guide for more details.

Can the metric settings (name, etc) be customized?

Yes. Metrics settings can be customized (e.g. setting specific thresholds, etc) by adding config settings to the metric configuration. See metrics guide has more details.

Are custom metrics supported?

Yes. Either by writing a custom tf.keras.metrics.Metric implementation or by writing a custom beam.CombineFn implementation. The metrics guide has more details.

What types of metrics are not supported?

As long as your metric can be calculated using a beam.CombineFn, there are no restrictions on the types of metrics that can be computed based on tfma.metrics.Metric. If working with a metric derived from tf.keras.metrics.Metric then the following criteria must be satisfied:

  • It should be possible to compute sufficient statistics for the metric on each example independently, then combine these sufficient statistics by adding them across all the examples, and determine the metric value solely from these sufficient statistics.
  • For example, for accuracy the sufficient statistics are "total correct" and "total examples". It’s possible to compute these two numbers for individual examples, and add them up for a group of examples to get the right values for those examples. The final accuracy can be computed used "total correct / total examples".

Add-ons

Can I use TFMA to evaluate fairness or bias in my model?

TFMA includes a FairnessIndicators add-on that provides post-export metrics for evaluating the effects of unintended bias in classification models.

Customization

What if I need more customization?

TFMA is very flexibile and allows you to customize almost all parts of the pipeline using custom Extractors, Evaluators, and/or Writers. These abstrations are discusssed in more detail in the architecture document.

Troubleshooting, debugging, and getting help

Why don't MultiClassConfusionMatrix metrics match binarized ConfusionMatrix metrics

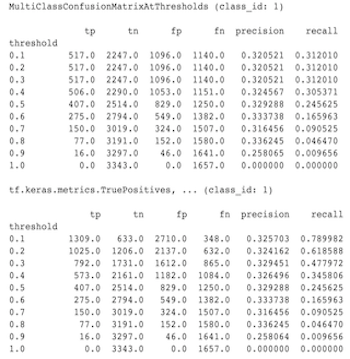

These are actually different calculations. Binarization performs a one-vs-rest comparison for each class ID independently (i.e. the prediction for each class is compared separately against the thresholds provided). In this case it is possible for two or more classes to all indicate that they matched the prediction because their predicted value was greater than the threshold (this will be even more apparant at lower thresholds). In the case of the multiclass confusion matrix, there is still only one true predicted value and it either matches the actual value or it doesn't. The threshold is only used to force a prediction to match no class if it is less than the threshold. The higher the threshold the harder for a binarized class's prediction to match. Likewise the lower the threshold the easier it is for a binarized class's predictions to match. The means that at thresholds > 0.5 the binarized values and the multiclass matrix values will be closer aligned and at thresholds < 0.5 they will be farther apart. For these to align we would need to double count TP, etc which cause the multiclass table to be out of alignment. The following is an example of observed differences between MultiClassConfusionMatrixAtThresholds and the corresponding counts from binarization.

MultiClassConfusionMatrixAtThresholds vs Binarized

Why do my precision@1 and recall@1 metrics have the same value?

At a top k value of 1 precision and recall are the same thing. Precision is equal to TP / (TP + FP) and recall is equal to TP / (TP + FN). The top prediction is always positive and will either match or not match the label. In other words, with N examples, TP + FP = N. However, if the label doesn't match the top prediction, then this also implies a non-top k prediction was matched and with top k set to 1, all non-top 1 predictions will be 0. This implies FN must be (N - TP) or N = TP + FN. The end result is precision@1 = TP / N = recall@1. Note that this only applies when there is a single label per example, not for multi-label.

Why do I get an error about prediction key not found?

Some model's output their prediction in the form of a dictionary. For example, a TF estimator for binary classification problem outputs a dictionary containing probabilities, class_ids, etc. In most cases TFMA has defaults for finding commomly used key names such as predictions, probabilities, etc. However, if your model is very customized it may output keys under names not known by TFMA. In theses cases a prediciton_key setting must be added to the tfma.ModelSpec to identify the name of the key the output is stored under.
