TensorFlow Serving으로 TensorFlow 모델 학습 및 제공

이 가이드 는 운동화 및 셔츠와 같은 의류 이미지 를 분류하도록 신경망 모델을 학습 시키고 학습 된 모델을 저장 한 다음 TensorFlow Serving으로 제공 합니다. 초점은 TensorFlow의 모델링 및 학습이 아니라 TensorFlow Serving에 있습니다. 따라서 모델링 및 학습에 초점을 맞춘 완전한 예는 기본 분류 예를 참조하세요.

이 가이드는 TensorFlow에서 모델을 빌드하고 학습시키는 데 고급 API 인 tf.keras를 사용합니다.

import sys

# Confirm that we're using Python 3
assert sys.version_info.major is 3, 'Oops, not running Python 3. Use Runtime > Change runtime type'
# TensorFlow and tf.keras
print("Installing dependencies for Colab environment")
!pip install -Uq grpcio==1.26.0

import tensorflow as tf
from tensorflow import keras

# Helper libraries
import numpy as np
import matplotlib.pyplot as plt
import os
import subprocess

print('TensorFlow version: {}'.format(tf.__version__))

모델 생성

Fashion MNIST 데이터 세트 가져 오기

이 가이드는 10 개 카테고리에 70,000 개의 회색조 이미지가 포함 된 Fashion MNIST 데이터 세트를 사용합니다. 이미지는 다음과 같이 저해상도 (28 x 28 픽셀)의 개별 의류 품목을 보여줍니다.

패션 MNIST 스프라이트
그림 1. Fashion-MNIST 샘플 (Zalando, MIT 라이센스).

Fashion MNIST는 컴퓨터 비전을위한 기계 학습 프로그램의 "Hello, World"로 종종 사용되는 고전적인 MNIST 데이터 세트를 대체하기위한 것입니다. TensorFlow에서 직접 Fashion MNIST에 액세스하고 데이터를 가져 와서로드 할 수 있습니다.

fashion_mnist = keras.datasets.fashion_mnist
(train_images, train_labels), (test_images, test_labels) = fashion_mnist.load_data()

# scale the values to 0.0 to 1.0
train_images = train_images / 255.0
test_images = test_images / 255.0

# reshape for feeding into the model
train_images = train_images.reshape(train_images.shape[0], 28, 28, 1)
test_images = test_images.reshape(test_images.shape[0], 28, 28, 1)

class_names = ['T-shirt/top', 'Trouser', 'Pullover', 'Dress', 'Coat',
               'Sandal', 'Shirt', 'Sneaker', 'Bag', 'Ankle boot']

print('\ntrain_images.shape: {}, of {}'.format(train_images.shape, train_images.dtype))
print('test_images.shape: {}, of {}'.format(test_images.shape, test_images.dtype))
Downloading data from https://storage.googleapis.com/tensorflow/tf-keras-datasets/train-labels-idx1-ubyte.gz
32768/29515 [=================================] - 0s 0us/step
Downloading data from https://storage.googleapis.com/tensorflow/tf-keras-datasets/train-images-idx3-ubyte.gz
26427392/26421880 [==============================] - 0s 0us/step
Downloading data from https://storage.googleapis.com/tensorflow/tf-keras-datasets/t10k-labels-idx1-ubyte.gz
8192/5148 [===============================================] - 0s 0us/step
Downloading data from https://storage.googleapis.com/tensorflow/tf-keras-datasets/t10k-images-idx3-ubyte.gz
4423680/4422102 [==============================] - 0s 0us/step

train_images.shape: (60000, 28, 28, 1), of float64
test_images.shape: (10000, 28, 28, 1), of float64

모델 학습 및 평가

모델링 부분에 초점을 맞추지 않았으므로 가능한 가장 간단한 CNN을 사용하겠습니다.

model = keras.Sequential([
  keras.layers.Conv2D(input_shape=(28,28,1), filters=8, kernel_size=3,
                      strides=2, activation='relu', name='Conv1'),
  keras.layers.Flatten(),
  keras.layers.Dense(10, name='Dense')
])
model.summary()

testing = False
epochs = 5

model.compile(optimizer='adam',
              loss=tf.keras.losses.SparseCategoricalCrossentropy(from_logits=True),
              metrics=[keras.metrics.SparseCategoricalAccuracy()])
model.fit(train_images, train_labels, epochs=epochs)

test_loss, test_acc = model.evaluate(test_images, test_labels)
print('\nTest accuracy: {}'.format(test_acc))
Model: "sequential"
_________________________________________________________________
Layer (type)                 Output Shape              Param #
=================================================================
Conv1 (Conv2D)               (None, 13, 13, 8)         80
_________________________________________________________________
flatten (Flatten)            (None, 1352)              0
_________________________________________________________________
Dense (Dense)                (None, 10)                13530
=================================================================
Total params: 13,610
Trainable params: 13,610
Non-trainable params: 0
_________________________________________________________________
Epoch 1/5
1875/1875 [==============================] - 12s 2ms/step - loss: 0.5205 - sparse_categorical_accuracy: 0.8206
Epoch 2/5
1875/1875 [==============================] - 3s 2ms/step - loss: 0.3819 - sparse_categorical_accuracy: 0.8672
Epoch 3/5
1875/1875 [==============================] - 3s 2ms/step - loss: 0.3472 - sparse_categorical_accuracy: 0.8784
Epoch 4/5
1875/1875 [==============================] - 3s 2ms/step - loss: 0.3266 - sparse_categorical_accuracy: 0.8847
Epoch 5/5
1875/1875 [==============================] - 3s 2ms/step - loss: 0.3129 - sparse_categorical_accuracy: 0.8882
313/313 [==============================] - 1s 1ms/step - loss: 0.3535 - sparse_categorical_accuracy: 0.8735

Test accuracy: 0.8734999895095825

모델 저장

학습 된 모델을 TensorFlow Serving에로드하려면 먼저 저장된 모델 형식으로 저장해야합니다. 이렇게하면 잘 정의 된 디렉토리 계층 구조에 protobuf 파일이 생성되고 버전 번호가 포함됩니다. TensorFlow Serving 을 사용하면 추론 요청을 할 때 사용할 모델 버전 또는 "제공 가능"을 선택할 수 있습니다. 각 버전은 지정된 경로 아래의 다른 하위 디렉토리로 내보내집니다.

# Fetch the Keras session and save the model
# The signature definition is defined by the input and output tensors,
# and stored with the default serving key
import tempfile

MODEL_DIR = tempfile.gettempdir()
version = 1
export_path = os.path.join(MODEL_DIR, str(version))
print('export_path = {}\n'.format(export_path))

tf.keras.models.save_model(
    model,
    export_path,
    overwrite=True,
    include_optimizer=True,
    save_format=None,
    signatures=None,
    options=None
)

print('\nSaved model:')
!ls -l {export_path}
export_path = /tmp/1
WARNING:absl:Function `_wrapped_model` contains input name(s) Conv1_input with unsupported characters which will be renamed to conv1_input in the SavedModel.
INFO:tensorflow:Assets written to: /tmp/1/assets
INFO:tensorflow:Assets written to: /tmp/1/assets
Saved model:
total 96
drwxr-xr-x 2 kbuilder kbuilder  4096 May 25 09:12 assets
-rw-rw-r-- 1 kbuilder kbuilder  7981 May 25 09:12 keras_metadata.pb
-rw-rw-r-- 1 kbuilder kbuilder 80661 May 25 09:12 saved_model.pb
drwxr-xr-x 2 kbuilder kbuilder  4096 May 25 09:12 variables

저장된 모델 검토

명령 줄 유틸리티 saved_model_cli 를 사용하여 저장된 모델에서 MetaGraphDefs (모델) 및 SignatureDefs (호출 할 수있는 메서드)를 살펴 봅니다. TensorFlow 가이드에서 저장된 모델 CLI 에 대한 이 토론을 참조하세요.

saved_model_cli show --dir {export_path} --all
2021-05-25 09:12:04.142378: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcudart.so.11.0

MetaGraphDef with tag-set: 'serve' contains the following SignatureDefs:

signature_def['__saved_model_init_op']:
  The given SavedModel SignatureDef contains the following input(s):
  The given SavedModel SignatureDef contains the following output(s):
    outputs['__saved_model_init_op'] tensor_info:
        dtype: DT_INVALID
        shape: unknown_rank
        name: NoOp
  Method name is:

signature_def['serving_default']:
  The given SavedModel SignatureDef contains the following input(s):
    inputs['Conv1_input'] tensor_info:
        dtype: DT_FLOAT
        shape: (-1, 28, 28, 1)
        name: serving_default_Conv1_input:0
  The given SavedModel SignatureDef contains the following output(s):
    outputs['Dense'] tensor_info:
        dtype: DT_FLOAT
        shape: (-1, 10)
        name: StatefulPartitionedCall:0
  Method name is: tensorflow/serving/predict

Defined Functions:
  Function Name: '__call__'
    Option #1
      Callable with:
        Argument #1
          Conv1_input: TensorSpec(shape=(None, 28, 28, 1), dtype=tf.float32, name='Conv1_input')
        Argument #2
          DType: bool
          Value: False
        Argument #3
          DType: NoneType
          Value: None
    Option #2
      Callable with:
        Argument #1
          inputs: TensorSpec(shape=(None, 28, 28, 1), dtype=tf.float32, name='inputs')
        Argument #2
          DType: bool
          Value: False
        Argument #3
          DType: NoneType
          Value: None
    Option #3
      Callable with:
        Argument #1
          inputs: TensorSpec(shape=(None, 28, 28, 1), dtype=tf.float32, name='inputs')
        Argument #2
          DType: bool
          Value: True
        Argument #3
          DType: NoneType
          Value: None
    Option #4
      Callable with:
        Argument #1
          Conv1_input: TensorSpec(shape=(None, 28, 28, 1), dtype=tf.float32, name='Conv1_input')
        Argument #2
          DType: bool
          Value: True
        Argument #3
          DType: NoneType
          Value: None

  Function Name: '_default_save_signature'
    Option #1
      Callable with:
        Argument #1
          Conv1_input: TensorSpec(shape=(None, 28, 28, 1), dtype=tf.float32, name='Conv1_input')

  Function Name: 'call_and_return_all_conditional_losses'
    Option #1
      Callable with:
        Argument #1
          inputs: TensorSpec(shape=(None, 28, 28, 1), dtype=tf.float32, name='inputs')
        Argument #2
          DType: bool
          Value: True
        Argument #3
          DType: NoneType
          Value: None
    Option #2
      Callable with:
        Argument #1
          inputs: TensorSpec(shape=(None, 28, 28, 1), dtype=tf.float32, name='inputs')
        Argument #2
          DType: bool
          Value: False
        Argument #3
          DType: NoneType
          Value: None
    Option #3
      Callable with:
        Argument #1
          Conv1_input: TensorSpec(shape=(None, 28, 28, 1), dtype=tf.float32, name='Conv1_input')
        Argument #2
          DType: bool
          Value: True
        Argument #3
          DType: NoneType
          Value: None
    Option #4
      Callable with:
        Argument #1
          Conv1_input: TensorSpec(shape=(None, 28, 28, 1), dtype=tf.float32, name='Conv1_input')
        Argument #2
          DType: bool
          Value: False
        Argument #3
          DType: NoneType
          Value: None

그것은 우리 모델에 대해 많은 것을 알려줍니다! 이 경우 우리는 방금 모델을 훈련 시켰으므로 이미 입력과 출력을 알고 있지만 그렇지 않으면 중요한 정보가 될 것입니다. 예를 들어 이것이 그레이 스케일 이미지 데이터라는 사실과 같이 모든 것을 알려주지는 않지만 좋은 시작입니다.

TensorFlow Serving으로 모델 제공

TensorFlow Serving 배포 URI를 패키지 소스로 추가합니다.

이 Colab은 Debian 환경에서 실행되므로 Aptitude를 사용하여 TensorFlow Serving을 설치할 준비를하고 있습니다. 우리는 Aptitude가 알고있는 패키지 목록에 tensorflow-model-server 패키지를 추가 할 것입니다. 우리는 루트로 실행하고 있습니다.

import sys
# We need sudo prefix if not on a Google Colab.
if 'google.colab' not in sys.modules:
  SUDO_IF_NEEDED = 'sudo'
else:
  SUDO_IF_NEEDED = ''
# This is the same as you would do from your command line, but without the [arch=amd64], and no sudo
# You would instead do:
# echo "deb [arch=amd64] http://storage.googleapis.com/tensorflow-serving-apt stable tensorflow-model-server tensorflow-model-server-universal" | sudo tee /etc/apt/sources.list.d/tensorflow-serving.list && \
# curl https://storage.googleapis.com/tensorflow-serving-apt/tensorflow-serving.release.pub.gpg | sudo apt-key add -

!echo "deb http://storage.googleapis.com/tensorflow-serving-apt stable tensorflow-model-server tensorflow-model-server-universal" | {SUDO_IF_NEEDED} tee /etc/apt/sources.list.d/tensorflow-serving.list && \
curl https://storage.googleapis.com/tensorflow-serving-apt/tensorflow-serving.release.pub.gpg | {SUDO_IF_NEEDED} apt-key add -
!{SUDO_IF_NEEDED} apt update
deb http://storage.googleapis.com/tensorflow-serving-apt stable tensorflow-model-server tensorflow-model-server-universal
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100  2943  100  2943    0     0   5236      0 --:--:-- --:--:-- --:--:--  5236
OK
Hit:1 http://asia-east1.gce.archive.ubuntu.com/ubuntu bionic InRelease
Hit:2 http://asia-east1.gce.archive.ubuntu.com/ubuntu bionic-updates InRelease
Hit:3 http://asia-east1.gce.archive.ubuntu.com/ubuntu bionic-backports InRelease
Hit:4 https://nvidia.github.io/libnvidia-container/stable/ubuntu18.04/amd64  InRelease
Hit:5 https://nvidia.github.io/nvidia-container-runtime/ubuntu18.04/amd64  InRelease
Hit:6 https://nvidia.github.io/nvidia-docker/ubuntu18.04/amd64  InRelease
Get:7 http://storage.googleapis.com/tensorflow-serving-apt stable InRelease [3012 B]
Ign:8 http://developer.download.nvidia.com/compute/machine-learning/repos/ubuntu1804/x86_64  InRelease
Hit:9 http://developer.download.nvidia.com/compute/machine-learning/repos/ubuntu1804/x86_64  Release
Hit:10 http://security.ubuntu.com/ubuntu bionic-security InRelease
Get:11 http://packages.cloud.google.com/apt google-cloud-logging-wheezy InRelease [5483 B]
Get:12 https://packages.cloud.google.com/apt eip-cloud-bionic InRelease [5419 B]
Hit:14 http://archive.canonical.com/ubuntu bionic InRelease
Get:15 http://storage.googleapis.com/tensorflow-serving-apt stable/tensorflow-model-server amd64 Packages [340 B]
Err:11 http://packages.cloud.google.com/apt google-cloud-logging-wheezy InRelease
  The following signatures couldn't be verified because the public key is not available: NO_PUBKEY FEEA9169307EA071 NO_PUBKEY 8B57C5C2836F4BEB
Err:12 https://packages.cloud.google.com/apt eip-cloud-bionic InRelease
  The following signatures couldn't be verified because the public key is not available: NO_PUBKEY FEEA9169307EA071 NO_PUBKEY 8B57C5C2836F4BEB
Get:16 http://storage.googleapis.com/tensorflow-serving-apt stable/tensorflow-model-server-universal amd64 Packages [347 B]
Fetched 14.6 kB in 1s (16.0 kB/s)



106 packages can be upgraded. Run 'apt list --upgradable' to see them.
W: An error occurred during the signature verification. The repository is not updated and the previous index files will be used. GPG error: http://packages.cloud.google.com/apt google-cloud-logging-wheezy InRelease: The following signatures couldn't be verified because the public key is not available: NO_PUBKEY FEEA9169307EA071 NO_PUBKEY 8B57C5C2836F4BEB
W: An error occurred during the signature verification. The repository is not updated and the previous index files will be used. GPG error: https://packages.cloud.google.com/apt eip-cloud-bionic InRelease: The following signatures couldn't be verified because the public key is not available: NO_PUBKEY FEEA9169307EA071 NO_PUBKEY 8B57C5C2836F4BEB
W: Failed to fetch https://packages.cloud.google.com/apt/dists/eip-cloud-bionic/InRelease  The following signatures couldn't be verified because the public key is not available: NO_PUBKEY FEEA9169307EA071 NO_PUBKEY 8B57C5C2836F4BEB
W: Failed to fetch http://packages.cloud.google.com/apt/dists/google-cloud-logging-wheezy/InRelease  The following signatures couldn't be verified because the public key is not available: NO_PUBKEY FEEA9169307EA071 NO_PUBKEY 8B57C5C2836F4BEB
W: Some index files failed to download. They have been ignored, or old ones used instead.

TensorFlow Serving 설치

이것이 필요한 전부입니다-하나의 명령 줄!

{SUDO_IF_NEEDED} apt-get install tensorflow-model-server
The following NEW packages will be installed:
  tensorflow-model-server
0 upgraded, 1 newly installed, 0 to remove and 106 not upgraded.
Need to get 326 MB of archives.
After this operation, 0 B of additional disk space will be used.
Get:1 http://storage.googleapis.com/tensorflow-serving-apt stable/tensorflow-model-server amd64 tensorflow-model-server all 2.5.1 [326 MB]
Fetched 326 MB in 7s (45.2 MB/s)
Selecting previously unselected package tensorflow-model-server.
(Reading database ... 193390 files and directories currently installed.)
Preparing to unpack .../tensorflow-model-server_2.5.1_all.deb ...
Unpacking tensorflow-model-server (2.5.1) ...
Setting up tensorflow-model-server (2.5.1) ...

TensorFlow Serving 실행 시작

여기서 TensorFlow Serving 실행을 시작하고 모델을로드합니다. 로드 후 REST를 사용하여 추론 요청을 시작할 수 있습니다. 몇 가지 중요한 매개 변수가 있습니다.

  • rest_api_port : REST 요청에 사용할 포트입니다.
  • model_name : REST 요청의 URL에서 사용합니다. 그것은 무엇이든 될 수 있습니다.
  • model_base_path : 모델을 저장 한 디렉토리의 경로입니다.
os.environ["MODEL_DIR"] = MODEL_DIR
nohup tensorflow_model_server \
  --rest_api_port=8501 \
  --model_name=fashion_model \
  --model_base_path="${MODEL_DIR}" >server.log 2>&1
tail server.log

TensorFlow Serving에서 모델에 요청하기

먼저 테스트 데이터에서 임의의 예를 살펴 보겠습니다.

def show(idx, title):
  plt.figure()
  plt.imshow(test_images[idx].reshape(28,28))
  plt.axis('off')
  plt.title('\n\n{}'.format(title), fontdict={'size': 16})

import random
rando = random.randint(0,len(test_images)-1)

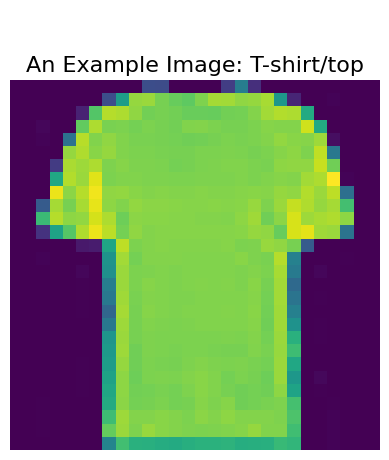

show(rando, 'An Example Image: {}'.format(class_names[test_labels[rando]]))

png

좋습니다. 흥미로워 보입니다. 당신이 인식하기 얼마나 어렵습니까? 이제 세 가지 추론 요청의 일괄 처리에 대한 JSON 객체를 만들고 모델이 사물을 얼마나 잘 인식하는지 살펴 보겠습니다.

import json
data = json.dumps({"signature_name": "serving_default", "instances": test_images[0:3].tolist()})
print('Data: {} ... {}'.format(data[:50], data[len(data)-52:]))
Data: {"signature_name": "serving_default", "instances": ...  [0.0], [0.0], [0.0], [0.0], [0.0], [0.0], [0.0]]]]}

REST 요청 만들기

최신 버전의 게재 가능

서버의 REST 엔드 포인트에 POST로 예측 요청을 보내고 세 가지 예제를 전달합니다. 특정 버전을 지정하지 않음으로써 서버에 최신 버전의 서비스를 제공하도록 요청할 것입니다.

!pip install -q requests

import requests
headers = {"content-type": "application/json"}
json_response = requests.post('http://localhost:8501/v1/models/fashion_model:predict', data=data, headers=headers)
predictions = json.loads(json_response.text)['predictions']

show(0, 'The model thought this was a {} (class {}), and it was actually a {} (class {})'.format(
  class_names[np.argmax(predictions[0])], np.argmax(predictions[0]), class_names[test_labels[0]], test_labels[0]))

게재 가능 항목의 특정 버전

이제 서빙 가능 항목의 특정 버전을 지정하겠습니다. 하나만 있으므로 버전 1을 선택하겠습니다. 세 가지 결과도 모두 살펴 보겠습니다.

headers = {"content-type": "application/json"}
json_response = requests.post('http://localhost:8501/v1/models/fashion_model/versions/1:predict', data=data, headers=headers)
predictions = json.loads(json_response.text)['predictions']

for i in range(0,3):
  show(i, 'The model thought this was a {} (class {}), and it was actually a {} (class {})'.format(
    class_names[np.argmax(predictions[i])], np.argmax(predictions[i]), class_names[test_labels[i]], test_labels[i]))
