Como combinar imagens usando DELF e TensorFlow Hub

Ver no TensorFlow.org Executar no Google Colab Ver no GitHub Baixar caderno Veja o modelo TF Hub

TensorFlow Hub (TF-Hub) é uma plataforma para compartilhar experiências de aprendizagem de máquina empacotada em recursos reutilizáveis, módulos nomeadamente pré-treinados.

Neste colab, usaremos um módulo que empacota o DELF rede neural e lógica para o processamento de imagens para identificar pontos-chave e seus descritores. Os pesos da rede neural foram treinados em imagens de referência, conforme descrito no presente trabalho .

Configurar

pip install scikit-image
from absl import logging

import matplotlib.pyplot as plt
import numpy as np
from PIL import Image, ImageOps
from scipy.spatial import cKDTree
from skimage.feature import plot_matches
from skimage.measure import ransac
from skimage.transform import AffineTransform
from six import BytesIO

import tensorflow as tf

import tensorflow_hub as hub
from six.moves.urllib.request import urlopen
2021-07-29 12:22:58.625491: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcudart.so.11.0

Os dados

Na próxima célula, especificamos os URLs de duas imagens que gostaríamos de processar com DELF a fim de combiná-los e compará-los.

Escolha as imagens

Baixe, redimensione, salve e exiba as imagens.

def download_and_resize(name, url, new_width=256, new_height=256):
  path = tf.keras.utils.get_file(url.split('/')[-1], url)
  image = Image.open(path)
  image = ImageOps.fit(image, (new_width, new_height), Image.ANTIALIAS)
  return image
image1 = download_and_resize('image_1.jpg', IMAGE_1_URL)
image2 = download_and_resize('image_2.jpg', IMAGE_2_URL)

plt.subplot(1,2,1)
plt.imshow(image1)
plt.subplot(1,2,2)
plt.imshow(image2)
Downloading data from https://upload.wikimedia.org/wikipedia/commons/2/28/Bridge_of_Sighs%2C_Oxford.jpg
7020544/7013850 [==============================] - 0s 0us/step
Downloading data from https://upload.wikimedia.org/wikipedia/commons/c/c3/The_Bridge_of_Sighs_and_Sheldonian_Theatre%2C_Oxford.jpg
14172160/14164194 [==============================] - 2s 0us/step

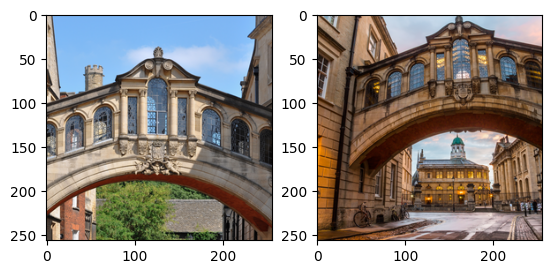

<matplotlib.image.AxesImage at 0x7f84c7e65fd0>

png

Aplique o módulo DELF aos dados

O módulo DELF pega uma imagem como entrada e irá descrever pontos notáveis ​​com vetores. A célula a seguir contém o núcleo da lógica desta colab.

delf = hub.load('https://tfhub.dev/google/delf/1').signatures['default']
2021-07-29 12:23:08.349822: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcuda.so.1
2021-07-29 12:23:09.038043: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:937] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2021-07-29 12:23:09.039084: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1733] Found device 0 with properties:
pciBusID: 0000:00:05.0 name: Tesla V100-SXM2-16GB computeCapability: 7.0
coreClock: 1.53GHz coreCount: 80 deviceMemorySize: 15.78GiB deviceMemoryBandwidth: 836.37GiB/s
2021-07-29 12:23:09.039138: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcudart.so.11.0
2021-07-29 12:23:09.043758: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcublas.so.11
2021-07-29 12:23:09.043920: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcublasLt.so.11
2021-07-29 12:23:09.045114: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcufft.so.10
2021-07-29 12:23:09.045505: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcurand.so.10
2021-07-29 12:23:09.046377: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcusolver.so.11
2021-07-29 12:23:09.047125: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcusparse.so.11
2021-07-29 12:23:09.047345: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcudnn.so.8
2021-07-29 12:23:09.047508: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:937] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2021-07-29 12:23:09.048600: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:937] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2021-07-29 12:23:09.049603: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1871] Adding visible gpu devices: 0
2021-07-29 12:23:09.050572: I tensorflow/core/platform/cpu_feature_guard.cc:142] This TensorFlow binary is optimized with oneAPI Deep Neural Network Library (oneDNN) to use the following CPU instructions in performance-critical operations:  AVX2 AVX512F FMA
To enable them in other operations, rebuild TensorFlow with the appropriate compiler flags.
2021-07-29 12:23:09.051145: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:937] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2021-07-29 12:23:09.052126: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1733] Found device 0 with properties:
pciBusID: 0000:00:05.0 name: Tesla V100-SXM2-16GB computeCapability: 7.0
coreClock: 1.53GHz coreCount: 80 deviceMemorySize: 15.78GiB deviceMemoryBandwidth: 836.37GiB/s
2021-07-29 12:23:09.052231: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:937] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2021-07-29 12:23:09.053214: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:937] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2021-07-29 12:23:09.054273: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1871] Adding visible gpu devices: 0
2021-07-29 12:23:09.054369: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcudart.so.11.0
2021-07-29 12:23:09.703537: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1258] Device interconnect StreamExecutor with strength 1 edge matrix:
2021-07-29 12:23:09.703582: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1264]      0
2021-07-29 12:23:09.703590: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1277] 0:   N
2021-07-29 12:23:09.703889: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:937] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2021-07-29 12:23:09.704961: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:937] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2021-07-29 12:23:09.705967: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:937] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2021-07-29 12:23:09.706889: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1418] Created TensorFlow device (/job:localhost/replica:0/task:0/device:GPU:0 with 14646 MB memory) -> physical GPU (device: 0, name: Tesla V100-SXM2-16GB, pci bus id: 0000:00:05.0, compute capability: 7.0)
2021-07-29 12:23:10.836972: I tensorflow/compiler/mlir/mlir_graph_optimization_pass.cc:176] None of the MLIR Optimization Passes are enabled (registered 2)
2021-07-29 12:23:10.842206: I tensorflow/core/platform/profile_utils/cpu_utils.cc:114] CPU Frequency: 2000179999 Hz
def run_delf(image):
  np_image = np.array(image)
  float_image = tf.image.convert_image_dtype(np_image, tf.float32)

  return delf(
      image=float_image,
      score_threshold=tf.constant(100.0),
      image_scales=tf.constant([0.25, 0.3536, 0.5, 0.7071, 1.0, 1.4142, 2.0]),
      max_feature_num=tf.constant(1000))
result1 = run_delf(image1)
result2 = run_delf(image2)
2021-07-29 12:23:14.509060: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcudnn.so.8
2021-07-29 12:23:15.014069: I tensorflow/stream_executor/cuda/cuda_dnn.cc:359] Loaded cuDNN version 8100
2021-07-29 12:23:15.751535: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcublas.so.11
2021-07-29 12:23:16.160492: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcublasLt.so.11

Use os locais e vetores de descrição para combinar as imagens

TensorFlow não é necessário para este pós-processamento e visualização

def match_images(image1, image2, result1, result2):
  distance_threshold = 0.8

  # Read features.
  num_features_1 = result1['locations'].shape[0]
  print("Loaded image 1's %d features" % num_features_1)

  num_features_2 = result2['locations'].shape[0]
  print("Loaded image 2's %d features" % num_features_2)

  # Find nearest-neighbor matches using a KD tree.
  d1_tree = cKDTree(result1['descriptors'])
  _, indices = d1_tree.query(
      result2['descriptors'],
      distance_upper_bound=distance_threshold)

  # Select feature locations for putative matches.
  locations_2_to_use = np.array([
      result2['locations'][i,]
      for i in range(num_features_2)
      if indices[i] != num_features_1
  ])
  locations_1_to_use = np.array([
      result1['locations'][indices[i],]
      for i in range(num_features_2)
      if indices[i] != num_features_1
  ])

  # Perform geometric verification using RANSAC.
  _, inliers = ransac(
      (locations_1_to_use, locations_2_to_use),
      AffineTransform,
      min_samples=3,
      residual_threshold=20,
      max_trials=1000)

  print('Found %d inliers' % sum(inliers))

  # Visualize correspondences.
  _, ax = plt.subplots()
  inlier_idxs = np.nonzero(inliers)[0]
  plot_matches(
      ax,
      image1,
      image2,
      locations_1_to_use,
      locations_2_to_use,
      np.column_stack((inlier_idxs, inlier_idxs)),
      matches_color='b')
  ax.axis('off')
  ax.set_title('DELF correspondences')
match_images(image1, image2, result1, result2)
Loaded image 1's 233 features
Loaded image 2's 262 features
Found 51 inliers

png
