This guide covers training, evaluation, and prediction (inference) models in TensorFlow 2.0 in two broad situations:

• When using built-in APIs for training & validation (such as model.fit(), model.evaluate(), model.predict()). This is covered in the section "Using build-in training & evaluation loops".
• When writing custom loops from scratch using eager execution and the GradientTape object. This is covered in the section "Writing your own training & evaluation loops from scratch".

In general, whether you are using built-in loops or writing your own, model training & evaluation works strictly in the same way across every kind of Keras model -- Sequential models, models built with the Functional API, and models written from scratch via model subclassing.

This guide doesn't cover distributed training.

Setup

from __future__ import absolute_import, division, print_function, unicode_literals

import tensorflow as tf

tf.keras.backend.clear_session()  # For easy reset of notebook state.

Part I: Using build-in training & evaluation loops

When passing data to the built-in training loops of a model, you should either use Numpy arrays (if your data is small and fits in memory) or tf.data Dataset objects. In the next few paragraphs, we'll use the MNIST dataset as Numpy arrays, in order to demonstrate how to use optimizers, losses, and metrics.

API overview: a first end-to-end example

Let's consider the following model (here, we build in with the Functional API, but it could be a Sequential model or a subclassed model as well):

from tensorflow import keras
from tensorflow.keras import layers

inputs = keras.Input(shape=(784,), name='digits')
x = layers.Dense(64, activation='relu', name='dense_1')(inputs)
x = layers.Dense(64, activation='relu', name='dense_2')(x)
outputs = layers.Dense(10, activation='softmax', name='predictions')(x)

model = keras.Model(inputs=inputs, outputs=outputs)

Here's what the typical end-to-end workflow looks like, consisting of training, validation on a holdout set generated from the original training data, and finally evaluation on the test data:

# Load a toy dataset for the sake of this example
(x_train, y_train), (x_test, y_test) = keras.datasets.mnist.load_data()

# Preprocess the data (these are Numpy arrays)
x_train = x_train.reshape(60000, 784).astype('float32') / 255
x_test = x_test.reshape(10000, 784).astype('float32') / 255

y_train = y_train.astype('float32')
y_test = y_test.astype('float32')

# Reserve 10,000 samples for validation
x_val = x_train[-10000:]
y_val = y_train[-10000:]
x_train = x_train[:-10000]
y_train = y_train[:-10000]

# Specify the training configuration (optimizer, loss, metrics)
model.compile(optimizer=keras.optimizers.RMSprop(),  # Optimizer
              # Loss function to minimize
              loss=keras.losses.SparseCategoricalCrossentropy(),
              # List of metrics to monitor
              metrics=[keras.metrics.SparseCategoricalAccuracy()])

# Train the model by slicing the data into "batches"
# of size "batch_size", and repeatedly iterating over
# the entire dataset for a given number of "epochs"
print('# Fit model on training data')
history = model.fit(x_train, y_train,
                    batch_size=64,
                    epochs=3,
                    # We pass some validation for
                    # monitoring validation loss and metrics
                    # at the end of each epoch
                    validation_data=(x_val, y_val))

# The returned "history" object holds a record
# of the loss values and metric values during training
print('\nhistory dict:', history.history)

# Evaluate the model on the test data using `evaluate`
print('\n# Evaluate on test data')
results = model.evaluate(x_test, y_test, batch_size=128)
print('test loss, test acc:', results)

# Generate predictions (probabilities -- the output of the last layer)
# on new data using `predict`
print('\n# Generate predictions for 3 samples')
predictions = model.predict(x_test[:3])
print('predictions shape:', predictions.shape)

Downloading data from https://storage.googleapis.com/tensorflow/tf-keras-datasets/mnist.npz
11493376/11490434 [==============================] - 0s 0us/step
# Fit model on training data
Train on 50000 samples, validate on 10000 samples
Epoch 1/3
50000/50000 [==============================] - 3s 70us/sample - loss: 0.3439 - sparse_categorical_accuracy: 0.9021 - val_loss: 0.1705 - val_sparse_categorical_accuracy: 0.9533
Epoch 2/3
50000/50000 [==============================] - 2s 47us/sample - loss: 0.1586 - sparse_categorical_accuracy: 0.9529 - val_loss: 0.1340 - val_sparse_categorical_accuracy: 0.9605
Epoch 3/3
50000/50000 [==============================] - 2s 46us/sample - loss: 0.1190 - sparse_categorical_accuracy: 0.9646 - val_loss: 0.1216 - val_sparse_categorical_accuracy: 0.9646

history dict: {'loss': [0.343871267080307, 0.15856492357969285, 0.11901826220273971], 'sparse_categorical_accuracy': [0.9021, 0.9529, 0.96464], 'val_loss': [0.17052854093909264, 0.13404706603139638, 0.12161647548824549], 'val_sparse_categorical_accuracy': [0.9533, 0.9605, 0.9646]}

# Evaluate on test data
10000/1 [================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================================] - 0s 14us/sample - loss: 0.1197 - sparse_categorical_accuracy: 0.9624
test loss, test acc: [0.12055655305087566, 0.9624]

# Generate predictions for 3 samples
predictions shape: (3, 10)

Specifying a loss, metrics, and an optimizer

To train a model with fit, you need to specify a loss function, an optimizer, and optionally, some metrics to monitor.

You pass these to the model as arguments to the compile() method:

model.compile(optimizer=keras.optimizers.RMSprop(learning_rate=1e-3),
              loss=keras.losses.SparseCategoricalCrossentropy(),
              metrics=[keras.metrics.SparseCategoricalAccuracy()])

The metrics argument should be a list -- you model can have any number of metrics.

If your model has multiple outputs, you can specify different losses and metrics for each output, and you can modulate to contribution of each output to the total loss of the model. You will find more details about this in the section "Passing data to multi-input, multi-output models".

Note that in many cases, the loss and metrics are specified via string identifiers, as a shortcut:

model.compile(optimizer=keras.optimizers.RMSprop(learning_rate=1e-3),
              loss='sparse_categorical_crossentropy',
              metrics=['sparse_categorical_accuracy'])

For later reuse, let's put our model definition and compile step in functions; we will call them several times across different examples in this guide.

def get_uncompiled_model():
  inputs = keras.Input(shape=(784,), name='digits')
  x = layers.Dense(64, activation='relu', name='dense_1')(inputs)
  x = layers.Dense(64, activation='relu', name='dense_2')(x)
  outputs = layers.Dense(10, activation='softmax', name='predictions')(x)
  model = keras.Model(inputs=inputs, outputs=outputs)
  return model

def get_compiled_model():
  model = get_uncompiled_model()
  model.compile(optimizer=keras.optimizers.RMSprop(learning_rate=1e-3),
              loss='sparse_categorical_crossentropy',
              metrics=['sparse_categorical_accuracy'])
  return model

Many built-in optimizers, losses, and metrics are available

In general, you won't have to create from scratch your own losses, metrics, or optimizers, because what you need is likely already part of the Keras API:

Optimizers:

• SGD() (with or without momentum)
• RMSprop()
• Adam()
• etc.

Losses:

• MeanSquaredError()
• KLDivergence()
• CosineSimilarity()
• etc.

Metrics:

• AUC()
• Precision()
• Recall()
• etc.

Custom losses

There are two ways to provide custom losses with Keras. The first example creates a function that accepts inputs y_true and y_pred. The following example shows a loss function that computes the average distance between the real data and the predictions:

def basic_loss_function(y_true, y_pred):
    return tf.math.reduce_mean(y_true - y_pred)

model.compile(optimizer=keras.optimizers.Adam(),
              loss=basic_loss_function)

model.fit(x_train, y_train, batch_size=64, epochs=3)

Train on 50000 samples
Epoch 1/3
50000/50000 [==============================] - 2s 38us/sample - loss: 4.3488
Epoch 2/3
50000/50000 [==============================] - 2s 33us/sample - loss: 4.3488
Epoch 3/3
50000/50000 [==============================] - 2s 32us/sample - loss: 4.3488

<tensorflow.python.keras.callbacks.History at 0x7f3bd04da518>

If you need a loss function that takes in parameters beside y_true and y_pred, you can subclass the tf.keras.losses.Loss class and implement the following two methods:

• __init__(self) —Accept parameters to pass during the call of your loss function
• call(self, y_true, y_pred) —Use the targets (y_true) and the model predictions (y_pred) to compute the model's loss

Parameters passed into __init__() can be used during call() when calculating loss.

The following example shows how to implement a WeightedCrossEntropy loss function that calculates a BinaryCrossEntropy loss, where the loss of a certain class or the whole function can be modified by a scalar.

class WeightedBinaryCrossEntropy(keras.losses.Loss):
    """
    Args:
      pos_weight: Scalar to affect the positive labels of the loss function.
      weight: Scalar to affect the entirety of the loss function.
      from_logits: Whether to compute loss form logits or the probability.
      reduction: Type of tf.keras.losses.Reduction to apply to loss.
      name: Name of the loss function.
    """
    def __init__(self, pos_weight, weight, from_logits=False,
                 reduction=keras.losses.Reduction.AUTO,
                 name='weighted_binary_crossentropy'):
        super(WeightedBinaryCrossEntropy, self).__init__(reduction=reduction,
                                                         name=name)
        self.pos_weight = pos_weight
        self.weight = weight
        self.from_logits = from_logits

    def call(self, y_true, y_pred):
        if not self.from_logits:
            # Manually calculate the weighted cross entropy.
            # Formula is qz * -log(sigmoid(x)) + (1 - z) * -log(1 - sigmoid(x))
            # where z are labels, x is logits, and q is the weight.
            # Since the values passed are from sigmoid (assuming in this case)
            # sigmoid(x) will be replaced by y_pred

            # qz * -log(sigmoid(x)) 1e-6 is added as an epsilon to stop passing a zero into the log
            x_1 = y_true * self.pos_weight * -tf.math.log(y_pred + 1e-6)

            # (1 - z) * -log(1 - sigmoid(x)). Epsilon is added to prevent passing a zero into the log
            x_2 = (1 - y_true) * -tf.math.log(1 - y_pred + 1e-6)

            return tf.add(x_1, x_2) * self.weight

        # Use built in function
        return tf.nn.weighted_cross_entropy_with_logits(y_true, y_pred, self.pos_weight) * self.weight


model.compile(optimizer=keras.optimizers.Adam(),
              loss=WeightedBinaryCrossEntropy(0.5, 2))

model.fit(x_train, y_train, batch_size=64, epochs=3)

Train on 50000 samples
Epoch 1/3
50000/50000 [==============================] - 2s 42us/sample - loss: 10.0479
Epoch 2/3
50000/50000 [==============================] - 2s 36us/sample - loss: 9.5181
Epoch 3/3
50000/50000 [==============================] - 2s 36us/sample - loss: 9.5174

<tensorflow.python.keras.callbacks.History at 0x7f3bdc0d1c88>

Custom metrics

If you need a metric that isn't part of the API, you can easily create custom metrics by subclassing the Metric class. You will need to implement 4 methods:

• __init__(self), in which you will create state variables for your metric.
• update_state(self, y_true, y_pred, sample_weight=None), which uses the targets y_true and the model predictions y_pred to update the state variables.
• result(self), which uses the state variables to compute the final results.
• reset_states(self), which reinitializes the state of the metric.

State update and results computation are kept separate (in update_state() and result(), respectively) because in some cases, results computation might be very expensive, and would only be done periodically.

Here's a simple example showing how to implement a CategoricalTruePositives metric, that counts how many samples where correctly classified as belonging to a given class:

class CategoricalTruePositives(keras.metrics.Metric):

    def __init__(self, name='categorical_true_positives', **kwargs):
      super(CategoricalTruePositives, self).__init__(name=name, **kwargs)
      self.true_positives = self.add_weight(name='tp', initializer='zeros')

    def update_state(self, y_true, y_pred, sample_weight=None):
      y_pred = tf.reshape(tf.argmax(y_pred, axis=1), shape=(-1, 1))
      values = tf.cast(y_true, 'int32') == tf.cast(y_pred, 'int32')
      values = tf.cast(values, 'float32')
      if sample_weight is not None:
        sample_weight = tf.cast(sample_weight, 'float32')
        values = tf.multiply(values, sample_weight)
      self.true_positives.assign_add(tf.reduce_sum(values))

    def result(self):
      return self.true_positives

    def reset_states(self):
      # The state of the metric will be reset at the start of each epoch.
      self.true_positives.assign(0.)


model.compile(optimizer=keras.optimizers.RMSprop(learning_rate=1e-3),
              loss=keras.losses.SparseCategoricalCrossentropy(),
              metrics=[CategoricalTruePositives()])
model.fit(x_train, y_train,
          batch_size=64,
          epochs=3)

Train on 50000 samples
Epoch 1/3
50000/50000 [==============================] - 2s 49us/sample - loss: 0.2017 - categorical_true_positives: 46988.0000
Epoch 2/3
50000/50000 [==============================] - 2s 41us/sample - loss: 0.0853 - categorical_true_positives: 48723.0000
Epoch 3/3
50000/50000 [==============================] - 2s 41us/sample - loss: 0.0703 - categorical_true_positives: 48949.0000

<tensorflow.python.keras.callbacks.History at 0x7f3be3e724e0>

Handling losses and metrics that don't fit the standard signature

The overwhelming majority of losses and metrics can be computed from y_true and y_pred, where y_pred is an output of your model. But not all of them. For instance, a regularization loss may only require the activation of a layer (there are no targets in this case), and this activation may not be a model output.

In such cases, you can call self.add_loss(loss_value) from inside the call method of a custom layer. Here's a simple example that adds activity regularization (note that activity regularization is built-in in all Keras layers -- this layer is just for the sake of providing a concrete example):

class ActivityRegularizationLayer(layers.Layer):

  def call(self, inputs):
    self.add_loss(tf.reduce_sum(inputs) * 0.1)
    return inputs  # Pass-through layer.

inputs = keras.Input(shape=(784,), name='digits')
x = layers.Dense(64, activation='relu', name='dense_1')(inputs)

# Insert activity regularization as a layer
x = ActivityRegularizationLayer()(x)

x = layers.Dense(64, activation='relu', name='dense_2')(x)
outputs = layers.Dense(10, activation='softmax', name='predictions')(x)

model = keras.Model(inputs=inputs, outputs=outputs)
model.compile(optimizer=keras.optimizers.RMSprop(learning_rate=1e-3),
              loss='sparse_categorical_crossentropy')

# The displayed loss will be much higher than before
# due to the regularization component.
model.fit(x_train, y_train,
          batch_size=64,
          epochs=1)

Train on 50000 samples
50000/50000 [==============================] - 2s 49us/sample - loss: 2.4801

<tensorflow.python.keras.callbacks.History at 0x7f3bbc32ea58>

You can do the same for logging metric values:

class MetricLoggingLayer(layers.Layer):

  def call(self, inputs):
    # The `aggregation` argument defines
    # how to aggregate the per-batch values
    # over each epoch:
    # in this case we simply average them.
    self.add_metric(keras.backend.std(inputs),
                    name='std_of_activation',
                    aggregation='mean')
    return inputs  # Pass-through layer.


inputs = keras.Input(shape=(784,), name='digits')
x = layers.Dense(64, activation='relu', name='dense_1')(inputs)

# Insert std logging as a layer.
x = MetricLoggingLayer()(x)

x = layers.Dense(64, activation='relu', name='dense_2')(x)
outputs = layers.Dense(10, activation='softmax', name='predictions')(x)

model = keras.Model(inputs=inputs, outputs=outputs)
model.compile(optimizer=keras.optimizers.RMSprop(learning_rate=1e-3),
              loss='sparse_categorical_crossentropy')
model.fit(x_train, y_train,
          batch_size=64,
          epochs=1)

Train on 50000 samples
50000/50000 [==============================] - 2s 48us/sample - loss: 0.3369 - std_of_activation: 1.0045

<tensorflow.python.keras.callbacks.History at 0x7f3b88143390>

In the Functional API, you can also call model.add_loss(loss_tensor), or model.add_metric(metric_tensor, name, aggregation).

Here's a simple example:

inputs = keras.Input(shape=(784,), name='digits')
x1 = layers.Dense(64, activation='relu', name='dense_1')(inputs)
x2 = layers.Dense(64, activation='relu', name='dense_2')(x1)
outputs = layers.Dense(10, activation='softmax', name='predictions')(x2)
model = keras.Model(inputs=inputs, outputs=outputs)

model.add_loss(tf.reduce_sum(x1) * 0.1)

model.add_metric(keras.backend.std(x1),
                 name='std_of_activation',
                 aggregation='mean')

model.compile(optimizer=keras.optimizers.RMSprop(1e-3),
              loss='sparse_categorical_crossentropy')
model.fit(x_train, y_train,
          batch_size=64,
          epochs=1)

Train on 50000 samples
50000/50000 [==============================] - 3s 58us/sample - loss: 2.5077 - std_of_activation: 0.0020

<tensorflow.python.keras.callbacks.History at 0x7f3b782b09e8>

Automatically setting apart a validation holdout set

In the first end-to-end example you saw, we used the validation_data argument to pass a tuple of Numpy arrays (x_val, y_val) to the model for evaluating a validation loss and validation metrics at the end of each epoch.

Here's another option: the argument validation_split allows you to automatically reserve part of your training data for validation. The argument value represents the fraction of the data to be reserved for validation, so it should be set to a number higher than 0 and lower than 1. For instance, validation_split=0.2 means "use 20% of the data for validation", and validation_split=0.6 means "use 60% of the data for validation".

The way the validation is computed is by taking the last x% samples of the arrays received by the fit call, before any shuffling.

You can only use validation_split when training with Numpy data.

model = get_compiled_model()
model.fit(x_train, y_train, batch_size=64, validation_split=0.2, epochs=1, steps_per_epoch=1)

Train on 40000 samples, validate on 10000 samples
   64/40000 [..............................] - ETA: 7:57 - loss: 2.3474 - sparse_categorical_accuracy: 0.1875 - val_loss: 0.0000e+00 - val_sparse_categorical_accuracy: 0.0000e+00
<tensorflow.python.keras.callbacks.History at 0x7f3b6c34f940>

Training & evaluation from tf.data Datasets

In the past few paragraphs, you've seen how to handle losses, metrics, and optimizers, and you've seen how to use the validation_data and validation_split arguments in fit, when your data is passed as Numpy arrays.

Let's now take a look at the case where your data comes in the form of a tf.data Dataset.

The tf.data API is a set of utilities in TensorFlow 2.0 for loading and preprocessing data in a way that's fast and scalable.

For a complete guide about creating Datasets, see the tf.data documentation.

You can pass a Dataset instance directly to the methods fit(), evaluate(), and predict():

model = get_compiled_model()

# First, let's create a training Dataset instance.
# For the sake of our example, we'll use the same MNIST data as before.
train_dataset = tf.data.Dataset.from_tensor_slices((x_train, y_train))
# Shuffle and slice the dataset.
train_dataset = train_dataset.shuffle(buffer_size=1024).batch(64)

# Now we get a test dataset.
test_dataset = tf.data.Dataset.from_tensor_slices((x_test, y_test))
test_dataset = test_dataset.batch(64)

# Since the dataset already takes care of batching,
# we don't pass a `batch_size` argument.
model.fit(train_dataset, epochs=3)

# You can also evaluate or predict on a dataset.
print('\n# Evaluate')
model.evaluate(test_dataset)

Epoch 1/3
782/782 [==============================] - 4s 5ms/step - loss: 0.3421 - sparse_categorical_accuracy: 0.9039
Epoch 2/3
782/782 [==============================] - 2s 3ms/step - loss: 0.1603 - sparse_categorical_accuracy: 0.9521
Epoch 3/3
782/782 [==============================] - 2s 3ms/step - loss: 0.1166 - sparse_categorical_accuracy: 0.9647

# Evaluate
157/157 [==============================] - 0s 2ms/step - loss: 0.1380 - sparse_categorical_accuracy: 0.9567

[0.1379790138586715, 0.9567]

Note that the Dataset is reset at the end of each epoch, so it can be reused of the next epoch.

If you want to run training only on a specific number of batches from this Dataset, you can pass the steps_per_epoch argument, which specifies how many training steps the model should run using this Dataset before moving on to the next epoch.

If you do this, the dataset is not reset at the end of each epoch, instead we just keep drawing the next batches. The dataset will eventually run out of data (unless it is an infinitely-looping dataset).

model = get_compiled_model()

# Prepare the training dataset
train_dataset = tf.data.Dataset.from_tensor_slices((x_train, y_train))
train_dataset = train_dataset.shuffle(buffer_size=1024).batch(64)

# Only use the 100 batches per epoch (that's 64 * 100 samples)
model.fit(train_dataset.take(100), epochs=3)

Epoch 1/3
100/100 [==============================] - 1s 10ms/step - loss: 0.8005 - sparse_categorical_accuracy: 0.7956
Epoch 2/3
100/100 [==============================] - 1s 5ms/step - loss: 0.3299 - sparse_categorical_accuracy: 0.9091
Epoch 3/3
100/100 [==============================] - 0s 5ms/step - loss: 0.2584 - sparse_categorical_accuracy: 0.9286

<tensorflow.python.keras.callbacks.History at 0x7f3b2020df60>

Using a validation dataset

You can pass a Dataset instance as the validation_data argument in fit:

model = get_compiled_model()

# Prepare the training dataset
train_dataset = tf.data.Dataset.from_tensor_slices((x_train, y_train))
train_dataset = train_dataset.shuffle(buffer_size=1024).batch(64)

# Prepare the validation dataset
val_dataset = tf.data.Dataset.from_tensor_slices((x_val, y_val))
val_dataset = val_dataset.batch(64)

model.fit(train_dataset, epochs=3, validation_data=val_dataset)

Epoch 1/3
782/782 [==============================] - 4s 5ms/step - loss: 0.3376 - sparse_categorical_accuracy: 0.9043 - val_loss: 0.0000e+00 - val_sparse_categorical_accuracy: 0.0000e+00
Epoch 2/3
782/782 [==============================] - 3s 4ms/step - loss: 0.1623 - sparse_categorical_accuracy: 0.9523 - val_loss: 0.1406 - val_sparse_categorical_accuracy: 0.9602
Epoch 3/3
782/782 [==============================] - 3s 4ms/step - loss: 0.1213 - sparse_categorical_accuracy: 0.9638 - val_loss: 0.1233 - val_sparse_categorical_accuracy: 0.9632

<tensorflow.python.keras.callbacks.History at 0x7f3b08b84550>

At the end of each epoch, the model will iterate over the validation Dataset and compute the validation loss and validation metrics.

If you want to run validation only on a specific number of batches from this Dataset, you can pass the validation_steps argument, which specifies how many validation steps the model should run with the validation Dataset before interrupting validation and moving on to the next epoch:

model = get_compiled_model()

# Prepare the training dataset
train_dataset = tf.data.Dataset.from_tensor_slices((x_train, y_train))
train_dataset = train_dataset.shuffle(buffer_size=1024).batch(64)

# Prepare the validation dataset
val_dataset = tf.data.Dataset.from_tensor_slices((x_val, y_val))
val_dataset = val_dataset.batch(64)

model.fit(train_dataset, epochs=3,
          # Only run validation using the first 10 batches of the dataset
          # using the `validation_steps` argument
          validation_data=val_dataset, validation_steps=10)

Epoch 1/3
782/782 [==============================] - 4s 5ms/step - loss: 0.3322 - sparse_categorical_accuracy: 0.9068 - val_loss: 0.0000e+00 - val_sparse_categorical_accuracy: 0.0000e+00
Epoch 2/3
782/782 [==============================] - 2s 3ms/step - loss: 0.1554 - sparse_categorical_accuracy: 0.9540 - val_loss: 0.2302 - val_sparse_categorical_accuracy: 0.9375
Epoch 3/3
782/782 [==============================] - 2s 3ms/step - loss: 0.1146 - sparse_categorical_accuracy: 0.9665 - val_loss: 0.1813 - val_sparse_categorical_accuracy: 0.9484

<tensorflow.python.keras.callbacks.History at 0x7f3b084e4e80>

Note that the validation Dataset will be reset after each use (so that you will always be evaluating on the same samples from epoch to epoch).

The argument validation_split (generating a holdout set from the training data) is not supported when training from Dataset objects, since this features requires the ability to index the samples of the datasets, which is not possible in general with the Dataset API.

Other input formats supported

Besides Numpy arrays and TensorFlow Datasets, it's possible to train a Keras model using Pandas dataframes, or from Python generators that yield batches.

In general, we recommend that you use Numpy input data if your data is small and fits in memory, and Datasets otherwise.

Using sample weighting and class weighting

Besides input data and target data, it is possible to pass sample weights or class weights to a model when using fit:

• When training from Numpy data: via the sample_weight and class_weight arguments.
• When training from Datasets: by having the Dataset return a tuple (input_batch, target_batch, sample_weight_batch) .

A "sample weights" array is an array of numbers that specify how much weight each sample in a batch should have in computing the total loss. It is commonly used in imbalanced classification problems (the idea being to give more weight to rarely-seen classes). When the weights used are ones and zeros, the array can be used as a mask for the loss function (entirely discarding the contribution of certain samples to the total loss).

A "class weights" dict is a more specific instance of the same concept: it maps class indices to the sample weight that should be used for samples belonging to this class. For instance, if class "0" is twice less represented than class "1" in your data, you could use class_weight={0: 1., 1: 0.5}.

Here's a Numpy example where we use class weights or sample weights to give more importance to the correct classification of class #5 (which is the digit "5" in the MNIST dataset).

import numpy as np

class_weight = {0: 1., 1: 1., 2: 1., 3: 1., 4: 1.,
                # Set weight "2" for class "5",
                # making this class 2x more important
                5: 2.,
                6: 1., 7: 1., 8: 1., 9: 1.}
print('Fit with class weight')
model.fit(x_train, y_train,
          class_weight=class_weight,
          batch_size=64,
          epochs=4)

# Here's the same example using `sample_weight` instead:
sample_weight = np.ones(shape=(len(y_train),))
sample_weight[y_train == 5] = 2.
print('\nFit with sample weight')

model = get_compiled_model()
model.fit(x_train, y_train,
          sample_weight=sample_weight,
          batch_size=64,
          epochs=4)

Fit with class weight
Train on 50000 samples
Epoch 1/4
50000/50000 [==============================] - 3s 52us/sample - loss: 0.1035 - sparse_categorical_accuracy: 0.9710
Epoch 2/4
50000/50000 [==============================] - 2s 46us/sample - loss: 0.0858 - sparse_categorical_accuracy: 0.9763
Epoch 3/4
50000/50000 [==============================] - 2s 46us/sample - loss: 0.0744 - sparse_categorical_accuracy: 0.9788
Epoch 4/4
50000/50000 [==============================] - 2s 46us/sample - loss: 0.0645 - sparse_categorical_accuracy: 0.9821

Fit with sample weight
Train on 50000 samples
Epoch 1/4
50000/50000 [==============================] - 3s 56us/sample - loss: 0.3751 - sparse_categorical_accuracy: 0.9004
Epoch 2/4
50000/50000 [==============================] - 2s 46us/sample - loss: 0.1703 - sparse_categorical_accuracy: 0.9530
Epoch 3/4
50000/50000 [==============================] - 2s 46us/sample - loss: 0.1269 - sparse_categorical_accuracy: 0.9646
Epoch 4/4
50000/50000 [==============================] - 2s 45us/sample - loss: 0.1032 - sparse_categorical_accuracy: 0.9713

<tensorflow.python.keras.callbacks.History at 0x7f3ae81b0eb8>

Here's a matching Dataset example:

sample_weight = np.ones(shape=(len(y_train),))
sample_weight[y_train == 5] = 2.

# Create a Dataset that includes sample weights
# (3rd element in the return tuple).
train_dataset = tf.data.Dataset.from_tensor_slices(
    (x_train, y_train, sample_weight))

# Shuffle and slice the dataset.
train_dataset = train_dataset.shuffle(buffer_size=1024).batch(64)

model = get_compiled_model()
model.fit(train_dataset, epochs=3)

Epoch 1/3
782/782 [==============================] - 4s 5ms/step - loss: 0.3659 - sparse_categorical_accuracy: 0.9045
Epoch 2/3
782/782 [==============================] - 3s 3ms/step - loss: 0.1710 - sparse_categorical_accuracy: 0.9529
Epoch 3/3
782/782 [==============================] - 3s 3ms/step - loss: 0.1244 - sparse_categorical_accuracy: 0.9652

<tensorflow.python.keras.callbacks.History at 0x7f3ae0218da0>

Passing data to multi-input, multi-output models

In the previous examples, we were considering a model with a single input (a tensor of shape (764,)) and a single output (a prediction tensor of shape (10,)). But what about models that have multiple inputs or outputs?

Consider the following model, which has an image input of shape (32, 32, 3) (that's (height, width, channels)) and a timeseries input of shape (None, 10) (that's (timesteps, features)). Our model will have two outputs computed from the combination of these inputs: a "score" (of shape (1,)) and a probability distribution over five classes (of shape (5,)).

from tensorflow import keras
from tensorflow.keras import layers

image_input = keras.Input(shape=(32, 32, 3), name='img_input')
timeseries_input = keras.Input(shape=(None, 10), name='ts_input')

x1 = layers.Conv2D(3, 3)(image_input)
x1 = layers.GlobalMaxPooling2D()(x1)

x2 = layers.Conv1D(3, 3)(timeseries_input)
x2 = layers.GlobalMaxPooling1D()(x2)

x = layers.concatenate([x1, x2])

score_output = layers.Dense(1, name='score_output')(x)
class_output = layers.Dense(5, activation='softmax', name='class_output')(x)

model = keras.Model(inputs=[image_input, timeseries_input],
                    outputs=[score_output, class_output])

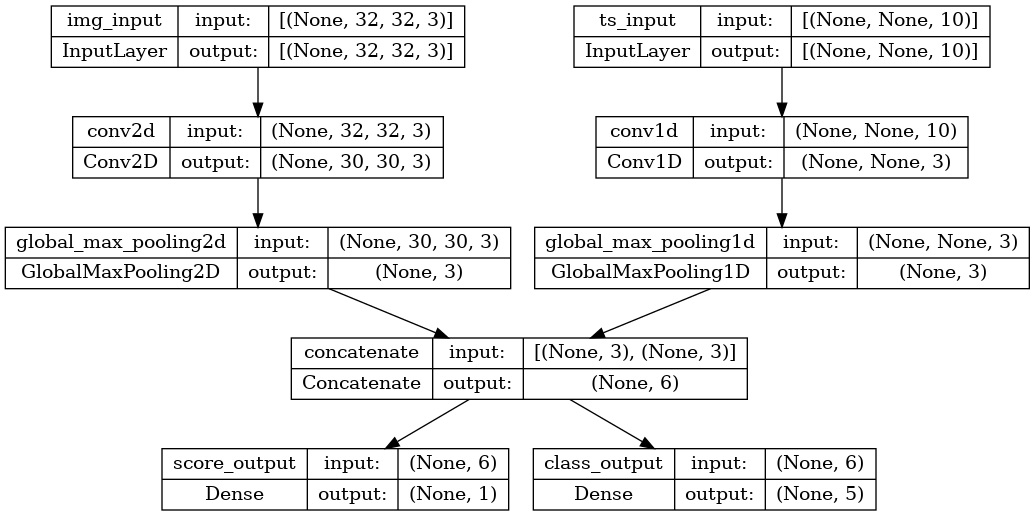

Let's plot this model, so you can clearly see what we're doing here (note that the shapes shown in the plot are batch shapes, rather than per-sample shapes).

keras.utils.plot_model(model, 'multi_input_and_output_model.png', show_shapes=True)

At compilation time, we can specify different losses to different outputs, by passing the loss functions as a list:

model.compile(
    optimizer=keras.optimizers.RMSprop(1e-3),
    loss=[keras.losses.MeanSquaredError(),
          keras.losses.CategoricalCrossentropy()])

If we only passed a single loss function to the model, the same loss function would be applied to every output, which is not appropriate here.

Likewise for metrics:

model.compile(
    optimizer=keras.optimizers.RMSprop(1e-3),
    loss=[keras.losses.MeanSquaredError(),
          keras.losses.CategoricalCrossentropy()],
    metrics=[[keras.metrics.MeanAbsolutePercentageError(),
              keras.metrics.MeanAbsoluteError()],
             [keras.metrics.CategoricalAccuracy()]])

Since we gave names to our output layers, we could also specify per-output losses and metrics via a dict:

model.compile(
    optimizer=keras.optimizers.RMSprop(1e-3),
    loss={'score_output': keras.losses.MeanSquaredError(),
          'class_output': keras.losses.CategoricalCrossentropy()},
    metrics={'score_output': [keras.metrics.MeanAbsolutePercentageError(),
                              keras.metrics.MeanAbsoluteError()],
             'class_output': [keras.metrics.CategoricalAccuracy()]})

We recommend the use of explicit names and dicts if you have more than 2 outputs.

It's possible to give different weights to different output-specific losses (for instance, one might wish to privilege the "score" loss in our example, by giving to 2x the importance of the class loss), using the loss_weights argument:

model.compile(
    optimizer=keras.optimizers.RMSprop(1e-3),
    loss={'score_output': keras.losses.MeanSquaredError(),
          'class_output': keras.losses.CategoricalCrossentropy()},
    metrics={'score_output': [keras.metrics.MeanAbsolutePercentageError(),
                              keras.metrics.MeanAbsoluteError()],
             'class_output': [keras.metrics.CategoricalAccuracy()]},
    loss_weights={'score_output': 2., 'class_output': 1.})

You could also chose not to compute a loss for certain outputs, if these outputs meant for prediction but not for training:

# List loss version
model.compile(
    optimizer=keras.optimizers.RMSprop(1e-3),
    loss=[None, keras.losses.CategoricalCrossentropy()])

# Or dict loss version
model.compile(
    optimizer=keras.optimizers.RMSprop(1e-3),
    loss={'class_output': keras.losses.CategoricalCrossentropy()})

WARNING:tensorflow:Output score_output missing from loss dictionary. We assume this was done on purpose. The fit and evaluate APIs will not be expecting any data to be passed to score_output.

Passing data to a multi-input or multi-output model in fit works in a similar way as specifying a loss function in compile: you can pass lists of Numpy arrays (with 1:1 mapping to the outputs that received a loss function) or dicts mapping output names to Numpy arrays of training data.

model.compile(
    optimizer=keras.optimizers.RMSprop(1e-3),
    loss=[keras.losses.MeanSquaredError(),
          keras.losses.CategoricalCrossentropy()])

# Generate dummy Numpy data
img_data = np.random.random_sample(size=(100, 32, 32, 3))
ts_data = np.random.random_sample(size=(100, 20, 10))
score_targets = np.random.random_sample(size=(100, 1))
class_targets = np.random.random_sample(size=(100, 5))

# Fit on lists
model.fit([img_data, ts_data], [score_targets, class_targets],
          batch_size=32,
          epochs=3)

# Alternatively, fit on dicts
model.fit({'img_input': img_data, 'ts_input': ts_data},
          {'score_output': score_targets, 'class_output': class_targets},
          batch_size=32,
          epochs=3)

Train on 100 samples
Epoch 1/3
100/100 [==============================] - 3s 28ms/sample - loss: 7.5105 - score_output_loss: 2.7916 - class_output_loss: 4.5724
Epoch 2/3
100/100 [==============================] - 0s 210us/sample - loss: 6.5208 - score_output_loss: 1.7519 - class_output_loss: 4.8270
Epoch 3/3
100/100 [==============================] - 0s 202us/sample - loss: 6.0499 - score_output_loss: 1.0947 - class_output_loss: 5.2064
Train on 100 samples
Epoch 1/3
100/100 [==============================] - 0s 307us/sample - loss: 5.7626 - score_output_loss: 0.8008 - class_output_loss: 4.9479
Epoch 2/3
100/100 [==============================] - 0s 200us/sample - loss: 5.5649 - score_output_loss: 0.6005 - class_output_loss: 4.7794
Epoch 3/3
100/100 [==============================] - 0s 188us/sample - loss: 5.4176 - score_output_loss: 0.4619 - class_output_loss: 5.0290

<tensorflow.python.keras.callbacks.History at 0x7f36f6f996a0>

Here's the Dataset use case: similarly as what we did for Numpy arrays, the Dataset should return a tuple of dicts.

train_dataset = tf.data.Dataset.from_tensor_slices(
    ({'img_input': img_data, 'ts_input': ts_data},
     {'score_output': score_targets, 'class_output': class_targets}))
train_dataset = train_dataset.shuffle(buffer_size=1024).batch(64)

model.fit(train_dataset, epochs=3)

Epoch 1/3
2/2 [==============================] - 0s 238ms/step - loss: 5.4252 - score_output_loss: 0.3387 - class_output_loss: 5.0865
Epoch 2/3
2/2 [==============================] - 0s 12ms/step - loss: 5.2802 - score_output_loss: 0.2856 - class_output_loss: 5.0243
Epoch 3/3
2/2 [==============================] - 0s 10ms/step - loss: 5.2754 - score_output_loss: 0.2699 - class_output_loss: 4.9820

<tensorflow.python.keras.callbacks.History at 0x7f36fc3cb048>

Using callbacks

Callbacks in Keras are objects that are called at different point during training (at the start of an epoch, at the end of a batch, at the end of an epoch, etc.) and which can be used to implement behaviors such as:

• Doing validation at different points during training (beyond the built-in per-epoch validation)
• Checkpointing the model at regular intervals or when it exceeds a certain accuracy threshold
• Changing the learning rate of the model when training seems to be plateauing
• Doing fine-tuning of the top layers when training seems to be plateauing
• Sending email or instant message notifications when training ends or where a certain performance threshold is exceeded
• Etc.

Callbacks can be passed as a list to your call to fit:

model = get_compiled_model()

callbacks = [
    keras.callbacks.EarlyStopping(
        # Stop training when `val_loss` is no longer improving
        monitor='val_loss',
        # "no longer improving" being defined as "no better than 1e-2 less"
        min_delta=1e-2,
        # "no longer improving" being further defined as "for at least 2 epochs"
        patience=2,
        verbose=1)
]
model.fit(x_train, y_train,
          epochs=20,
          batch_size=64,
          callbacks=callbacks,
          validation_split=0.2)

Train on 40000 samples, validate on 10000 samples
Epoch 1/20
40000/40000 [==============================] - 3s 64us/sample - loss: 0.3884 - sparse_categorical_accuracy: 0.8889 - val_loss: 0.2472 - val_sparse_categorical_accuracy: 0.9264
Epoch 2/20
40000/40000 [==============================] - 2s 43us/sample - loss: 0.1775 - sparse_categorical_accuracy: 0.9481 - val_loss: 0.1777 - val_sparse_categorical_accuracy: 0.9472
Epoch 3/20
40000/40000 [==============================] - 2s 43us/sample - loss: 0.1276 - sparse_categorical_accuracy: 0.9624 - val_loss: 0.1595 - val_sparse_categorical_accuracy: 0.9520
Epoch 4/20
40000/40000 [==============================] - 2s 44us/sample - loss: 0.1009 - sparse_categorical_accuracy: 0.9694 - val_loss: 0.1451 - val_sparse_categorical_accuracy: 0.9598
Epoch 5/20
40000/40000 [==============================] - 2s 44us/sample - loss: 0.0826 - sparse_categorical_accuracy: 0.9748 - val_loss: 0.1361 - val_sparse_categorical_accuracy: 0.9607
Epoch 6/20
40000/40000 [==============================] - 2s 44us/sample - loss: 0.0709 - sparse_categorical_accuracy: 0.9786 - val_loss: 0.1339 - val_sparse_categorical_accuracy: 0.9622
Epoch 7/20
40000/40000 [==============================] - 2s 43us/sample - loss: 0.0603 - sparse_categorical_accuracy: 0.9815 - val_loss: 0.1459 - val_sparse_categorical_accuracy: 0.9599
Epoch 8/20
40000/40000 [==============================] - 2s 44us/sample - loss: 0.0525 - sparse_categorical_accuracy: 0.9844 - val_loss: 0.1366 - val_sparse_categorical_accuracy: 0.9657
Epoch 00008: early stopping

<tensorflow.python.keras.callbacks.History at 0x7f36f40f3c88>

Many built-in callbacks are available

• ModelCheckpoint: Periodically save the model.
• EarlyStopping: Stop training when training is no longer improving the validation metrics.
• TensorBoard: periodically write model logs that can be visualized in TensorBoard (more details in the section "Visualization").
• CSVLogger: streams loss and metrics data to a CSV file.
• etc.

Writing your own callback

You can create a custom callback by extending the base class keras.callbacks.Callback. A callback has access to its associated model through the class property self.model.

Here's a simple example saving a list of per-batch loss values during training:

class LossHistory(keras.callbacks.Callback):

    def on_train_begin(self, logs):
        self.losses = []

    def on_batch_end(self, batch, logs):
        self.losses.append(logs.get('loss'))

Checkpointing models

When you're training model on relatively large datasets, it's crucial to save checkpoints of your model at frequent intervals.

The easiest way to achieve this is with the ModelCheckpoint callback:

model = get_compiled_model()

callbacks = [
    keras.callbacks.ModelCheckpoint(
        filepath='mymodel_{epoch}.h5',
        # Path where to save the model
        # The two parameters below mean that we will overwrite
        # the current checkpoint if and only if
        # the `val_loss` score has improved.
        save_best_only=True,
        monitor='val_loss',
        verbose=1)
]
model.fit(x_train, y_train,
          epochs=3,
          batch_size=64,
          callbacks=callbacks,
          validation_split=0.2)

Train on 40000 samples, validate on 10000 samples
Epoch 1/3
39872/40000 [============================>.] - ETA: 0s - loss: 0.3715 - sparse_categorical_accuracy: 0.8971
Epoch 00001: val_loss improved from inf to 0.22463, saving model to mymodel_1.h5
40000/40000 [==============================] - 2s 55us/sample - loss: 0.3713 - sparse_categorical_accuracy: 0.8971 - val_loss: 0.2246 - val_sparse_categorical_accuracy: 0.9329
Epoch 2/3
38592/40000 [===========================>..] - ETA: 0s - loss: 0.1751 - sparse_categorical_accuracy: 0.9485
Epoch 00002: val_loss improved from 0.22463 to 0.19152, saving model to mymodel_2.h5
40000/40000 [==============================] - 2s 44us/sample - loss: 0.1743 - sparse_categorical_accuracy: 0.9490 - val_loss: 0.1915 - val_sparse_categorical_accuracy: 0.9436
Epoch 3/3
38592/40000 [===========================>..] - ETA: 0s - loss: 0.1279 - sparse_categorical_accuracy: 0.9621
Epoch 00003: val_loss improved from 0.19152 to 0.15396, saving model to mymodel_3.h5
40000/40000 [==============================] - 2s 44us/sample - loss: 0.1279 - sparse_categorical_accuracy: 0.9620 - val_loss: 0.1540 - val_sparse_categorical_accuracy: 0.9558

<tensorflow.python.keras.callbacks.History at 0x7f36ec1ba550>

You call also write your own callback for saving and restoring models.

For a complete guide on serialization and saving, see Guide to Saving and Serializing Models.

Using learning rate schedules

A common pattern when training deep learning models is to gradually reduce the learning as training progresses. This is generally known as "learning rate decay".

The learning decay schedule could be static (fixed in advance, as a function of the current epoch or the current batch index), or dynamic (responding to the current behavior of the model, in particular the validation loss).

Passing a schedule to an optimizer

You can easily use a static learning rate decay schedule by passing a schedule object as the learning_rate argument in your optimizer:

initial_learning_rate = 0.1
lr_schedule = keras.optimizers.schedules.ExponentialDecay(
    initial_learning_rate,
    decay_steps=100000,
    decay_rate=0.96,
    staircase=True)

optimizer = keras.optimizers.RMSprop(learning_rate=lr_schedule)

Several built-in schedules are available: ExponentialDecay, PiecewiseConstantDecay, PolynomialDecay, and InverseTimeDecay.

Using callbacks to implement a dynamic learning rate schedule

A dynamic learning rate schedule (for instance, decreasing the learning rate when the validation loss is no longer improving) cannot be achieved with these schedule objects since the optimizer does not have access to validation metrics.

However, callbacks do have access to all metrics, including validation metrics! You can thus achieve this pattern by using a callback that modifies the current learning rate on the optimizer. In fact, this is even built-in as the ReduceLROnPlateau callback.

Visualizing loss and metrics during training

The best way to keep an eye on your model during training is to use TensorBoard, a browser-based application that you can run locally that provides you with:

• Live plots of the loss and metrics for training and evaluation
• (optionally) Visualizations of the histograms of your layer activations
• (optionally) 3D visualizations of the embedding spaces learned by your Embedding layers

If you have installed TensorFlow with pip, you should be able to launch TensorBoard from the command line:

tensorboard --logdir=/full_path_to_your_logs

Using the TensorBoard callback

The easiest way to use TensorBoard with a Keras model and the fit method is the TensorBoard callback.

In the simplest case, just specify where you want the callback to write logs, and you're good to go:

tensorboard_cbk = keras.callbacks.TensorBoard(log_dir='/full_path_to_your_logs')
model.fit(dataset, epochs=10, callbacks=[tensorboard_cbk])

The TensorBoard callback has many useful options, including whether to log embeddings, histograms, and how often to write logs:

keras.callbacks.TensorBoard(
  log_dir='/full_path_to_your_logs',
  histogram_freq=0,  # How often to log histogram visualizations
  embeddings_freq=0,  # How often to log embedding visualizations
  update_freq='epoch')  # How often to write logs (default: once per epoch)

Part II: Writing your own training & evaluation loops from scratch

If you want lower-level over your training & evaluation loops than what fit() and evaluate() provide, you should write your own. It's actually pretty simple! But you should be ready to have a lot more debugging to do on your own.

Using the GradientTape: a first end-to-end example

Calling a model inside a GradientTape scope enables you to retrieve the gradients of the trainable weights of the layer with respect to a loss value. Using an optimizer instance, you can use these gradients to update these variables (which you can retrieve using model.trainable_weights).

Let's reuse our initial MNIST model from Part I, and let's train it using mini-batch gradient with a custom training loop.

# Get the model.
inputs = keras.Input(shape=(784,), name='digits')
x = layers.Dense(64, activation='relu', name='dense_1')(inputs)
x = layers.Dense(64, activation='relu', name='dense_2')(x)
outputs = layers.Dense(10, activation='softmax', name='predictions')(x)
model = keras.Model(inputs=inputs, outputs=outputs)

# Instantiate an optimizer.
optimizer = keras.optimizers.SGD(learning_rate=1e-3)
# Instantiate a loss function.
loss_fn = keras.losses.SparseCategoricalCrossentropy()

# Prepare the training dataset.
batch_size = 64
train_dataset = tf.data.Dataset.from_tensor_slices((x_train, y_train))
train_dataset = train_dataset.shuffle(buffer_size=1024).batch(batch_size)

# Iterate over epochs.
epochs = 3
for epoch in range(epochs):
  print('Start of epoch %d' % (epoch,))

  # Iterate over the batches of the dataset.
  for step, (x_batch_train, y_batch_train) in enumerate(train_dataset):

    # Open a GradientTape to record the operations run
    # during the forward pass, which enables autodifferentiation.
    with tf.GradientTape() as tape:

      # Run the forward pass of the layer.
      # The operations that the layer applies
      # to its inputs are going to be recorded
      # on the GradientTape.
      logits = model(x_batch_train)  # Logits for this minibatch

      # Compute the loss value for this minibatch.
      loss_value = loss_fn(y_batch_train, logits)

    # Use the gradient tape to automatically retrieve
    # the gradients of the trainable variables with respect to the loss.
    grads = tape.gradient(loss_value, model.trainable_weights)

    # Run one step of gradient descent by updating
    # the value of the variables to minimize the loss.
    optimizer.apply_gradients(zip(grads, model.trainable_weights))

    # Log every 200 batches.
    if step % 200 == 0:
        print('Training loss (for one batch) at step %s: %s' % (step, float(loss_value)))
        print('Seen so far: %s samples' % ((step + 1) * 64))

Start of epoch 0
Training loss (for one batch) at step 0: 2.3747615814208984
Seen so far: 64 samples
Training loss (for one batch) at step 200: 2.264816999435425
Seen so far: 12864 samples
Training loss (for one batch) at step 400: 2.1977667808532715
Seen so far: 25664 samples
Training loss (for one batch) at step 600: 2.085158586502075
Seen so far: 38464 samples
Start of epoch 1
Training loss (for one batch) at step 0: 2.0625901222229004
Seen so far: 64 samples
Training loss (for one batch) at step 200: 1.97736656665802
Seen so far: 12864 samples
Training loss (for one batch) at step 400: 1.9285550117492676
Seen so far: 25664 samples
Training loss (for one batch) at step 600: 1.7810806035995483
Seen so far: 38464 samples
Start of epoch 2
Training loss (for one batch) at step 0: 1.7103501558303833
Seen so far: 64 samples
Training loss (for one batch) at step 200: 1.4607808589935303
Seen so far: 12864 samples
Training loss (for one batch) at step 400: 1.5318548679351807
Seen so far: 25664 samples
Training loss (for one batch) at step 600: 1.3345484733581543
Seen so far: 38464 samples

Low-level handling of metrics

Let's add metrics to the mix. You can readily reuse the built-in metrics (or custom ones you wrote) in such training loops written from scratch. Here's the flow:

• Instantiate the metric at the start of the loop
• Call metric.update_state() after each batch
• Call metric.result() when you need to display the current value of the metric
• Call metric.reset_states() when you need to clear the state of the metric (typically at the end of an epoch)

Let's use this knowledge to compute SparseCategoricalAccuracy on validation data at the end of each epoch:

# Get model
inputs = keras.Input(shape=(784,), name='digits')
x = layers.Dense(64, activation='relu', name='dense_1')(inputs)
x = layers.Dense(64, activation='relu', name='dense_2')(x)
outputs = layers.Dense(10, activation='softmax', name='predictions')(x)
model = keras.Model(inputs=inputs, outputs=outputs)

# Instantiate an optimizer to train the model.
optimizer = keras.optimizers.SGD(learning_rate=1e-3)
# Instantiate a loss function.
loss_fn = keras.losses.SparseCategoricalCrossentropy()

# Prepare the metrics.
train_acc_metric = keras.metrics.SparseCategoricalAccuracy()
val_acc_metric = keras.metrics.SparseCategoricalAccuracy()

# Prepare the training dataset.
batch_size = 64
train_dataset = tf.data.Dataset.from_tensor_slices((x_train, y_train))
train_dataset = train_dataset.shuffle(buffer_size=1024).batch(batch_size)

# Prepare the validation dataset.
val_dataset = tf.data.Dataset.from_tensor_slices((x_val, y_val))
val_dataset = val_dataset.batch(64)


# Iterate over epochs.
epochs = 3
for epoch in range(epochs):
  print('Start of epoch %d' % (epoch,))

  # Iterate over the batches of the dataset.
  for step, (x_batch_train, y_batch_train) in enumerate(train_dataset):
    with tf.GradientTape() as tape:
      logits = model(x_batch_train)
      loss_value = loss_fn(y_batch_train, logits)
    grads = tape.gradient(loss_value, model.trainable_weights)
    optimizer.apply_gradients(zip(grads, model.trainable_weights))

    # Update training metric.
    train_acc_metric(y_batch_train, logits)

    # Log every 200 batches.
    if step % 200 == 0:
        print('Training loss (for one batch) at step %s: %s' % (step, float(loss_value)))
        print('Seen so far: %s samples' % ((step + 1) * 64))

  # Display metrics at the end of each epoch.
  train_acc = train_acc_metric.result()
  print('Training acc over epoch: %s' % (float(train_acc),))
  # Reset training metrics at the end of each epoch
  train_acc_metric.reset_states()

  # Run a validation loop at the end of each epoch.
  for x_batch_val, y_batch_val in val_dataset:
    val_logits = model(x_batch_val)
    # Update val metrics
    val_acc_metric(y_batch_val, val_logits)
  val_acc = val_acc_metric.result()
  val_acc_metric.reset_states()
  print('Validation acc: %s' % (float(val_acc),))

Start of epoch 0
Training loss (for one batch) at step 0: 2.32742977142334
Seen so far: 64 samples
Training loss (for one batch) at step 200: 2.27957820892334
Seen so far: 12864 samples
Training loss (for one batch) at step 400: 2.223424196243286
Seen so far: 25664 samples
Training loss (for one batch) at step 600: 2.1545217037200928
Seen so far: 38464 samples
Training acc over epoch: 0.22378000617027283
Validation acc: 0.3995000123977661
Start of epoch 1
Training loss (for one batch) at step 0: 2.0469183921813965
Seen so far: 64 samples
Training loss (for one batch) at step 200: 1.9954742193222046
Seen so far: 12864 samples
Training loss (for one batch) at step 400: 1.8717031478881836
Seen so far: 25664 samples
Training loss (for one batch) at step 600: 1.8559406995773315
Seen so far: 38464 samples
Training acc over epoch: 0.5212399959564209
Validation acc: 0.6148999929428101
Start of epoch 2
Training loss (for one batch) at step 0: 1.8021643161773682
Seen so far: 64 samples
Training loss (for one batch) at step 200: 1.7000391483306885
Seen so far: 12864 samples
Training loss (for one batch) at step 400: 1.4835299253463745
Seen so far: 25664 samples
Training loss (for one batch) at step 600: 1.3361830711364746
Seen so far: 38464 samples
Training acc over epoch: 0.6601999998092651
Validation acc: 0.7210999727249146

Low-level handling of extra losses

You saw in the previous section that it is possible for regularization losses to be added by a layer by calling self.add_loss(value) in the call method.

In the general case, you will want to take these losses into account in your custom training loops (unless you've written the model yourself and you already know that it creates no such losses).

Recall this example from the previous section, featuring a layer that creates a regularization loss:

class ActivityRegularizationLayer(layers.Layer):

  def call(self, inputs):
    self.add_loss(1e-2 * tf.reduce_sum(inputs))
    return inputs

inputs = keras.Input(shape=(784,), name='digits')
x = layers.Dense(64, activation='relu', name='dense_1')(inputs)
# Insert activity regularization as a layer
x = ActivityRegularizationLayer()(x)
x = layers.Dense(64, activation='relu', name='dense_2')(x)
outputs = layers.Dense(10, activation='softmax', name='predictions')(x)

model = keras.Model(inputs=inputs, outputs=outputs)

When you call a model, like this:

logits = model(x_train)

the losses it creates during the forward pass are added to the model.losses attribute:

logits = model(x_train[:64])
print(model.losses)

[<tf.Tensor: id=624847, shape=(), dtype=float32, numpy=7.6811996>]

The tracked losses are first cleared at the start of the model __call__, so you will only see the losses created during this one forward pass. For instance, calling the model repeatedly and then querying losses only displays the latest losses, created during the last call:

logits = model(x_train[:64])
logits = model(x_train[64: 128])
logits = model(x_train[128: 192])
print(model.losses)

[<tf.Tensor: id=624907, shape=(), dtype=float32, numpy=7.5797887>]

To take these losses into account during training, all you have to do is to modify your training loop to add sum(model.losses) to your total loss:

optimizer = keras.optimizers.SGD(learning_rate=1e-3)

epochs = 3
for epoch in range(epochs):
  print('Start of epoch %d' % (epoch,))

  for step, (x_batch_train, y_batch_train) in enumerate(train_dataset):
    with tf.GradientTape() as tape:
      logits = model(x_batch_train)
      loss_value = loss_fn(y_batch_train, logits)

      # Add extra losses created during this forward pass:
      loss_value += sum(model.losses)

    grads = tape.gradient(loss_value, model.trainable_weights)
    optimizer.apply_gradients(zip(grads, model.trainable_weights))

    # Log every 200 batches.
    if step % 200 == 0:
        print('Training loss (for one batch) at step %s: %s' % (step, float(loss_value)))
        print('Seen so far: %s samples' % ((step + 1) * 64))

Start of epoch 0
Training loss (for one batch) at step 0: 10.064319610595703
Seen so far: 64 samples
Training loss (for one batch) at step 200: 2.5281362533569336
Seen so far: 12864 samples
Training loss (for one batch) at step 400: 2.400449275970459
Seen so far: 25664 samples
Training loss (for one batch) at step 600: 2.380073308944702
Seen so far: 38464 samples
Start of epoch 1
Training loss (for one batch) at step 0: 2.3233108520507812
Seen so far: 64 samples
Training loss (for one batch) at step 200: 2.325932025909424
Seen so far: 12864 samples
Training loss (for one batch) at step 400: 2.326887845993042
Seen so far: 25664 samples
Training loss (for one batch) at step 600: 2.3155736923217773
Seen so far: 38464 samples
Start of epoch 2
Training loss (for one batch) at step 0: 2.3195061683654785
Seen so far: 64 samples
Training loss (for one batch) at step 200: 2.316711187362671
Seen so far: 12864 samples
Training loss (for one batch) at step 400: 2.3118293285369873
Seen so far: 25664 samples
Training loss (for one batch) at step 600: 2.311530828475952
Seen so far: 38464 samples

That was the last piece of the puzzle! You've reached the end of this guide.

Now you know everything there is to know about using built-in training loops and writing your own from scratch.
