Generazione di immagini con BigGAN

Visualizza su TensorFlow.org Esegui in Google Colab Visualizza su GitHub Scarica taccuino Vedi i modelli di mozzo TF

Questo notebook è una demo per i generatori di immagini BigGAN disponibili su TF Hub .

Vedere la carta BigGAN su arXiv per ulteriori informazioni su questi modelli [1].

Dopo esserti connesso a un runtime, inizia seguendo queste istruzioni:

  1. (Facoltativo) Aggiornamento selezionato module_path nella prima cella codice sottostante per caricare un generatore BigGAN di risoluzione dell'immagine diversa.
  2. Clicca Runtime> Esegui tutto per eseguire ogni cella in ordine.
    • Successivamente, le visualizzazioni interattive dovrebbero aggiornarsi automaticamente quando si modificano le impostazioni utilizzando i dispositivi di scorrimento e i menu a discesa.
    • Altrimenti, premere il pulsante Play dalla cellula per re-rendering uscite manualmente.

[1] Andrew Brock, Jeff Donahue e Karen Simonyan. Large Scale GAN di formazione per High Fidelity naturale immagine di sintesi . arXiv: 1.809,11,096 mila, 2018.

Innanzitutto, imposta il percorso del modulo. Per default, si carica il generatore BigGAN-profondo per 256x256 immagini da https://tfhub.dev/deepmind/biggan-deep-256/1 . Per generare 128x128 o 512x512 le immagini o per utilizzare i generatori originali BigGAN, commentare la attiva module_path impostazione e uno rimuovere il commento degli altri.

# BigGAN-deep models
# module_path = 'https://tfhub.dev/deepmind/biggan-deep-128/1'  # 128x128 BigGAN-deep
module_path = 'https://tfhub.dev/deepmind/biggan-deep-256/1'  # 256x256 BigGAN-deep
# module_path = 'https://tfhub.dev/deepmind/biggan-deep-512/1'  # 512x512 BigGAN-deep

# BigGAN (original) models
# module_path = 'https://tfhub.dev/deepmind/biggan-128/2'  # 128x128 BigGAN
# module_path = 'https://tfhub.dev/deepmind/biggan-256/2'  # 256x256 BigGAN
# module_path = 'https://tfhub.dev/deepmind/biggan-512/2'  # 512x512 BigGAN

Impostare

import tensorflow.compat.v1 as tf
tf.disable_v2_behavior()

import os
import io
import IPython.display
import numpy as np
import PIL.Image
from scipy.stats import truncnorm
import tensorflow_hub as hub
2021-07-29 11:37:01.516943: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcudart.so.11.0
WARNING:tensorflow:From /tmpfs/src/tf_docs_env/lib/python3.7/site-packages/tensorflow/python/compat/v2_compat.py:96: disable_resource_variables (from tensorflow.python.ops.variable_scope) is deprecated and will be removed in a future version.
Instructions for updating:
non-resource variables are not supported in the long term

Carica un modulo generatore BigGAN da TF Hub

tf.reset_default_graph()
print('Loading BigGAN module from:', module_path)
module = hub.Module(module_path)
inputs = {k: tf.placeholder(v.dtype, v.get_shape().as_list(), k)
          for k, v in module.get_input_info_dict().items()}
output = module(inputs)

print()
print('Inputs:\n', '\n'.join(
    '  {}: {}'.format(*kv) for kv in inputs.items()))
print()
print('Output:', output)
Loading BigGAN module from: https://tfhub.dev/deepmind/biggan-deep-256/1
INFO:tensorflow:Saver not created because there are no variables in the graph to restore
INFO:tensorflow:Saver not created because there are no variables in the graph to restore
Inputs:
   truncation: Tensor("truncation:0", shape=(), dtype=float32)
  z: Tensor("z:0", shape=(?, 128), dtype=float32)
  y: Tensor("y:0", shape=(?, 1000), dtype=float32)

Output: Tensor("module_apply_default/G_trunc_output:0", shape=(?, 256, 256, 3), dtype=float32)

Definire alcune funzioni per il campionamento e la visualizzazione di immagini BigGAN

input_z = inputs['z']
input_y = inputs['y']
input_trunc = inputs['truncation']

dim_z = input_z.shape.as_list()[1]
vocab_size = input_y.shape.as_list()[1]

def truncated_z_sample(batch_size, truncation=1., seed=None):
  state = None if seed is None else np.random.RandomState(seed)
  values = truncnorm.rvs(-2, 2, size=(batch_size, dim_z), random_state=state)
  return truncation * values

def one_hot(index, vocab_size=vocab_size):
  index = np.asarray(index)
  if len(index.shape) == 0:
    index = np.asarray([index])
  assert len(index.shape) == 1
  num = index.shape[0]
  output = np.zeros((num, vocab_size), dtype=np.float32)
  output[np.arange(num), index] = 1
  return output

def one_hot_if_needed(label, vocab_size=vocab_size):
  label = np.asarray(label)
  if len(label.shape) <= 1:
    label = one_hot(label, vocab_size)
  assert len(label.shape) == 2
  return label

def sample(sess, noise, label, truncation=1., batch_size=8,
           vocab_size=vocab_size):
  noise = np.asarray(noise)
  label = np.asarray(label)
  num = noise.shape[0]
  if len(label.shape) == 0:
    label = np.asarray([label] * num)
  if label.shape[0] != num:
    raise ValueError('Got # noise samples ({}) != # label samples ({})'
                     .format(noise.shape[0], label.shape[0]))
  label = one_hot_if_needed(label, vocab_size)
  ims = []
  for batch_start in range(0, num, batch_size):
    s = slice(batch_start, min(num, batch_start + batch_size))
    feed_dict = {input_z: noise[s], input_y: label[s], input_trunc: truncation}
    ims.append(sess.run(output, feed_dict=feed_dict))
  ims = np.concatenate(ims, axis=0)
  assert ims.shape[0] == num
  ims = np.clip(((ims + 1) / 2.0) * 256, 0, 255)
  ims = np.uint8(ims)
  return ims

def interpolate(A, B, num_interps):
  if A.shape != B.shape:
    raise ValueError('A and B must have the same shape to interpolate.')
  alphas = np.linspace(0, 1, num_interps)
  return np.array([(1-a)*A + a*B for a in alphas])

def imgrid(imarray, cols=5, pad=1):
  if imarray.dtype != np.uint8:
    raise ValueError('imgrid input imarray must be uint8')
  pad = int(pad)
  assert pad >= 0
  cols = int(cols)
  assert cols >= 1
  N, H, W, C = imarray.shape
  rows = N // cols + int(N % cols != 0)
  batch_pad = rows * cols - N
  assert batch_pad >= 0
  post_pad = [batch_pad, pad, pad, 0]
  pad_arg = [[0, p] for p in post_pad]
  imarray = np.pad(imarray, pad_arg, 'constant', constant_values=255)
  H += pad
  W += pad
  grid = (imarray
          .reshape(rows, cols, H, W, C)
          .transpose(0, 2, 1, 3, 4)
          .reshape(rows*H, cols*W, C))
  if pad:
    grid = grid[:-pad, :-pad]
  return grid

def imshow(a, format='png', jpeg_fallback=True):
  a = np.asarray(a, dtype=np.uint8)
  data = io.BytesIO()
  PIL.Image.fromarray(a).save(data, format)
  im_data = data.getvalue()
  try:
    disp = IPython.display.display(IPython.display.Image(im_data))
  except IOError:
    if jpeg_fallback and format != 'jpeg':
      print(('Warning: image was too large to display in format "{}"; '
             'trying jpeg instead.').format(format))
      return imshow(a, format='jpeg')
    else:
      raise
  return disp

Crea una sessione TensorFlow e inizializza le variabili

initializer = tf.global_variables_initializer()
sess = tf.Session()
sess.run(initializer)
2021-07-29 11:37:43.562413: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcuda.so.1
2021-07-29 11:37:44.224730: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:937] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2021-07-29 11:37:44.225721: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1733] Found device 0 with properties:
pciBusID: 0000:00:05.0 name: Tesla V100-SXM2-16GB computeCapability: 7.0
coreClock: 1.53GHz coreCount: 80 deviceMemorySize: 15.78GiB deviceMemoryBandwidth: 836.37GiB/s
2021-07-29 11:37:44.225762: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcudart.so.11.0
2021-07-29 11:37:44.230569: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcublas.so.11
2021-07-29 11:37:44.230698: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcublasLt.so.11
2021-07-29 11:37:44.232415: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcufft.so.10
2021-07-29 11:37:44.232824: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcurand.so.10
2021-07-29 11:37:44.234426: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcusolver.so.11
2021-07-29 11:37:44.235944: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcusparse.so.11
2021-07-29 11:37:44.236164: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcudnn.so.8
2021-07-29 11:37:44.236287: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:937] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2021-07-29 11:37:44.237341: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:937] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2021-07-29 11:37:44.238306: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1871] Adding visible gpu devices: 0
2021-07-29 11:37:44.239179: I tensorflow/core/platform/cpu_feature_guard.cc:142] This TensorFlow binary is optimized with oneAPI Deep Neural Network Library (oneDNN) to use the following CPU instructions in performance-critical operations:  AVX2 AVX512F FMA
To enable them in other operations, rebuild TensorFlow with the appropriate compiler flags.
2021-07-29 11:37:44.239776: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:937] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2021-07-29 11:37:44.240787: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1733] Found device 0 with properties:
pciBusID: 0000:00:05.0 name: Tesla V100-SXM2-16GB computeCapability: 7.0
coreClock: 1.53GHz coreCount: 80 deviceMemorySize: 15.78GiB deviceMemoryBandwidth: 836.37GiB/s
2021-07-29 11:37:44.240912: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:937] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2021-07-29 11:37:44.241984: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:937] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2021-07-29 11:37:44.242953: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1871] Adding visible gpu devices: 0
2021-07-29 11:37:44.243021: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcudart.so.11.0
2021-07-29 11:37:44.761133: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1258] Device interconnect StreamExecutor with strength 1 edge matrix:
2021-07-29 11:37:44.761183: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1264]      0
2021-07-29 11:37:44.761192: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1277] 0:   N
2021-07-29 11:37:44.761484: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:937] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2021-07-29 11:37:44.762595: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:937] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2021-07-29 11:37:44.763761: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:937] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2021-07-29 11:37:44.764773: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1418] Created TensorFlow device (/job:localhost/replica:0/task:0/device:GPU:0 with 14646 MB memory) -> physical GPU (device: 0, name: Tesla V100-SXM2-16GB, pci bus id: 0000:00:05.0, compute capability: 7.0)
2021-07-29 11:37:49.566223: I tensorflow/core/platform/profile_utils/cpu_utils.cc:114] CPU Frequency: 2000179999 Hz

Esplora campioni BigGAN di una particolare categoria

Provate a variare il truncation del valore.

(Fare doppio clic sulla cella per visualizzare il codice.)

Campionamento condizionale di categoria

2021-07-29 11:37:57.820745: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcublas.so.11
2021-07-29 11:37:58.225730: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcublasLt.so.11
2021-07-29 11:37:58.247811: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcudnn.so.8
2021-07-29 11:37:58.644750: I tensorflow/stream_executor/cuda/cuda_dnn.cc:359] Loaded cuDNN version 8100

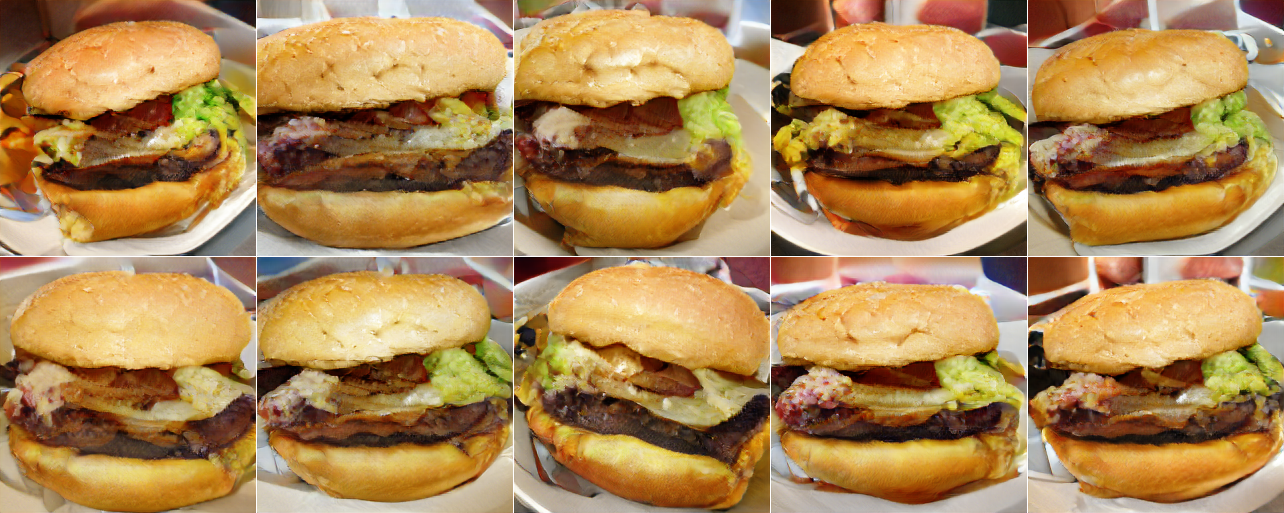

png

Interpola tra campioni BigGAN

Prova impostazione diversa category s con gli stessi noise_seed s, o la stessa category s con differenti noise_seed s. Oppure scatenati e imposta entrambi come preferisci!

(Fare doppio clic sulla cella per visualizzare il codice.)

interpolazione

png
