임의 스타일의 빠른 스타일 전달

TensorFlow.org에서 보기 Google Colab에서 실행하기 GitHub에서소스 보기 노트북 다운로드하기

본 내용은 magenta의 모델 코드와 다음 발행물에 기초합니다.

Exploring the structure of a real-time, arbitrary neural artistic stylization network(실시간 임의 신경 예술적 스타일화 네트워크의 구조 탐색). Golnaz Ghiasi, Honglak Lee, Manjunath Kudlur, Vincent Dumoulin, Jonathon Shlens, Proceedings of the British Machine Vision Conference (BMVC), 2017.

설정

TF-2 및 관련된 모든 종속성을 가져오는 것으로 시작합니다.

import functools
import os

from matplotlib import gridspec
import matplotlib.pylab as plt
import numpy as np
import tensorflow as tf
import tensorflow_hub as hub

print("TF Version: ", tf.__version__)
print("TF-Hub version: ", hub.__version__)
print("Eager mode enabled: ", tf.executing_eagerly())
print("GPU available: ", tf.test.is_gpu_available())
TF Version:  2.3.1
TF-Hub version:  0.10.0
Eager mode enabled:  True
WARNING:tensorflow:From <ipython-input-1-1b40332be70f>:13: is_gpu_available (from tensorflow.python.framework.test_util) is deprecated and will be removed in a future version.
Instructions for updating:
Use `tf.config.list_physical_devices('GPU')` instead.
GPU available:  True

# @title Define image loading and visualization functions  { display-mode: "form" }

def crop_center(image):
  """Returns a cropped square image."""
  shape = image.shape
  new_shape = min(shape[1], shape[2])
  offset_y = max(shape[1] - shape[2], 0) // 2
  offset_x = max(shape[2] - shape[1], 0) // 2
  image = tf.image.crop_to_bounding_box(
      image, offset_y, offset_x, new_shape, new_shape)
  return image

@functools.lru_cache(maxsize=None)
def load_image(image_url, image_size=(256, 256), preserve_aspect_ratio=True):
  """Loads and preprocesses images."""
  # Cache image file locally.
  image_path = tf.keras.utils.get_file(os.path.basename(image_url)[-128:], image_url)
  # Load and convert to float32 numpy array, add batch dimension, and normalize to range [0, 1].
  img = plt.imread(image_path).astype(np.float32)[np.newaxis, ...]
  if img.max() > 1.0:
    img = img / 255.
  if len(img.shape) == 3:
    img = tf.stack([img, img, img], axis=-1)
  img = crop_center(img)
  img = tf.image.resize(img, image_size, preserve_aspect_ratio=True)
  return img

def show_n(images, titles=('',)):
  n = len(images)
  image_sizes = [image.shape[1] for image in images]
  w = (image_sizes[0] * 6) // 320
  plt.figure(figsize=(w  * n, w))
  gs = gridspec.GridSpec(1, n, width_ratios=image_sizes)
  for i in range(n):
    plt.subplot(gs[i])
    plt.imshow(images[i][0], aspect='equal')
    plt.axis('off')
    plt.title(titles[i] if len(titles) > i else '')
  plt.show()

작업에 이용할 수 있는 몇 가지 이미지도 함께 가져옵니다.

# @title Load example images  { display-mode: "form" }

content_image_url = 'https://upload.wikimedia.org/wikipedia/commons/thumb/f/fd/Golden_Gate_Bridge_from_Battery_Spencer.jpg/640px-Golden_Gate_Bridge_from_Battery_Spencer.jpg'  # @param {type:"string"}
style_image_url = 'https://upload.wikimedia.org/wikipedia/commons/0/0a/The_Great_Wave_off_Kanagawa.jpg'  # @param {type:"string"}
output_image_size = 384  # @param {type:"integer"}

# The content image size can be arbitrary.
content_img_size = (output_image_size, output_image_size)
# The style prediction model was trained with image size 256 and it's the
# recommended image size for the style image (though, other sizes work as
# well but will lead to different results).
style_img_size = (256, 256)  # Recommended to keep it at 256.

content_image = load_image(content_image_url, content_img_size)
style_image = load_image(style_image_url, style_img_size)
style_image = tf.nn.avg_pool(style_image, ksize=[3,3], strides=[1,1], padding='SAME')

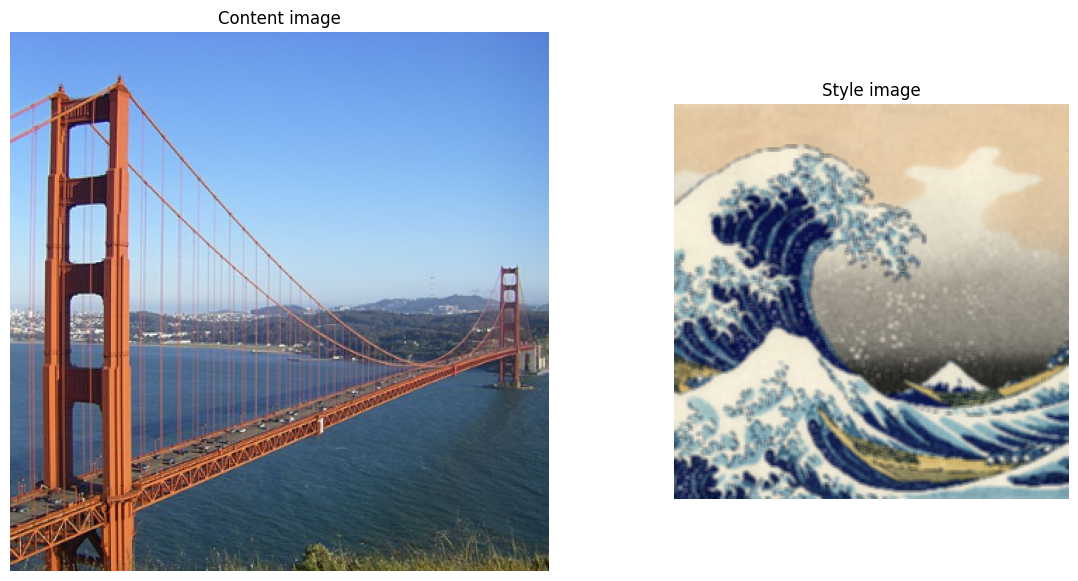

show_n([content_image, style_image], ['Content image', 'Style image'])
Downloading data from https://upload.wikimedia.org/wikipedia/commons/thumb/f/fd/Golden_Gate_Bridge_from_Battery_Spencer.jpg/640px-Golden_Gate_Bridge_from_Battery_Spencer.jpg
65536/58102 [=================================] - 0s 1us/step
Downloading data from https://upload.wikimedia.org/wikipedia/commons/0/0a/The_Great_Wave_off_Kanagawa.jpg
2686976/2684586 [==============================] - 0s 0us/step

png

TF-허브 모듈 가져오기

# Load TF-Hub module.

hub_handle = 'https://tfhub.dev/google/magenta/arbitrary-image-stylization-v1-256/2'
hub_module = hub.load(hub_handle)

이미지 스타일화를 위한 이 허브 모듈의 서명은 다음과 같습니다.

outputs = hub_module(content_image, style_image) stylized_image = outputs[0]

content_image, style_image, stylized_image는 형상이 [batch_size, image_height, image_width, 3]인 4-D 텐서로 예상됩니다.

현재 예제에서는 단일 이미지만 제공하므로 배치 차원은 1이지만 같은 모듈을 사용하여 더 많은 이미지를 동시에 처리할 수 있습니다.

이미지의 입력 및 출력 값은 [0, 1] 범위에 있어야 합니다.

콘텐츠 형상과 스타일 이미지가 일치할 필요는 없습니다. 출력 이미지 형상은 콘텐츠 이미지 형상과 같습니다.

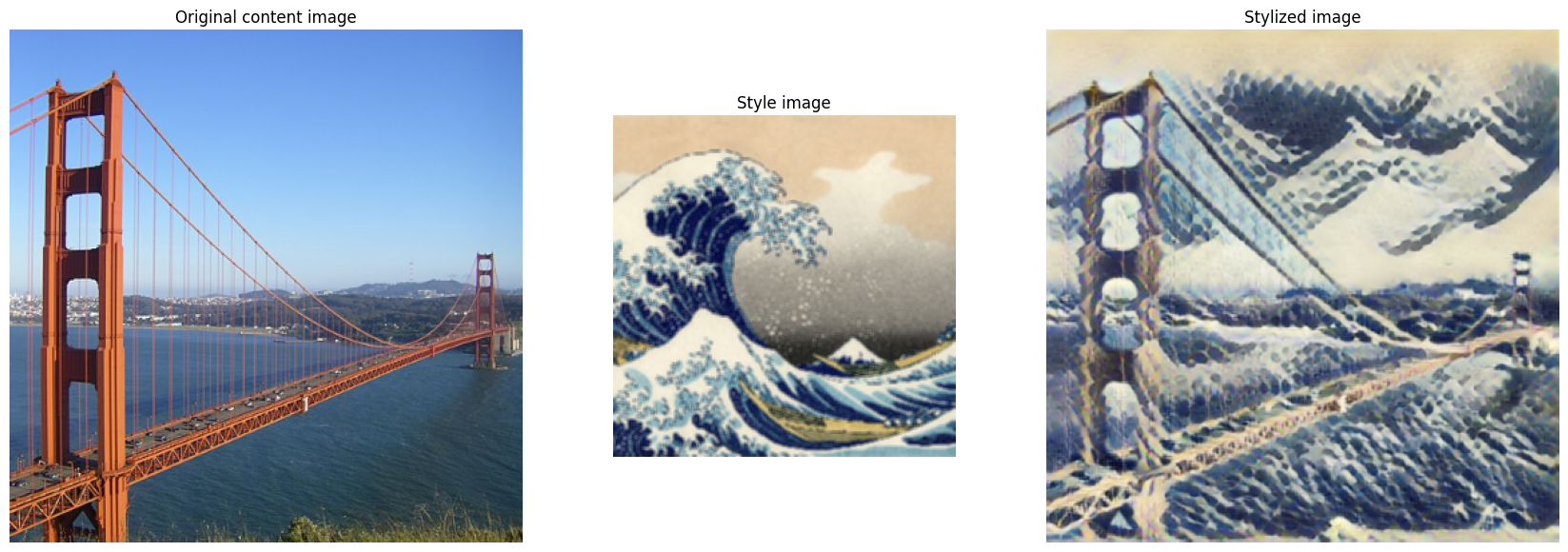

이미지 스타일화 시연하기

# Stylize content image with given style image.
# This is pretty fast within a few milliseconds on a GPU.

outputs = hub_module(tf.constant(content_image), tf.constant(style_image))
stylized_image = outputs[0]
# Visualize input images and the generated stylized image.

show_n([content_image, style_image, stylized_image], titles=['Original content image', 'Style image', 'Stylized image'])

png

더 많은 이미지에 시도하기

# @title To Run: Load more images { display-mode: "form" }

content_urls = dict(
  sea_turtle='https://upload.wikimedia.org/wikipedia/commons/d/d7/Green_Sea_Turtle_grazing_seagrass.jpg',
  tuebingen='https://upload.wikimedia.org/wikipedia/commons/0/00/Tuebingen_Neckarfront.jpg',
  grace_hopper='https://storage.googleapis.com/download.tensorflow.org/example_images/grace_hopper.jpg',
  )
style_urls = dict(
  kanagawa_great_wave='https://upload.wikimedia.org/wikipedia/commons/0/0a/The_Great_Wave_off_Kanagawa.jpg',
  kandinsky_composition_7='https://upload.wikimedia.org/wikipedia/commons/b/b4/Vassily_Kandinsky%2C_1913_-_Composition_7.jpg',
  hubble_pillars_of_creation='https://upload.wikimedia.org/wikipedia/commons/6/68/Pillars_of_creation_2014_HST_WFC3-UVIS_full-res_denoised.jpg',
  van_gogh_starry_night='https://upload.wikimedia.org/wikipedia/commons/thumb/e/ea/Van_Gogh_-_Starry_Night_-_Google_Art_Project.jpg/1024px-Van_Gogh_-_Starry_Night_-_Google_Art_Project.jpg',
  turner_nantes='https://upload.wikimedia.org/wikipedia/commons/b/b7/JMW_Turner_-_Nantes_from_the_Ile_Feydeau.jpg',
  munch_scream='https://upload.wikimedia.org/wikipedia/commons/c/c5/Edvard_Munch%2C_1893%2C_The_Scream%2C_oil%2C_tempera_and_pastel_on_cardboard%2C_91_x_73_cm%2C_National_Gallery_of_Norway.jpg',
  picasso_demoiselles_avignon='https://upload.wikimedia.org/wikipedia/en/4/4c/Les_Demoiselles_d%27Avignon.jpg',
  picasso_violin='https://upload.wikimedia.org/wikipedia/en/3/3c/Pablo_Picasso%2C_1911-12%2C_Violon_%28Violin%29%2C_oil_on_canvas%2C_Kr%C3%B6ller-M%C3%BCller_Museum%2C_Otterlo%2C_Netherlands.jpg',
  picasso_bottle_of_rum='https://upload.wikimedia.org/wikipedia/en/7/7f/Pablo_Picasso%2C_1911%2C_Still_Life_with_a_Bottle_of_Rum%2C_oil_on_canvas%2C_61.3_x_50.5_cm%2C_Metropolitan_Museum_of_Art%2C_New_York.jpg',
  fire='https://upload.wikimedia.org/wikipedia/commons/3/36/Large_bonfire.jpg',
  derkovits_woman_head='https://upload.wikimedia.org/wikipedia/commons/0/0d/Derkovits_Gyula_Woman_head_1922.jpg',
  amadeo_style_life='https://upload.wikimedia.org/wikipedia/commons/8/8e/Untitled_%28Still_life%29_%281913%29_-_Amadeo_Souza-Cardoso_%281887-1918%29_%2817385824283%29.jpg',
  derkovtis_talig='https://upload.wikimedia.org/wikipedia/commons/3/37/Derkovits_Gyula_Talig%C3%A1s_1920.jpg',
  amadeo_cardoso='https://upload.wikimedia.org/wikipedia/commons/7/7d/Amadeo_de_Souza-Cardoso%2C_1915_-_Landscape_with_black_figure.jpg'
)

content_image_size = 384
style_image_size = 256
content_images = {k: load_image(v, (content_image_size, content_image_size)) for k, v in content_urls.items()}
style_images = {k: load_image(v, (style_image_size, style_image_size)) for k, v in style_urls.items()}
style_images = {k: tf.nn.avg_pool(style_image, ksize=[3,3], strides=[1,1], padding='SAME') for k, style_image in style_images.items()}
Downloading data from https://upload.wikimedia.org/wikipedia/commons/d/d7/Green_Sea_Turtle_grazing_seagrass.jpg
3178496/3170828 [==============================] - 0s 0us/step
Downloading data from https://upload.wikimedia.org/wikipedia/commons/0/00/Tuebingen_Neckarfront.jpg
409600/406531 [==============================] - 0s 1us/step
Downloading data from https://storage.googleapis.com/download.tensorflow.org/example_images/grace_hopper.jpg
65536/61306 [================================] - 0s 0us/step
Downloading data from https://upload.wikimedia.org/wikipedia/commons/b/b4/Vassily_Kandinsky%2C_1913_-_Composition_7.jpg
196608/195196 [==============================] - 0s 1us/step
Downloading data from https://upload.wikimedia.org/wikipedia/commons/6/68/Pillars_of_creation_2014_HST_WFC3-UVIS_full-res_denoised.jpg
46931968/46930988 [==============================] - 2s 0us/step
Downloading data from https://upload.wikimedia.org/wikipedia/commons/thumb/e/ea/Van_Gogh_-_Starry_Night_-_Google_Art_Project.jpg/1024px-Van_Gogh_-_Starry_Night_-_Google_Art_Project.jpg
401408/396423 [==============================] - 0s 1us/step
Downloading data from https://upload.wikimedia.org/wikipedia/commons/b/b7/JMW_Turner_-_Nantes_from_the_Ile_Feydeau.jpg
147456/144340 [==============================] - 0s 1us/step
Downloading data from https://upload.wikimedia.org/wikipedia/commons/c/c5/Edvard_Munch%2C_1893%2C_The_Scream%2C_oil%2C_tempera_and_pastel_on_cardboard%2C_91_x_73_cm%2C_National_Gallery_of_Norway.jpg
11403264/11403121 [==============================] - 1s 0us/step
Downloading data from https://upload.wikimedia.org/wikipedia/en/4/4c/Les_Demoiselles_d%27Avignon.jpg
2908160/2905099 [==============================] - 0s 0us/step
Downloading data from https://upload.wikimedia.org/wikipedia/en/3/3c/Pablo_Picasso%2C_1911-12%2C_Violon_%28Violin%29%2C_oil_on_canvas%2C_Kr%C3%B6ller-M%C3%BCller_Museum%2C_Otterlo%2C_Netherlands.jpg
1236992/1234199 [==============================] - 0s 0us/step
Downloading data from https://upload.wikimedia.org/wikipedia/en/7/7f/Pablo_Picasso%2C_1911%2C_Still_Life_with_a_Bottle_of_Rum%2C_oil_on_canvas%2C_61.3_x_50.5_cm%2C_Metropolitan_Museum_of_Art%2C_New_York.jpg
122880/120288 [==============================] - 0s 1us/step
Downloading data from https://upload.wikimedia.org/wikipedia/commons/3/36/Large_bonfire.jpg
139264/131604 [===============================] - 0s 1us/step
Downloading data from https://upload.wikimedia.org/wikipedia/commons/0/0d/Derkovits_Gyula_Woman_head_1922.jpg
32768/32390 [==============================] - 0s 2us/step
Downloading data from https://upload.wikimedia.org/wikipedia/commons/8/8e/Untitled_%28Still_life%29_%281913%29_-_Amadeo_Souza-Cardoso_%281887-1918%29_%2817385824283%29.jpg
1916928/1914618 [==============================] - 0s 0us/step
Downloading data from https://upload.wikimedia.org/wikipedia/commons/3/37/Derkovits_Gyula_Talig%C3%A1s_1920.jpg
40960/40620 [==============================] - 0s 2us/step
Downloading data from https://upload.wikimedia.org/wikipedia/commons/7/7d/Amadeo_de_Souza-Cardoso%2C_1915_-_Landscape_with_black_figure.jpg
73728/66306 [=================================] - 0s 1us/step

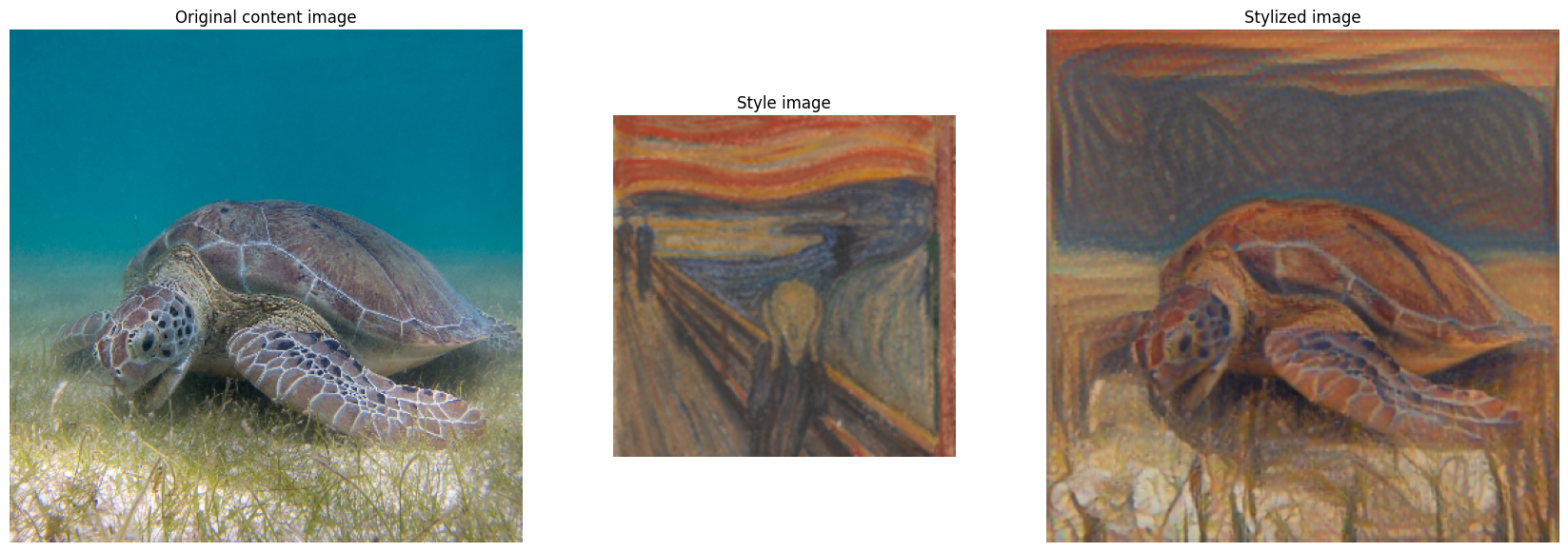

Specify the main content image and the style you want to use.

png
