স্পাইস দিয়ে পিচ ডিটেকশন

TensorFlow.org এ দেখুন Google Colab-এ চালান GitHub এ দেখুন নোটবুক ডাউনলোড করুন TF হাব মডেল দেখুন

TensorFlow Hub থেকে ডাউনলোড করা SPICE মডেলটি কীভাবে ব্যবহার করবেন তা এই কোল্যাব আপনাকে দেখাবে।

sudo apt-get install -q -y timidity libsndfile1
Reading package lists...
Building dependency tree...
Reading state information...
The following packages were automatically installed and are no longer required:
  linux-gcp-5.4-headers-5.4.0-1040 linux-gcp-5.4-headers-5.4.0-1043
  linux-gcp-5.4-headers-5.4.0-1044 linux-gcp-5.4-headers-5.4.0-1049
  linux-headers-5.4.0-1049-gcp linux-image-5.4.0-1049-gcp
  linux-modules-5.4.0-1049-gcp linux-modules-extra-5.4.0-1049-gcp
Use 'sudo apt autoremove' to remove them.
The following additional packages will be installed:
  freepats libaudio2 libflac8 libjack-jackd2-0 libogg0 libsamplerate0
  libvorbis0a libvorbisenc2 timidity-daemon
Suggested packages:
  nas jackd2 fluid-soundfont-gm fluid-soundfont-gs pmidi
The following NEW packages will be installed:
  freepats libaudio2 libflac8 libjack-jackd2-0 libogg0 libsamplerate0
  libsndfile1 libvorbis0a libvorbisenc2 timidity timidity-daemon
0 upgraded, 11 newly installed, 0 to remove and 143 not upgraded.
Need to get 31.4 MB of archives.
After this operation, 40.4 MB of additional disk space will be used.
Get:1 http://asia-east1.gce.archive.ubuntu.com/ubuntu bionic/main amd64 libogg0 amd64 1.3.2-1 [17.2 kB]
Get:2 http://asia-east1.gce.archive.ubuntu.com/ubuntu bionic/universe amd64 freepats all 20060219-1 [29.0 MB]
Get:3 http://asia-east1.gce.archive.ubuntu.com/ubuntu bionic/main amd64 libaudio2 amd64 1.9.4-6 [50.3 kB]
Get:4 http://asia-east1.gce.archive.ubuntu.com/ubuntu bionic/main amd64 libflac8 amd64 1.3.2-1 [213 kB]
Get:5 http://asia-east1.gce.archive.ubuntu.com/ubuntu bionic/main amd64 libsamplerate0 amd64 0.1.9-1 [938 kB]
Get:6 http://asia-east1.gce.archive.ubuntu.com/ubuntu bionic/main amd64 libjack-jackd2-0 amd64 1.9.12~dfsg-2 [263 kB]
Get:7 http://asia-east1.gce.archive.ubuntu.com/ubuntu bionic/main amd64 libvorbis0a amd64 1.3.5-4.2 [86.4 kB]
Get:8 http://asia-east1.gce.archive.ubuntu.com/ubuntu bionic/main amd64 libvorbisenc2 amd64 1.3.5-4.2 [70.7 kB]
Get:9 http://asia-east1.gce.archive.ubuntu.com/ubuntu bionic-updates/main amd64 libsndfile1 amd64 1.0.28-4ubuntu0.18.04.2 [170 kB]
Get:10 http://asia-east1.gce.archive.ubuntu.com/ubuntu bionic/universe amd64 timidity amd64 2.13.2-41 [585 kB]
Get:11 http://asia-east1.gce.archive.ubuntu.com/ubuntu bionic/universe amd64 timidity-daemon all 2.13.2-41 [5984 B]
Fetched 31.4 MB in 2s (14.5 MB/s)
Selecting previously unselected package libogg0:amd64.
(Reading database ... 281949 files and directories currently installed.)
Preparing to unpack .../00-libogg0_1.3.2-1_amd64.deb ...
Unpacking libogg0:amd64 (1.3.2-1) ...
Selecting previously unselected package freepats.
Preparing to unpack .../01-freepats_20060219-1_all.deb ...
Unpacking freepats (20060219-1) ...
Selecting previously unselected package libaudio2:amd64.
Preparing to unpack .../02-libaudio2_1.9.4-6_amd64.deb ...
Unpacking libaudio2:amd64 (1.9.4-6) ...
Selecting previously unselected package libflac8:amd64.
Preparing to unpack .../03-libflac8_1.3.2-1_amd64.deb ...
Unpacking libflac8:amd64 (1.3.2-1) ...
Selecting previously unselected package libsamplerate0:amd64.
Preparing to unpack .../04-libsamplerate0_0.1.9-1_amd64.deb ...
Unpacking libsamplerate0:amd64 (0.1.9-1) ...
Selecting previously unselected package libjack-jackd2-0:amd64.
Preparing to unpack .../05-libjack-jackd2-0_1.9.12~dfsg-2_amd64.deb ...
Unpacking libjack-jackd2-0:amd64 (1.9.12~dfsg-2) ...
Selecting previously unselected package libvorbis0a:amd64.
Preparing to unpack .../06-libvorbis0a_1.3.5-4.2_amd64.deb ...
Unpacking libvorbis0a:amd64 (1.3.5-4.2) ...
Selecting previously unselected package libvorbisenc2:amd64.
Preparing to unpack .../07-libvorbisenc2_1.3.5-4.2_amd64.deb ...
Unpacking libvorbisenc2:amd64 (1.3.5-4.2) ...
Selecting previously unselected package libsndfile1:amd64.
Preparing to unpack .../08-libsndfile1_1.0.28-4ubuntu0.18.04.2_amd64.deb ...
Unpacking libsndfile1:amd64 (1.0.28-4ubuntu0.18.04.2) ...
Selecting previously unselected package timidity.
Preparing to unpack .../09-timidity_2.13.2-41_amd64.deb ...
Unpacking timidity (2.13.2-41) ...
Selecting previously unselected package timidity-daemon.
Preparing to unpack .../10-timidity-daemon_2.13.2-41_all.deb ...
Unpacking timidity-daemon (2.13.2-41) ...
Setting up libogg0:amd64 (1.3.2-1) ...
Setting up libsamplerate0:amd64 (0.1.9-1) ...
Setting up freepats (20060219-1) ...
Setting up libvorbis0a:amd64 (1.3.5-4.2) ...
Setting up libaudio2:amd64 (1.9.4-6) ...
Setting up libflac8:amd64 (1.3.2-1) ...
Setting up libjack-jackd2-0:amd64 (1.9.12~dfsg-2) ...
Setting up libvorbisenc2:amd64 (1.3.5-4.2) ...
Setting up timidity (2.13.2-41) ...
Setting up libsndfile1:amd64 (1.0.28-4ubuntu0.18.04.2) ...
Setting up timidity-daemon (2.13.2-41) ...
Adding group timidity....done
Adding system user timidity....done
Adding user `timidity' to group `audio' ...
Adding user timidity to group audio
Done.
Processing triggers for man-db (2.8.3-2ubuntu0.1) ...
Processing triggers for ureadahead (0.100.0-21) ...
Processing triggers for libc-bin (2.27-3ubuntu1.2) ...
Processing triggers for systemd (237-3ubuntu10.50) ...
# All the imports to deal with sound data
pip install pydub numba==0.48 librosa music21
import tensorflow as tf
import tensorflow_hub as hub

import numpy as np
import matplotlib.pyplot as plt
import librosa
from librosa import display as librosadisplay

import logging
import math
import statistics
import sys

from IPython.display import Audio, Javascript
from scipy.io import wavfile

from base64 import b64decode

import music21
from pydub import AudioSegment

logger = logging.getLogger()
logger.setLevel(logging.ERROR)

print("tensorflow: %s" % tf.__version__)
#print("librosa: %s" % librosa.__version__)
/tmpfs/src/tf_docs_env/lib/python3.7/site-packages/numba/errors.py:137: UserWarning: Insufficiently recent colorama version found. Numba requires colorama >= 0.3.9
  warnings.warn(msg)
tensorflow: 2.7.0
/tmpfs/src/tf_docs_env/lib/python3.7/site-packages/pydub/utils.py:170: RuntimeWarning: Couldn't find ffmpeg or avconv - defaulting to ffmpeg, but may not work
  warn("Couldn't find ffmpeg or avconv - defaulting to ffmpeg, but may not work", RuntimeWarning)

অডিও ইনপুট ফাইল

এখন সবচেয়ে কঠিন অংশ: আপনার গান রেকর্ড করুন! :)

আমরা একটি অডিও ফাইল প্রাপ্ত করার জন্য চারটি পদ্ধতি প্রদান করি:

  1. কোলাবে সরাসরি অডিও রেকর্ড করুন
  2. আপনার কম্পিউটার থেকে আপলোড করুন
  3. গুগল ড্রাইভে সংরক্ষিত একটি ফাইল ব্যবহার করুন
  4. ওয়েব থেকে ফাইল ডাউনলোড করুন

নিচের চারটি পদ্ধতির মধ্যে একটি বেছে নিন।

[এটি চালান] সরাসরি ব্রাউজার থেকে অডিও রেকর্ড করতে JS কোডের সংজ্ঞা

আপনার অডিও ইনপুট কিভাবে নির্বাচন করুন

INPUT_SOURCE = 'https://storage.googleapis.com/download.tensorflow.org/data/c-scale-metronome.wav'

print('You selected', INPUT_SOURCE)

if INPUT_SOURCE == 'RECORD':
  uploaded_file_name = record(5)
elif INPUT_SOURCE == 'UPLOAD':
  try:
    from google.colab import files
  except ImportError:
    print("ImportError: files from google.colab seems to not be available")
  else:
    uploaded = files.upload()
    for fn in uploaded.keys():
      print('User uploaded file "{name}" with length {length} bytes'.format(
          name=fn, length=len(uploaded[fn])))
    uploaded_file_name = next(iter(uploaded))
    print('Uploaded file: ' + uploaded_file_name)
elif INPUT_SOURCE.startswith('./drive/'):
  try:
    from google.colab import drive
  except ImportError:
    print("ImportError: files from google.colab seems to not be available")
  else:
    drive.mount('/content/drive')
    # don't forget to change the name of the file you
    # will you here!
    gdrive_audio_file = 'YOUR_MUSIC_FILE.wav'
    uploaded_file_name = INPUT_SOURCE
elif INPUT_SOURCE.startswith('http'):
  !wget --no-check-certificate 'https://storage.googleapis.com/download.tensorflow.org/data/c-scale-metronome.wav' -O c-scale.wav
  uploaded_file_name = 'c-scale.wav'
else:
  print('Unrecognized input format!')
  print('Please select "RECORD", "UPLOAD", or specify a file hosted on Google Drive or a file from the web to download file to download')
You selected https://storage.googleapis.com/download.tensorflow.org/data/c-scale-metronome.wav
--2021-11-05 11:10:55--  https://storage.googleapis.com/download.tensorflow.org/data/c-scale-metronome.wav
Resolving storage.googleapis.com (storage.googleapis.com)... 108.177.97.128, 64.233.189.128, 74.125.203.128, ...
Connecting to storage.googleapis.com (storage.googleapis.com)|108.177.97.128|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 384728 (376K) [audio/wav]
Saving to: ‘c-scale.wav’

c-scale.wav         100%[===================>] 375.71K  --.-KB/s    in 0.006s

2021-11-05 11:10:56 (65.4 MB/s) - ‘c-scale.wav’ saved [384728/384728]

অডিও ডেটা প্রস্তুত করা হচ্ছে

এখন আমাদের কাছে অডিও আছে, আসুন এটিকে প্রত্যাশিত বিন্যাসে রূপান্তর করি এবং তারপরে শুনি!

SPICE মডেলটিতে 16kHz স্যাম্পলিং রেট এবং শুধুমাত্র একটি চ্যানেল (মনো) সহ একটি অডিও ফাইল ইনপুট হিসাবে প্রয়োজন।

এই অংশ দিয়ে সাহায্য করার জন্য, আমরা একটি ফাংশন (নির্মিত convert_audio_for_model মডেলের প্রত্যাশিত ফর্ম্যাটে কোনো WAV ফাইল আপনি রূপান্তর করতে):

# Function that converts the user-created audio to the format that the model
# expects: bitrate 16kHz and only one channel (mono).

EXPECTED_SAMPLE_RATE = 16000

def convert_audio_for_model(user_file, output_file='converted_audio_file.wav'):
  audio = AudioSegment.from_file(user_file)
  audio = audio.set_frame_rate(EXPECTED_SAMPLE_RATE).set_channels(1)
  audio.export(output_file, format="wav")
  return output_file
# Converting to the expected format for the model
# in all the input 4 input method before, the uploaded file name is at
# the variable uploaded_file_name
converted_audio_file = convert_audio_for_model(uploaded_file_name)
# Loading audio samples from the wav file:
sample_rate, audio_samples = wavfile.read(converted_audio_file, 'rb')

# Show some basic information about the audio.
duration = len(audio_samples)/sample_rate
print(f'Sample rate: {sample_rate} Hz')
print(f'Total duration: {duration:.2f}s')
print(f'Size of the input: {len(audio_samples)}')

# Let's listen to the wav file.
Audio(audio_samples, rate=sample_rate)
Sample rate: 16000 Hz
Total duration: 11.89s
Size of the input: 190316

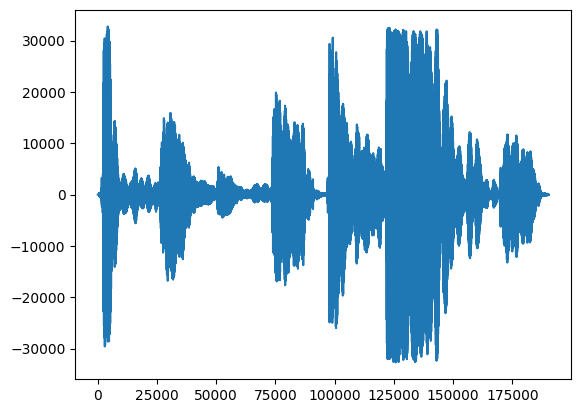

প্রথম কথা, আসুন আমাদের গানের তরঙ্গরূপটি দেখে নেওয়া যাক।

# We can visualize the audio as a waveform.
_ = plt.plot(audio_samples)

png

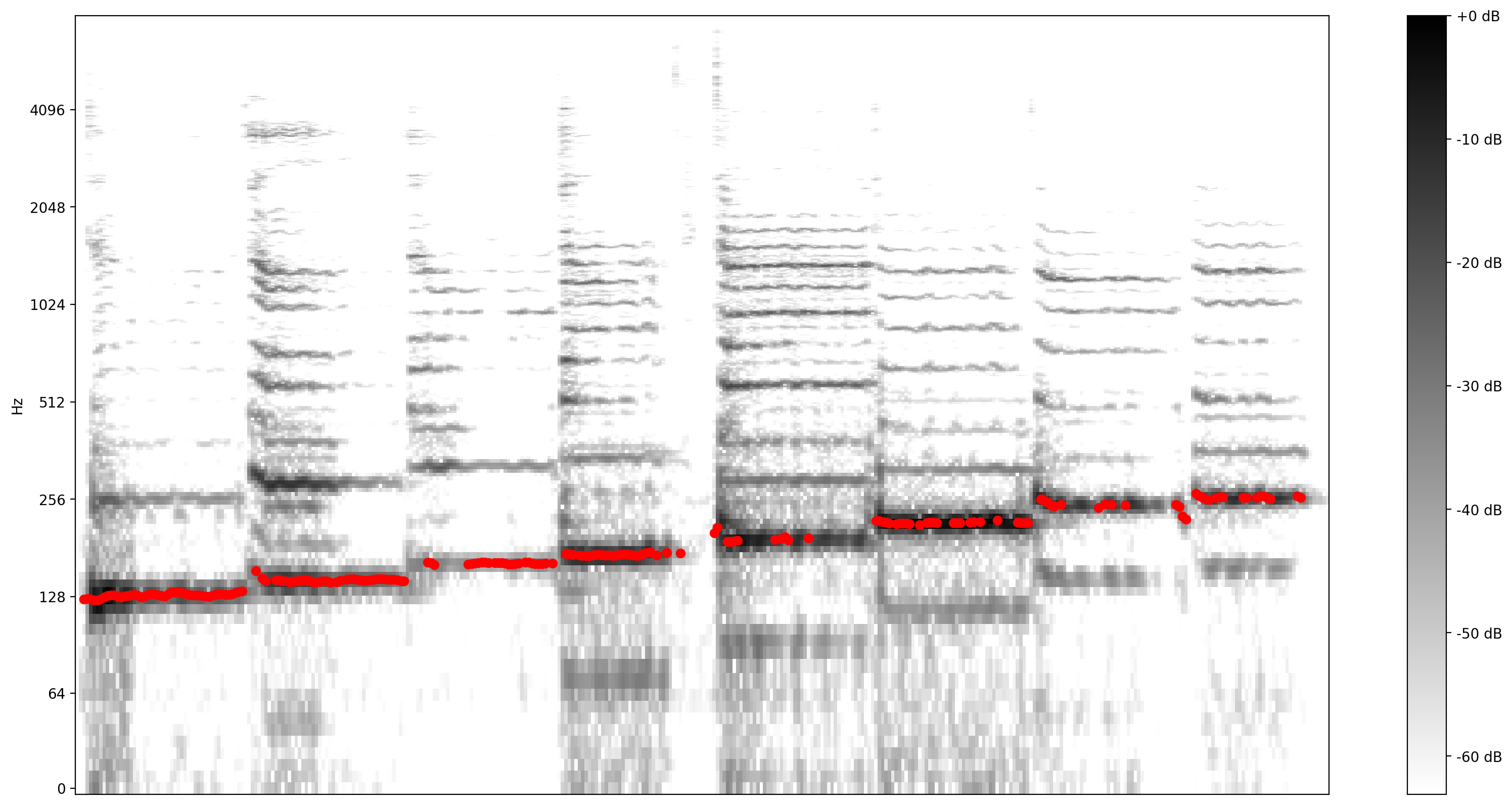

আরো তথ্যপূর্ণ ঠাহর হয় বর্ণালির আলোকক চিত্র বা রেখা চিত্র , যা শো ফ্রিকোয়েন্সি সময়ের উপস্থাপন।

এখানে, আমরা একটি লগারিদমিক ফ্রিকোয়েন্সি স্কেল ব্যবহার করি, যাতে গানটি আরও স্পষ্টভাবে দৃশ্যমান হয়।

MAX_ABS_INT16 = 32768.0

def plot_stft(x, sample_rate, show_black_and_white=False):
  x_stft = np.abs(librosa.stft(x, n_fft=2048))
  fig, ax = plt.subplots()
  fig.set_size_inches(20, 10)
  x_stft_db = librosa.amplitude_to_db(x_stft, ref=np.max)
  if(show_black_and_white):
    librosadisplay.specshow(data=x_stft_db, y_axis='log',
                             sr=sample_rate, cmap='gray_r')
  else:
    librosadisplay.specshow(data=x_stft_db, y_axis='log', sr=sample_rate)

  plt.colorbar(format='%+2.0f dB')

plot_stft(audio_samples / MAX_ABS_INT16 , sample_rate=EXPECTED_SAMPLE_RATE)
plt.show()

png

আমরা এখানে একটি শেষ রূপান্তর প্রয়োজন. অডিও নমুনা int16 বিন্যাসে হয়. -1 এবং 1-এর মধ্যে ফ্লোট করার জন্য তাদের স্বাভাবিক করা দরকার।

audio_samples = audio_samples / float(MAX_ABS_INT16)

মডেল নির্বাহ করা

এখন সহজ অংশ, এর TensorFlow হাবের সঙ্গে মডেল লোড করা যাক, এবং এটি অডিও ভোজন। SPICE আমাদের দুটি আউটপুট দেবে: পিচ এবং অনিশ্চয়তা

TensorFlow হাব প্রকাশন, আবিষ্কার, এবং মেশিন লার্নিং মডেলের পুনর্ব্যবহারযোগ্য অংশ খরচ জন্য একটি লাইব্রেরী। এটি আপনার চ্যালেঞ্জগুলি সমাধান করতে মেশিন লার্নিং ব্যবহার করা সহজ করে তোলে।

মডেলটি লোড করতে আপনার শুধু হাব মডিউল এবং মডেলের দিকে নির্দেশকারী URL প্রয়োজন:

# Loading the SPICE model is easy:
model = hub.load("https://tfhub.dev/google/spice/2")
WARNING:tensorflow:Unable to create a python object for variable <tf.Variable 'global_step:0' shape=() dtype=int64_ref> because it is a reference variable. It may not be visible to training APIs. If this is a problem, consider rebuilding the SavedModel after running tf.compat.v1.enable_resource_variables().
WARNING:tensorflow:Unable to create a python object for variable <tf.Variable 'global_step:0' shape=() dtype=int64_ref> because it is a reference variable. It may not be visible to training APIs. If this is a problem, consider rebuilding the SavedModel after running tf.compat.v1.enable_resource_variables().
WARNING:tensorflow:Unable to create a python object for variable <tf.Variable 'encoder/conv2d/kernel:0' shape=(1, 3, 1, 64) dtype=float32_ref> because it is a reference variable. It may not be visible to training APIs. If this is a problem, consider rebuilding the SavedModel after running tf.compat.v1.enable_resource_variables().
WARNING:tensorflow:Unable to create a python object for variable <tf.Variable 'encoder/conv2d/kernel:0' shape=(1, 3, 1, 64) dtype=float32_ref> because it is a reference variable. It may not be visible to training APIs. If this is a problem, consider rebuilding the SavedModel after running tf.compat.v1.enable_resource_variables().
WARNING:tensorflow:Unable to create a python object for variable <tf.Variable 'encoder/batch_normalization/gamma:0' shape=(64,) dtype=float32_ref> because it is a reference variable. It may not be visible to training APIs. If this is a problem, consider rebuilding the SavedModel after running tf.compat.v1.enable_resource_variables().
WARNING:tensorflow:Unable to create a python object for variable <tf.Variable 'encoder/batch_normalization/gamma:0' shape=(64,) dtype=float32_ref> because it is a reference variable. It may not be visible to training APIs. If this is a problem, consider rebuilding the SavedModel after running tf.compat.v1.enable_resource_variables().
WARNING:tensorflow:Unable to create a python object for variable <tf.Variable 'encoder/batch_normalization/beta:0' shape=(64,) dtype=float32_ref> because it is a reference variable. It may not be visible to training APIs. If this is a problem, consider rebuilding the SavedModel after running tf.compat.v1.enable_resource_variables().
WARNING:tensorflow:Unable to create a python object for variable <tf.Variable 'encoder/batch_normalization/beta:0' shape=(64,) dtype=float32_ref> because it is a reference variable. It may not be visible to training APIs. If this is a problem, consider rebuilding the SavedModel after running tf.compat.v1.enable_resource_variables().
WARNING:tensorflow:Unable to create a python object for variable <tf.Variable 'encoder/batch_normalization/moving_mean:0' shape=(64,) dtype=float32_ref> because it is a reference variable. It may not be visible to training APIs. If this is a problem, consider rebuilding the SavedModel after running tf.compat.v1.enable_resource_variables().
WARNING:tensorflow:Unable to create a python object for variable <tf.Variable 'encoder/batch_normalization/moving_mean:0' shape=(64,) dtype=float32_ref> because it is a reference variable. It may not be visible to training APIs. If this is a problem, consider rebuilding the SavedModel after running tf.compat.v1.enable_resource_variables().
WARNING:tensorflow:Unable to create a python object for variable <tf.Variable 'global_step:0' shape=() dtype=int64_ref> because it is a reference variable. It may not be visible to training APIs. If this is a problem, consider rebuilding the SavedModel after running tf.compat.v1.enable_resource_variables().
WARNING:tensorflow:Unable to create a python object for variable <tf.Variable 'global_step:0' shape=() dtype=int64_ref> because it is a reference variable. It may not be visible to training APIs. If this is a problem, consider rebuilding the SavedModel after running tf.compat.v1.enable_resource_variables().
WARNING:tensorflow:Unable to create a python object for variable <tf.Variable 'encoder/conv2d/kernel:0' shape=(1, 3, 1, 64) dtype=float32_ref> because it is a reference variable. It may not be visible to training APIs. If this is a problem, consider rebuilding the SavedModel after running tf.compat.v1.enable_resource_variables().
WARNING:tensorflow:Unable to create a python object for variable <tf.Variable 'encoder/conv2d/kernel:0' shape=(1, 3, 1, 64) dtype=float32_ref> because it is a reference variable. It may not be visible to training APIs. If this is a problem, consider rebuilding the SavedModel after running tf.compat.v1.enable_resource_variables().
WARNING:tensorflow:Unable to create a python object for variable <tf.Variable 'encoder/batch_normalization/gamma:0' shape=(64,) dtype=float32_ref> because it is a reference variable. It may not be visible to training APIs. If this is a problem, consider rebuilding the SavedModel after running tf.compat.v1.enable_resource_variables().
WARNING:tensorflow:Unable to create a python object for variable <tf.Variable 'encoder/batch_normalization/gamma:0' shape=(64,) dtype=float32_ref> because it is a reference variable. It may not be visible to training APIs. If this is a problem, consider rebuilding the SavedModel after running tf.compat.v1.enable_resource_variables().
WARNING:tensorflow:Unable to create a python object for variable <tf.Variable 'encoder/batch_normalization/beta:0' shape=(64,) dtype=float32_ref> because it is a reference variable. It may not be visible to training APIs. If this is a problem, consider rebuilding the SavedModel after running tf.compat.v1.enable_resource_variables().
WARNING:tensorflow:Unable to create a python object for variable <tf.Variable 'encoder/batch_normalization/beta:0' shape=(64,) dtype=float32_ref> because it is a reference variable. It may not be visible to training APIs. If this is a problem, consider rebuilding the SavedModel after running tf.compat.v1.enable_resource_variables().
WARNING:tensorflow:Unable to create a python object for variable <tf.Variable 'encoder/batch_normalization/moving_mean:0' shape=(64,) dtype=float32_ref> because it is a reference variable. It may not be visible to training APIs. If this is a problem, consider rebuilding the SavedModel after running tf.compat.v1.enable_resource_variables().
WARNING:tensorflow:Unable to create a python object for variable <tf.Variable 'encoder/batch_normalization/moving_mean:0' shape=(64,) dtype=float32_ref> because it is a reference variable. It may not be visible to training APIs. If this is a problem, consider rebuilding the SavedModel after running tf.compat.v1.enable_resource_variables().
WARNING:tensorflow:Unable to create a python object for variable <tf.Variable 'global_step:0' shape=() dtype=int64_ref> because it is a reference variable. It may not be visible to training APIs. If this is a problem, consider rebuilding the SavedModel after running tf.compat.v1.enable_resource_variables().
WARNING:tensorflow:Unable to create a python object for variable <tf.Variable 'global_step:0' shape=() dtype=int64_ref> because it is a reference variable. It may not be visible to training APIs. If this is a problem, consider rebuilding the SavedModel after running tf.compat.v1.enable_resource_variables().
WARNING:tensorflow:Unable to create a python object for variable <tf.Variable 'encoder/conv2d/kernel:0' shape=(1, 3, 1, 64) dtype=float32_ref> because it is a reference variable. It may not be visible to training APIs. If this is a problem, consider rebuilding the SavedModel after running tf.compat.v1.enable_resource_variables().
WARNING:tensorflow:Unable to create a python object for variable <tf.Variable 'encoder/conv2d/kernel:0' shape=(1, 3, 1, 64) dtype=float32_ref> because it is a reference variable. It may not be visible to training APIs. If this is a problem, consider rebuilding the SavedModel after running tf.compat.v1.enable_resource_variables().
WARNING:tensorflow:Unable to create a python object for variable <tf.Variable 'encoder/batch_normalization/gamma:0' shape=(64,) dtype=float32_ref> because it is a reference variable. It may not be visible to training APIs. If this is a problem, consider rebuilding the SavedModel after running tf.compat.v1.enable_resource_variables().
WARNING:tensorflow:Unable to create a python object for variable <tf.Variable 'encoder/batch_normalization/gamma:0' shape=(64,) dtype=float32_ref> because it is a reference variable. It may not be visible to training APIs. If this is a problem, consider rebuilding the SavedModel after running tf.compat.v1.enable_resource_variables().
WARNING:tensorflow:Unable to create a python object for variable <tf.Variable 'encoder/batch_normalization/beta:0' shape=(64,) dtype=float32_ref> because it is a reference variable. It may not be visible to training APIs. If this is a problem, consider rebuilding the SavedModel after running tf.compat.v1.enable_resource_variables().
WARNING:tensorflow:Unable to create a python object for variable <tf.Variable 'encoder/batch_normalization/beta:0' shape=(64,) dtype=float32_ref> because it is a reference variable. It may not be visible to training APIs. If this is a problem, consider rebuilding the SavedModel after running tf.compat.v1.enable_resource_variables().
WARNING:tensorflow:Unable to create a python object for variable <tf.Variable 'encoder/batch_normalization/moving_mean:0' shape=(64,) dtype=float32_ref> because it is a reference variable. It may not be visible to training APIs. If this is a problem, consider rebuilding the SavedModel after running tf.compat.v1.enable_resource_variables().
WARNING:tensorflow:Unable to create a python object for variable <tf.Variable 'encoder/batch_normalization/moving_mean:0' shape=(64,) dtype=float32_ref> because it is a reference variable. It may not be visible to training APIs. If this is a problem, consider rebuilding the SavedModel after running tf.compat.v1.enable_resource_variables().
WARNING:tensorflow:Unable to create a python object for variable <tf.Variable 'global_step:0' shape=() dtype=int64_ref> because it is a reference variable. It may not be visible to training APIs. If this is a problem, consider rebuilding the SavedModel after running tf.compat.v1.enable_resource_variables().
WARNING:tensorflow:Unable to create a python object for variable <tf.Variable 'global_step:0' shape=() dtype=int64_ref> because it is a reference variable. It may not be visible to training APIs. If this is a problem, consider rebuilding the SavedModel after running tf.compat.v1.enable_resource_variables().
WARNING:tensorflow:Unable to create a python object for variable <tf.Variable 'encoder/conv2d/kernel:0' shape=(1, 3, 1, 64) dtype=float32_ref> because it is a reference variable. It may not be visible to training APIs. If this is a problem, consider rebuilding the SavedModel after running tf.compat.v1.enable_resource_variables().
WARNING:tensorflow:Unable to create a python object for variable <tf.Variable 'encoder/conv2d/kernel:0' shape=(1, 3, 1, 64) dtype=float32_ref> because it is a reference variable. It may not be visible to training APIs. If this is a problem, consider rebuilding the SavedModel after running tf.compat.v1.enable_resource_variables().
WARNING:tensorflow:Unable to create a python object for variable <tf.Variable 'encoder/batch_normalization/gamma:0' shape=(64,) dtype=float32_ref> because it is a reference variable. It may not be visible to training APIs. If this is a problem, consider rebuilding the SavedModel after running tf.compat.v1.enable_resource_variables().
WARNING:tensorflow:Unable to create a python object for variable <tf.Variable 'encoder/batch_normalization/gamma:0' shape=(64,) dtype=float32_ref> because it is a reference variable. It may not be visible to training APIs. If this is a problem, consider rebuilding the SavedModel after running tf.compat.v1.enable_resource_variables().
WARNING:tensorflow:Unable to create a python object for variable <tf.Variable 'encoder/batch_normalization/beta:0' shape=(64,) dtype=float32_ref> because it is a reference variable. It may not be visible to training APIs. If this is a problem, consider rebuilding the SavedModel after running tf.compat.v1.enable_resource_variables().
WARNING:tensorflow:Unable to create a python object for variable <tf.Variable 'encoder/batch_normalization/beta:0' shape=(64,) dtype=float32_ref> because it is a reference variable. It may not be visible to training APIs. If this is a problem, consider rebuilding the SavedModel after running tf.compat.v1.enable_resource_variables().
WARNING:tensorflow:Unable to create a python object for variable <tf.Variable 'encoder/batch_normalization/moving_mean:0' shape=(64,) dtype=float32_ref> because it is a reference variable. It may not be visible to training APIs. If this is a problem, consider rebuilding the SavedModel after running tf.compat.v1.enable_resource_variables().
WARNING:tensorflow:Unable to create a python object for variable <tf.Variable 'encoder/batch_normalization/moving_mean:0' shape=(64,) dtype=float32_ref> because it is a reference variable. It may not be visible to training APIs. If this is a problem, consider rebuilding the SavedModel after running tf.compat.v1.enable_resource_variables().

মডেল লোড হওয়ার সাথে সাথে, ডেটা প্রস্তুত করা হয়েছে, ফলাফল পেতে আমাদের 3 টি লাইন দরকার:

# We now feed the audio to the SPICE tf.hub model to obtain pitch and uncertainty outputs as tensors.
model_output = model.signatures["serving_default"](tf.constant(audio_samples, tf.float32))

pitch_outputs = model_output["pitch"]
uncertainty_outputs = model_output["uncertainty"]

# 'Uncertainty' basically means the inverse of confidence.
confidence_outputs = 1.0 - uncertainty_outputs

fig, ax = plt.subplots()
fig.set_size_inches(20, 10)
plt.plot(pitch_outputs, label='pitch')
plt.plot(confidence_outputs, label='confidence')
plt.legend(loc="lower right")
plt.show()

png

আসুন কম আত্মবিশ্বাস (আস্থা <0.9) সহ সমস্ত পিচ অনুমানগুলি সরিয়ে বাকিগুলিকে প্লট করে ফলাফলগুলি বোঝা সহজ করে তুলি।

confidence_outputs = list(confidence_outputs)
pitch_outputs = [ float(x) for x in pitch_outputs]

indices = range(len (pitch_outputs))
confident_pitch_outputs = [ (i,p)
  for i, p, c in zip(indices, pitch_outputs, confidence_outputs) if  c >= 0.9  ]
confident_pitch_outputs_x, confident_pitch_outputs_y = zip(*confident_pitch_outputs)

fig, ax = plt.subplots()
fig.set_size_inches(20, 10)
ax.set_ylim([0, 1])
plt.scatter(confident_pitch_outputs_x, confident_pitch_outputs_y, )
plt.scatter(confident_pitch_outputs_x, confident_pitch_outputs_y, c="r")

plt.show()

png

SPICE দ্বারা প্রত্যাবর্তিত পিচ মানগুলি 0 থেকে 1 এর মধ্যে রয়েছে৷ আসুন সেগুলিকে Hz-এ পরম পিচ মানগুলিতে রূপান্তর করি৷

def output2hz(pitch_output):
  # Constants taken from https://tfhub.dev/google/spice/2
  PT_OFFSET = 25.58
  PT_SLOPE = 63.07
  FMIN = 10.0;
  BINS_PER_OCTAVE = 12.0;
  cqt_bin = pitch_output * PT_SLOPE + PT_OFFSET;
  return FMIN * 2.0 ** (1.0 * cqt_bin / BINS_PER_OCTAVE)

confident_pitch_values_hz = [ output2hz(p) for p in confident_pitch_outputs_y ]

এখন, ভবিষ্যদ্বাণীটি কতটা ভাল তা দেখা যাক: আমরা মূল স্পেকট্রোগ্রামের উপর পূর্বাভাসিত পিচগুলিকে ওভারলে করব। পিচের ভবিষ্যদ্বাণীগুলিকে আরও দৃশ্যমান করতে, আমরা বর্ণালীকে কালো এবং সাদাতে পরিবর্তন করেছি।

plot_stft(audio_samples / MAX_ABS_INT16 ,
          sample_rate=EXPECTED_SAMPLE_RATE, show_black_and_white=True)
# Note: conveniently, since the plot is in log scale, the pitch outputs
# also get converted to the log scale automatically by matplotlib.
plt.scatter(confident_pitch_outputs_x, confident_pitch_values_hz, c="r")

plt.show()

png

মিউজিক্যাল নোটে রূপান্তর করা হচ্ছে

এখন যেহেতু আমাদের পিচ মান আছে, আসুন সেগুলিকে নোটে রূপান্তর করি! এই অংশ নিজেই চ্যালেঞ্জিং. আমাদের দুটি বিষয় বিবেচনায় রাখতে হবে:

  1. বিশ্রাম (যখন কোন গান নেই)
  2. প্রতিটি নোটের আকার (অফসেট)

1: আউটপুটে শূন্য যোগ করা যখন কোন গান নেই তা নির্দেশ করতে

pitch_outputs_and_rests = [
    output2hz(p) if c >= 0.9 else 0
    for i, p, c in zip(indices, pitch_outputs, confidence_outputs)
]

2: নোট অফসেট যোগ করা

যখন একজন ব্যক্তি অবাধে গান গায়, তখন সুরে পরম পিচ মানগুলির একটি অফসেট থাকতে পারে যা নোটগুলি উপস্থাপন করতে পারে। তাই, ভবিষ্যদ্বাণীকে নোটে রূপান্তর করতে, এই সম্ভাব্য অফসেটের জন্য একজনকে সংশোধন করতে হবে। এই নিম্নলিখিত কোড গণনা কি.

A4 = 440
C0 = A4 * pow(2, -4.75)
note_names = ["C", "C#", "D", "D#", "E", "F", "F#", "G", "G#", "A", "A#", "B"]

def hz2offset(freq):
  # This measures the quantization error for a single note.
  if freq == 0:  # Rests always have zero error.
    return None
  # Quantized note.
  h = round(12 * math.log2(freq / C0))
  return 12 * math.log2(freq / C0) - h


# The ideal offset is the mean quantization error for all the notes
# (excluding rests):
offsets = [hz2offset(p) for p in pitch_outputs_and_rests if p != 0]
print("offsets: ", offsets)

ideal_offset = statistics.mean(offsets)
print("ideal offset: ", ideal_offset)
offsets:  [0.2851075707500712, 0.3700368844097355, 0.2861639241998972, 0.19609005646164235, 0.17851737247163868, 0.27334483073408933, -0.4475316266590852, -0.24651997073237908, -0.1796558047706398, -0.23060136331860548, -0.3782634107643901, -0.4725100625926686, -0.3457194541269999, -0.2436666886383776, -0.1818906877810207, -0.1348077739650435, -0.24551812662426897, -0.4454903457934165, -0.3126792745167535, -0.12241723670307181, -0.06614479972665066, -0.06702634735648871, -0.1744135098034576, -0.29365551425759406, -0.32520890458170726, -0.056438377636119696, 0.1470525135224534, 0.17167006002122775, 0.16529246704037348, 0.09569531546290477, -0.006323616641203955, -0.11799822075907684, -0.18835098459069144, -0.17934754504506145, -0.17215419157092526, -0.23695828034226452, -0.34594501002376177, -0.39380045278613807, -0.2528674895936689, -0.11009248657768467, -0.07118597401920113, -0.08042248799149121, -0.12799598588293293, -0.16227484329287023, -0.05931985421721464, 0.10667800800259641, 0.21044687793906292, 0.2931939382975841, -0.22329278631751492, -0.12365553720538003, -0.4571117360765271, -0.34864566459005175, -0.35947798653189267, -0.4313175396496476, -0.4818928106004421, 0.44220950977261, 0.45883109973128455, -0.47095522924010425, -0.3674495078498552, -0.3047186536962201, -0.31075979246441676, -0.4501382996017185, 0.3966096259778311, 0.4238116671269694, 0.4982676686471237, -0.45932030423227843, -0.4890504510576079, 0.3836871527260044, 0.4441304941600137, -0.38787359430138935, -0.24855899466817277, -0.20666386647764057, -0.23811575664822726, -0.2760223047310504, -0.3641714288169524, -0.41670903606955534, -0.41009272976462086, -0.3340427999073796, -0.26122959716860805, -0.2232610212141708, -0.19940660549943345, -0.22528914465252825, -0.2780899004513415, -0.2744434134537457, -0.25654931231085953, -0.33068201704567457, -0.4678933079416083, -0.4695135511333177, -0.1648153518015647, -0.24618840082233362, -0.48052406086269883, -0.3771743489677135, -0.32261801643912236, -0.25560347987954657, -0.24629741950576545, -0.14035005553309787, -0.16659160448853783, -0.2442749349648139, -0.236978201704666, -0.20882506652418442, -0.22637331529204374, -0.29836135937516417, -0.39081484182421633, -0.3909877680117404, -0.3650093676025108, -0.2642347521955202, -0.13023199393098395, -0.18214744283501716, -0.3020867909366345, -0.33754229827467697, -0.34391801162306024, -0.31454499496763333, -0.26713502510135356, -0.2910439501578139, -0.11686573876684037, -0.1673094354445226, -0.24345334692542053, -0.30852998240535356, -0.35647376789395935, -0.37154654069487236, -0.3600149954730796, -0.2667062802488047, -0.21902000440899627, -0.2484456507736752, -0.2774107871825038, -0.2941432754570741, -0.31118778272216474, -0.32662896348779213, -0.3053947554403962, -0.2160201109821145, -0.17343703730647775, -0.17792559965198507, -0.19880643679444177, -0.2725068260604502, -0.3152120758468442, -0.28217377586905457, -0.11595223738495974, 0.0541902144377957, 0.11488166735824024, -0.2559698195630773, 0.01930235610660702, -0.002236352401425279, 0.4468796487277231, 0.15514959977323883, 0.4207694853966899, 0.3854474319642236, 0.4373497234409598, -0.4694994504625001, -0.3662719146782649, -0.20354085369650932, -0.015043790774988963, -0.4185651697093675, -0.17896653874461066, -0.032896162706066434, -0.061098168330843805, -0.1953772325689087, -0.2545198683315988, -0.3363741032654488, -0.39191536320988973, -0.36531668408458984, -0.3489657612020167, -0.35455202891175475, -0.38925192399566555, 0.48781635300571935, -0.2820884378129733, -0.241939488189864, -0.24987341685836384, -0.3034880535179809, -0.2910712014014081, -0.2783103765422581, -0.30017802073304267, -0.23735882385318519, -0.15802705569807785, -0.1688725350672513, 0.00533368216211727, -0.2545762573057857, -0.28210347487274845, -0.29791870250051034, -0.3228369901949648, -0.3895802937323367, 0.4323827980583488, 0.17439196334535723, -0.12961039467398905, -0.2236296109730489, -0.04022635205333813, -0.4264043621594098, -0.0019025255615048309, -0.07466309859101727, -0.08665327413623203, -0.08169104440753472, -0.31617519541327965, -0.47420548422877573, 0.1502044753855003, 0.30507923857624064, 0.031032583278971515, -0.17852388186996393, -0.3371347884709195, -0.41780861421172233, -0.2023933346444835, -0.10604901297633518, -0.10771248771493447, -0.16037790997569346, -0.18698410763089868, -0.17355977250879562, -0.008242337244190878, -0.011401999431292609, -0.1876701734835322, -0.3601715640598968, 0.011681766969516616, -0.1931417836124183]
ideal offset:  -0.16889341450193418

আমরা এখন কিছু হিউরিস্টিক ব্যবহার করে চেষ্টা করতে পারি এবং অনুমান করতে পারি যে নোটগুলির সবচেয়ে সম্ভাব্য ক্রমটি গাওয়া হয়েছিল। উপরে গণনা করা আদর্শ অফসেট একটি উপাদান - তবে আমাদের গতি (কতটি ভবিষ্যদ্বাণী করে, বলুন, একটি অষ্টম?), এবং পরিমাণ নির্ধারণ শুরু করার জন্য অফসেট সময়ও জানতে হবে। এটি সহজ রাখার জন্য, আমরা শুধু বিভিন্ন গতি এবং সময়ের অফসেট চেষ্টা করব এবং পরিমাপ করার ত্রুটি পরিমাপ করব, শেষ পর্যন্ত এই ত্রুটিটি কম করে এমন মান ব্যবহার করে।

def quantize_predictions(group, ideal_offset):
  # Group values are either 0, or a pitch in Hz.
  non_zero_values = [v for v in group if v != 0]
  zero_values_count = len(group) - len(non_zero_values)

  # Create a rest if 80% is silent, otherwise create a note.
  if zero_values_count > 0.8 * len(group):
    # Interpret as a rest. Count each dropped note as an error, weighted a bit
    # worse than a badly sung note (which would 'cost' 0.5).
    return 0.51 * len(non_zero_values), "Rest"
  else:
    # Interpret as note, estimating as mean of non-rest predictions.
    h = round(
        statistics.mean([
            12 * math.log2(freq / C0) - ideal_offset for freq in non_zero_values
        ]))
    octave = h // 12
    n = h % 12
    note = note_names[n] + str(octave)
    # Quantization error is the total difference from the quantized note.
    error = sum([
        abs(12 * math.log2(freq / C0) - ideal_offset - h)
        for freq in non_zero_values
    ])
    return error, note


def get_quantization_and_error(pitch_outputs_and_rests, predictions_per_eighth,
                               prediction_start_offset, ideal_offset):
  # Apply the start offset - we can just add the offset as rests.
  pitch_outputs_and_rests = [0] * prediction_start_offset + \
                            pitch_outputs_and_rests
  # Collect the predictions for each note (or rest).
  groups = [
      pitch_outputs_and_rests[i:i + predictions_per_eighth]
      for i in range(0, len(pitch_outputs_and_rests), predictions_per_eighth)
  ]

  quantization_error = 0

  notes_and_rests = []
  for group in groups:
    error, note_or_rest = quantize_predictions(group, ideal_offset)
    quantization_error += error
    notes_and_rests.append(note_or_rest)

  return quantization_error, notes_and_rests


best_error = float("inf")
best_notes_and_rests = None
best_predictions_per_note = None

for predictions_per_note in range(20, 65, 1):
  for prediction_start_offset in range(predictions_per_note):

    error, notes_and_rests = get_quantization_and_error(
        pitch_outputs_and_rests, predictions_per_note,
        prediction_start_offset, ideal_offset)

    if error < best_error:
      best_error = error
      best_notes_and_rests = notes_and_rests
      best_predictions_per_note = predictions_per_note

# At this point, best_notes_and_rests contains the best quantization.
# Since we don't need to have rests at the beginning, let's remove these:
while best_notes_and_rests[0] == 'Rest':
  best_notes_and_rests = best_notes_and_rests[1:]
# Also remove silence at the end.
while best_notes_and_rests[-1] == 'Rest':
  best_notes_and_rests = best_notes_and_rests[:-1]

এখন শীট মিউজিক স্কোর হিসাবে কোয়ান্টাইজড নোট লিখি!

এটা করতে আমরা দুটি লাইব্রেরি ব্যবহার করা হবে: music21 এবং ওপেন পত্রক গান প্রদর্শন

# Creating the sheet music score.
sc = music21.stream.Score()
# Adjust the speed to match the actual singing.
bpm = 60 * 60 / best_predictions_per_note
print ('bpm: ', bpm)
a = music21.tempo.MetronomeMark(number=bpm)
sc.insert(0,a)

for snote in best_notes_and_rests:
    d = 'half'
    if snote == 'Rest':
      sc.append(music21.note.Rest(type=d))
    else:
      sc.append(music21.note.Note(snote, type=d))
bpm:  78.26086956521739

একটি মিউজিক স্কোর দেখানোর জন্য ওপেন শীট মিউজিক ডিসপ্লে (JS কোড) ব্যবহার করতে সাহায্যকারী ফাংশনটি [এটি চালান]

from IPython.core.display import display, HTML, Javascript
import json, random

def showScore(score):
    xml = open(score.write('musicxml')).read()
    showMusicXML(xml)

def showMusicXML(xml):
    DIV_ID = "OSMD_div"
    display(HTML('<div id="'+DIV_ID+'">loading OpenSheetMusicDisplay</div>'))
    script = """
    var div_id = { {DIV_ID} };
    function loadOSMD() {
        return new Promise(function(resolve, reject){
            if (window.opensheetmusicdisplay) {
                return resolve(window.opensheetmusicdisplay)
            }
            // OSMD script has a 'define' call which conflicts with requirejs
            var _define = window.define // save the define object
            window.define = undefined // now the loaded script will ignore requirejs
            var s = document.createElement( 'script' );
            s.setAttribute( 'src', "https://cdn.jsdelivr.net/npm/opensheetmusicdisplay@0.7.6/build/opensheetmusicdisplay.min.js" );
            //s.setAttribute( 'src', "/custom/opensheetmusicdisplay.js" );
            s.onload=function(){
                window.define = _define
                resolve(opensheetmusicdisplay);
            };
            document.body.appendChild( s ); // browser will try to load the new script tag
        })
    }
    loadOSMD().then((OSMD)=>{
        window.openSheetMusicDisplay = new OSMD.OpenSheetMusicDisplay(div_id, {
          drawingParameters: "compacttight"
        });
        openSheetMusicDisplay
            .load({ {data} })
            .then(
              function() {
                openSheetMusicDisplay.render();
              }
            );
    })
    """.replace('{ {DIV_ID} }',DIV_ID).replace('{ {data} }',json.dumps(xml))
    display(Javascript(script))
    return
# rendering the music score
showScore(sc)
print(best_notes_and_rests)
/tmpfs/src/tf_docs_env/lib/python3.7/site-packages/music21/musicxml/m21ToXml.py:465: MusicXMLWarning: <music21.stream.Score 0x7f276c652190> is not well-formed; see isWellFormedNotation()
  category=MusicXMLWarning)
<IPython.core.display.Javascript object>
['C3', 'D3', 'E3', 'F3', 'G3', 'A3', 'B3', 'C4']

আসুন মিউজিক নোটগুলিকে একটি MIDI ফাইলে রূপান্তর করি এবং এটি শুনি।

এই ফাইলটি তৈরি করতে, আমরা আগে তৈরি করা স্ট্রিমটি ব্যবহার করতে পারি।

# Saving the recognized musical notes as a MIDI file
converted_audio_file_as_midi = converted_audio_file[:-4] + '.mid'
fp = sc.write('midi', fp=converted_audio_file_as_midi)
wav_from_created_midi = converted_audio_file_as_midi.replace(' ', '_') + "_midioutput.wav"
print(wav_from_created_midi)
converted_audio_file.mid_midioutput.wav

Colab-এ এটি শুনতে, আমাদের এটিকে আবার wav-এ রূপান্তর করতে হবে। এটি করার একটি সহজ উপায় হল ভীতুতা ব্যবহার করা।

timidity $converted_audio_file_as_midi -Ow -o $wav_from_created_midi
Playing converted_audio_file.mid
MIDI file: converted_audio_file.mid
Format: 1  Tracks: 2  Divisions: 1024
Track name:
Playing time: ~16 seconds
Notes cut: 0
Notes lost totally: 0

এবং অবশেষে, অডিও শুনুন, নোট থেকে তৈরি, মডেল দ্বারা অনুমান করা ভবিষ্যদ্বাণী করা পিচগুলি থেকে MIDI এর মাধ্যমে তৈরি!

Audio(wav_from_created_midi)
