This tutorial provides examples of how to load pandas DataFrames into TensorFlow.
You will use a small heart disease dataset provided by the UCI Machine Learning Repository. There are several hundred rows in the CSV. Each row describes a patient, and each column describes an attribute. You will use this information to predict whether a patient has heart disease, which is a binary classification task.
Read data using pandas
import pandas as pd
import tensorflow as tf
SHUFFLE_BUFFER = 500
BATCH_SIZE = 2
2023-09-30 01:24:49.256222: E tensorflow/compiler/xla/stream_executor/cuda/cuda_dnn.cc:9342] Unable to register cuDNN factory: Attempting to register factory for plugin cuDNN when one has already been registered 2023-09-30 01:24:49.256270: E tensorflow/compiler/xla/stream_executor/cuda/cuda_fft.cc:609] Unable to register cuFFT factory: Attempting to register factory for plugin cuFFT when one has already been registered 2023-09-30 01:24:49.256301: E tensorflow/compiler/xla/stream_executor/cuda/cuda_blas.cc:1518] Unable to register cuBLAS factory: Attempting to register factory for plugin cuBLAS when one has already been registered
Download the CSV file containing the heart disease dataset:
csv_file = tf.keras.utils.get_file('heart.csv', 'https://storage.googleapis.com/download.tensorflow.org/data/heart.csv')
Downloading data from https://storage.googleapis.com/download.tensorflow.org/data/heart.csv 13273/13273 [==============================] - 0s 0us/step
Read the CSV file using pandas:
df = pd.read_csv(csv_file)
This is what the data looks like:
df.head()
df.dtypes
age int64 sex int64 cp int64 trestbps int64 chol int64 fbs int64 restecg int64 thalach int64 exang int64 oldpeak float64 slope int64 ca int64 thal object target int64 dtype: object
You will build models to predict the label contained in the target column.
target = df.pop('target')
A DataFrame as an array
If your data has a uniform datatype, or dtype, it's possible to use a pandas DataFrame anywhere you could use a NumPy array. This works because the pandas.DataFrame class supports the __array__ protocol, and TensorFlow's tf.convert_to_tensor function accepts objects that support the protocol.
Take the numeric features from the dataset (skip the categorical features for now):
numeric_feature_names = ['age', 'thalach', 'trestbps', 'chol', 'oldpeak']
numeric_features = df[numeric_feature_names]
numeric_features.head()
The DataFrame can be converted to a NumPy array using the DataFrame.values property or numpy.array(df). To convert it to a tensor, use tf.convert_to_tensor:
tf.convert_to_tensor(numeric_features)
2023-09-30 01:24:51.712228: W tensorflow/core/common_runtime/gpu/gpu_device.cc:2211] Cannot dlopen some GPU libraries. Please make sure the missing libraries mentioned above are installed properly if you would like to use GPU. Follow the guide at https://www.tensorflow.org/install/gpu for how to download and setup the required libraries for your platform.
Skipping registering GPU devices...
<tf.Tensor: shape=(303, 5), dtype=float64, numpy=
array([[ 63. , 150. , 145. , 233. , 2.3],
[ 67. , 108. , 160. , 286. , 1.5],
[ 67. , 129. , 120. , 229. , 2.6],
...,
[ 65. , 127. , 135. , 254. , 2.8],
[ 48. , 150. , 130. , 256. , 0. ],
[ 63. , 154. , 150. , 407. , 4. ]])>
In general, if an object can be converted to a tensor with tf.convert_to_tensor it can be passed anywhere you can pass a tf.Tensor.
With Model.fit
A DataFrame, interpreted as a single tensor, can be used directly as an argument to the Model.fit method.
Below is an example of training a model on the numeric features of the dataset.
The first step is to normalize the input ranges. Use a tf.keras.layers.Normalization layer for that.
To set the layer's mean and standard-deviation before running it be sure to call the Normalization.adapt method:
normalizer = tf.keras.layers.Normalization(axis=-1)
normalizer.adapt(numeric_features)
Call the layer on the first three rows of the DataFrame to visualize an example of the output from this layer:
normalizer(numeric_features.iloc[:3])
<tf.Tensor: shape=(3, 5), dtype=float32, numpy=
array([[ 0.93383914, 0.03480718, 0.74578077, -0.2600867 , 1.0680453 ],
[ 1.3782105 , -1.7806165 , 1.5923285 , 0.7573879 , 0.38022864],
[ 1.3782105 , -0.87290466, -0.6651321 , -0.3368772 , 1.3259765 ]],
dtype=float32)>
Use the normalization layer as the first layer of a simple model:
def get_basic_model():
model = tf.keras.Sequential([
normalizer,
tf.keras.layers.Dense(10, activation='relu'),
tf.keras.layers.Dense(10, activation='relu'),
tf.keras.layers.Dense(1)
])
model.compile(optimizer='adam',
loss=tf.keras.losses.BinaryCrossentropy(from_logits=True),
metrics=['accuracy'])
return model
When you pass the DataFrame as the x argument to Model.fit, Keras treats the DataFrame as it would a NumPy array:
model = get_basic_model()
model.fit(numeric_features, target, epochs=15, batch_size=BATCH_SIZE)
Epoch 1/15 152/152 [==============================] - 1s 2ms/step - loss: 0.6297 - accuracy: 0.7096 Epoch 2/15 152/152 [==============================] - 0s 1ms/step - loss: 0.5113 - accuracy: 0.7261 Epoch 3/15 152/152 [==============================] - 0s 2ms/step - loss: 0.4755 - accuracy: 0.7261 Epoch 4/15 152/152 [==============================] - 0s 1ms/step - loss: 0.4604 - accuracy: 0.7261 Epoch 5/15 152/152 [==============================] - 0s 1ms/step - loss: 0.4531 - accuracy: 0.7393 Epoch 6/15 152/152 [==============================] - 0s 1ms/step - loss: 0.4467 - accuracy: 0.7525 Epoch 7/15 152/152 [==============================] - 0s 1ms/step - loss: 0.4413 - accuracy: 0.7690 Epoch 8/15 152/152 [==============================] - 0s 1ms/step - loss: 0.4369 - accuracy: 0.7723 Epoch 9/15 152/152 [==============================] - 0s 1ms/step - loss: 0.4353 - accuracy: 0.7756 Epoch 10/15 152/152 [==============================] - 0s 1ms/step - loss: 0.4310 - accuracy: 0.7789 Epoch 11/15 152/152 [==============================] - 0s 1ms/step - loss: 0.4301 - accuracy: 0.7789 Epoch 12/15 152/152 [==============================] - 0s 1ms/step - loss: 0.4272 - accuracy: 0.7921 Epoch 13/15 152/152 [==============================] - 0s 1ms/step - loss: 0.4254 - accuracy: 0.7921 Epoch 14/15 152/152 [==============================] - 0s 1ms/step - loss: 0.4240 - accuracy: 0.7921 Epoch 15/15 152/152 [==============================] - 0s 1ms/step - loss: 0.4229 - accuracy: 0.7888 <keras.src.callbacks.History at 0x7ff6300f1df0>
With tf.data
If you want to apply tf.data transformations to a DataFrame of a uniform dtype, the Dataset.from_tensor_slices method will create a dataset that iterates over the rows of the DataFrame. Each row is initially a vector of values. To train a model, you need (inputs, labels) pairs, so pass (features, labels) and Dataset.from_tensor_slices will return the needed pairs of slices:
numeric_dataset = tf.data.Dataset.from_tensor_slices((numeric_features, target))
for row in numeric_dataset.take(3):
print(row)
(<tf.Tensor: shape=(5,), dtype=float64, numpy=array([ 63. , 150. , 145. , 233. , 2.3])>, <tf.Tensor: shape=(), dtype=int64, numpy=0>) (<tf.Tensor: shape=(5,), dtype=float64, numpy=array([ 67. , 108. , 160. , 286. , 1.5])>, <tf.Tensor: shape=(), dtype=int64, numpy=1>) (<tf.Tensor: shape=(5,), dtype=float64, numpy=array([ 67. , 129. , 120. , 229. , 2.6])>, <tf.Tensor: shape=(), dtype=int64, numpy=0>)
numeric_batches = numeric_dataset.shuffle(1000).batch(BATCH_SIZE)
model = get_basic_model()
model.fit(numeric_batches, epochs=15)
Epoch 1/15 152/152 [==============================] - 1s 1ms/step - loss: 0.5794 - accuracy: 0.7261 Epoch 2/15 152/152 [==============================] - 0s 1ms/step - loss: 0.5185 - accuracy: 0.7261 Epoch 3/15 152/152 [==============================] - 0s 1ms/step - loss: 0.4922 - accuracy: 0.7294 Epoch 4/15 152/152 [==============================] - 0s 1ms/step - loss: 0.4760 - accuracy: 0.7360 Epoch 5/15 152/152 [==============================] - 0s 1ms/step - loss: 0.4640 - accuracy: 0.7657 Epoch 6/15 152/152 [==============================] - 0s 1ms/step - loss: 0.4545 - accuracy: 0.7756 Epoch 7/15 152/152 [==============================] - 0s 1ms/step - loss: 0.4464 - accuracy: 0.7855 Epoch 8/15 152/152 [==============================] - 0s 1ms/step - loss: 0.4397 - accuracy: 0.7888 Epoch 9/15 152/152 [==============================] - 0s 1ms/step - loss: 0.4345 - accuracy: 0.7888 Epoch 10/15 152/152 [==============================] - 0s 1ms/step - loss: 0.4306 - accuracy: 0.7921 Epoch 11/15 152/152 [==============================] - 0s 1ms/step - loss: 0.4262 - accuracy: 0.7921 Epoch 12/15 152/152 [==============================] - 0s 1ms/step - loss: 0.4241 - accuracy: 0.7954 Epoch 13/15 152/152 [==============================] - 0s 1ms/step - loss: 0.4215 - accuracy: 0.7987 Epoch 14/15 152/152 [==============================] - 0s 1ms/step - loss: 0.4179 - accuracy: 0.7987 Epoch 15/15 152/152 [==============================] - 0s 1ms/step - loss: 0.4163 - accuracy: 0.7987 <keras.src.callbacks.History at 0x7ff61c0f4760>
A DataFrame as a dictionary
When you start dealing with heterogeneous data, it is no longer possible to treat the DataFrame as if it were a single array. TensorFlow tensors require that all elements have the same dtype.
So, in this case, you need to start treating it as a dictionary of columns, where each column has a uniform dtype. A DataFrame is a lot like a dictionary of arrays, so typically all you need to do is cast the DataFrame to a Python dict. Many important TensorFlow APIs support (nested-)dictionaries of arrays as inputs.
tf.data input pipelines handle this quite well. All tf.data operations handle dictionaries and tuples automatically. So, to make a dataset of dictionary-examples from a DataFrame, just cast it to a dict before slicing it with Dataset.from_tensor_slices:
numeric_dict_ds = tf.data.Dataset.from_tensor_slices((dict(numeric_features), target))
Here are the first three examples from that dataset:
for row in numeric_dict_ds.take(3):
print(row)
({'age': <tf.Tensor: shape=(), dtype=int64, numpy=63>, 'thalach': <tf.Tensor: shape=(), dtype=int64, numpy=150>, 'trestbps': <tf.Tensor: shape=(), dtype=int64, numpy=145>, 'chol': <tf.Tensor: shape=(), dtype=int64, numpy=233>, 'oldpeak': <tf.Tensor: shape=(), dtype=float64, numpy=2.3>}, <tf.Tensor: shape=(), dtype=int64, numpy=0>)
({'age': <tf.Tensor: shape=(), dtype=int64, numpy=67>, 'thalach': <tf.Tensor: shape=(), dtype=int64, numpy=108>, 'trestbps': <tf.Tensor: shape=(), dtype=int64, numpy=160>, 'chol': <tf.Tensor: shape=(), dtype=int64, numpy=286>, 'oldpeak': <tf.Tensor: shape=(), dtype=float64, numpy=1.5>}, <tf.Tensor: shape=(), dtype=int64, numpy=1>)
({'age': <tf.Tensor: shape=(), dtype=int64, numpy=67>, 'thalach': <tf.Tensor: shape=(), dtype=int64, numpy=129>, 'trestbps': <tf.Tensor: shape=(), dtype=int64, numpy=120>, 'chol': <tf.Tensor: shape=(), dtype=int64, numpy=229>, 'oldpeak': <tf.Tensor: shape=(), dtype=float64, numpy=2.6>}, <tf.Tensor: shape=(), dtype=int64, numpy=0>)
Dictionaries with Keras
Typically, Keras models and layers expect a single input tensor, but these classes can accept and return nested structures of dictionaries, tuples and tensors. These structures are known as "nests" (refer to the tf.nest module for details).
There are two equivalent ways you can write a Keras model that accepts a dictionary as input.
1. The Model-subclass style
You write a subclass of tf.keras.Model (or tf.keras.Layer). You directly handle the inputs, and create the outputs:
def stack_dict(inputs, fun=tf.stack):
values = []
for key in sorted(inputs.keys()):
values.append(tf.cast(inputs[key], tf.float32))
return fun(values, axis=-1)
class MyModel(tf.keras.Model):
def __init__(self):
# Create all the internal layers in init.
super().__init__()
self.normalizer = tf.keras.layers.Normalization(axis=-1)
self.seq = tf.keras.Sequential([
self.normalizer,
tf.keras.layers.Dense(10, activation='relu'),
tf.keras.layers.Dense(10, activation='relu'),
tf.keras.layers.Dense(1)
])
def adapt(self, inputs):
# Stack the inputs and `adapt` the normalization layer.
inputs = stack_dict(inputs)
self.normalizer.adapt(inputs)
def call(self, inputs):
# Stack the inputs
inputs = stack_dict(inputs)
# Run them through all the layers.
result = self.seq(inputs)
return result
model = MyModel()
model.adapt(dict(numeric_features))
model.compile(optimizer='adam',
loss=tf.keras.losses.BinaryCrossentropy(from_logits=True),
metrics=['accuracy'],
run_eagerly=True)
This model can accept either a dictionary of columns or a dataset of dictionary-elements for training:
model.fit(dict(numeric_features), target, epochs=5, batch_size=BATCH_SIZE)
Epoch 1/5 152/152 [==============================] - 4s 23ms/step - loss: 0.6740 - accuracy: 0.7096 Epoch 2/5 152/152 [==============================] - 3s 23ms/step - loss: 0.5527 - accuracy: 0.7261 Epoch 3/5 152/152 [==============================] - 3s 22ms/step - loss: 0.5048 - accuracy: 0.7261 Epoch 4/5 152/152 [==============================] - 3s 22ms/step - loss: 0.4826 - accuracy: 0.7261 Epoch 5/5 152/152 [==============================] - 3s 22ms/step - loss: 0.4680 - accuracy: 0.7261 <keras.src.callbacks.History at 0x7ff600137280>
numeric_dict_batches = numeric_dict_ds.shuffle(SHUFFLE_BUFFER).batch(BATCH_SIZE)
model.fit(numeric_dict_batches, epochs=5)
Epoch 1/5 152/152 [==============================] - 3s 20ms/step - loss: 0.4571 - accuracy: 0.7294 Epoch 2/5 152/152 [==============================] - 3s 20ms/step - loss: 0.4499 - accuracy: 0.7360 Epoch 3/5 152/152 [==============================] - 3s 20ms/step - loss: 0.4466 - accuracy: 0.7360 Epoch 4/5 152/152 [==============================] - 3s 20ms/step - loss: 0.4423 - accuracy: 0.7492 Epoch 5/5 152/152 [==============================] - 3s 20ms/step - loss: 0.4377 - accuracy: 0.7492 <keras.src.callbacks.History at 0x7ff60012c730>
Here are the predictions for the first three examples:
model.predict(dict(numeric_features.iloc[:3]))
1/1 [==============================] - 0s 26ms/step
array([[[-0.10019256]],
[[ 0.59262305]],
[[ 0.14676306]]], dtype=float32)
2. The Keras functional style
inputs = {}
for name, column in numeric_features.items():
inputs[name] = tf.keras.Input(
shape=(1,), name=name, dtype=tf.float32)
inputs
{'age': <KerasTensor: shape=(None, 1) dtype=float32 (created by layer 'age')>,
'thalach': <KerasTensor: shape=(None, 1) dtype=float32 (created by layer 'thalach')>,
'trestbps': <KerasTensor: shape=(None, 1) dtype=float32 (created by layer 'trestbps')>,
'chol': <KerasTensor: shape=(None, 1) dtype=float32 (created by layer 'chol')>,
'oldpeak': <KerasTensor: shape=(None, 1) dtype=float32 (created by layer 'oldpeak')>}
x = stack_dict(inputs, fun=tf.concat)
normalizer = tf.keras.layers.Normalization(axis=-1)
normalizer.adapt(stack_dict(dict(numeric_features)))
x = normalizer(x)
x = tf.keras.layers.Dense(10, activation='relu')(x)
x = tf.keras.layers.Dense(10, activation='relu')(x)
x = tf.keras.layers.Dense(1)(x)
model = tf.keras.Model(inputs, x)
model.compile(optimizer='adam',
loss=tf.keras.losses.BinaryCrossentropy(from_logits=True),
metrics=['accuracy'],
run_eagerly=True)

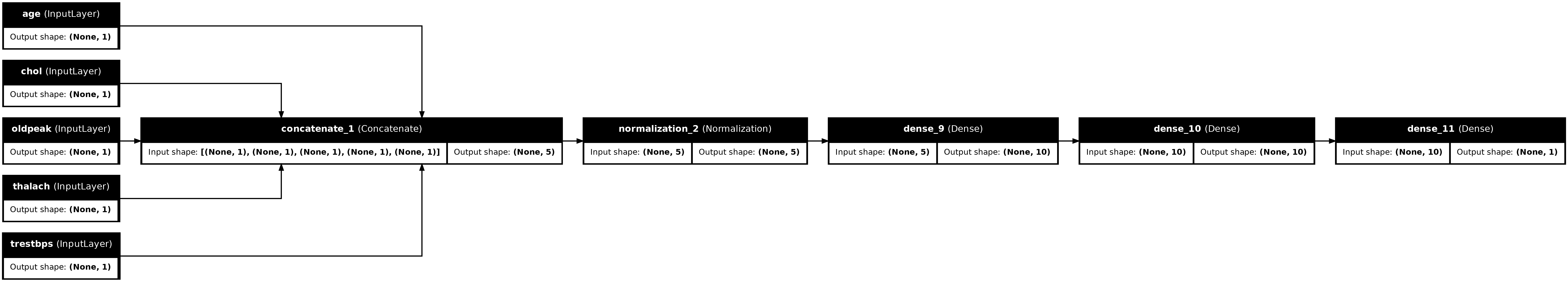

tf.keras.utils.plot_model(model, rankdir="LR", show_shapes=True)
You can train the functional model the same way as the model subclass:
model.fit(dict(numeric_features), target, epochs=5, batch_size=BATCH_SIZE)
Epoch 1/5 152/152 [==============================] - 3s 22ms/step - loss: 0.6549 - accuracy: 0.7261 Epoch 2/5 152/152 [==============================] - 3s 21ms/step - loss: 0.5573 - accuracy: 0.7261 Epoch 3/5 152/152 [==============================] - 3s 21ms/step - loss: 0.4951 - accuracy: 0.7360 Epoch 4/5 152/152 [==============================] - 3s 21ms/step - loss: 0.4632 - accuracy: 0.7459 Epoch 5/5 152/152 [==============================] - 3s 21ms/step - loss: 0.4493 - accuracy: 0.7756 <keras.src.callbacks.History at 0x7ff75bff7160>
numeric_dict_batches = numeric_dict_ds.shuffle(SHUFFLE_BUFFER).batch(BATCH_SIZE)
model.fit(numeric_dict_batches, epochs=5)
Epoch 1/5 152/152 [==============================] - 3s 21ms/step - loss: 0.4393 - accuracy: 0.7855 Epoch 2/5 152/152 [==============================] - 3s 22ms/step - loss: 0.4356 - accuracy: 0.7723 Epoch 3/5 152/152 [==============================] - 3s 21ms/step - loss: 0.4330 - accuracy: 0.7888 Epoch 4/5 152/152 [==============================] - 3s 21ms/step - loss: 0.4300 - accuracy: 0.7756 Epoch 5/5 152/152 [==============================] - 3s 21ms/step - loss: 0.4294 - accuracy: 0.7987 <keras.src.callbacks.History at 0x7ff60012cd60>
Full example
If you're passing a heterogeneous DataFrame to Keras, each column may need unique preprocessing. You could do this preprocessing directly in the DataFrame, but for a model to work correctly, inputs always need to be preprocessed the same way. So, the best approach is to build the preprocessing into the model. Keras preprocessing layers cover many common tasks.
Build the preprocessing head
In this dataset some of the "integer" features in the raw data are actually Categorical indices. These indices are not really ordered numeric values (refer to the the dataset description for details). Because these are unordered they are inappropriate to feed directly to the model; the model would interpret them as being ordered. To use these inputs you'll need to encode them, either as one-hot vectors or embedding vectors. The same applies to string-categorical features.
Binary features on the other hand do not generally need to be encoded or normalized.
Start by by creating a list of the features that fall into each group:
binary_feature_names = ['sex', 'fbs', 'exang']
categorical_feature_names = ['cp', 'restecg', 'slope', 'thal', 'ca']

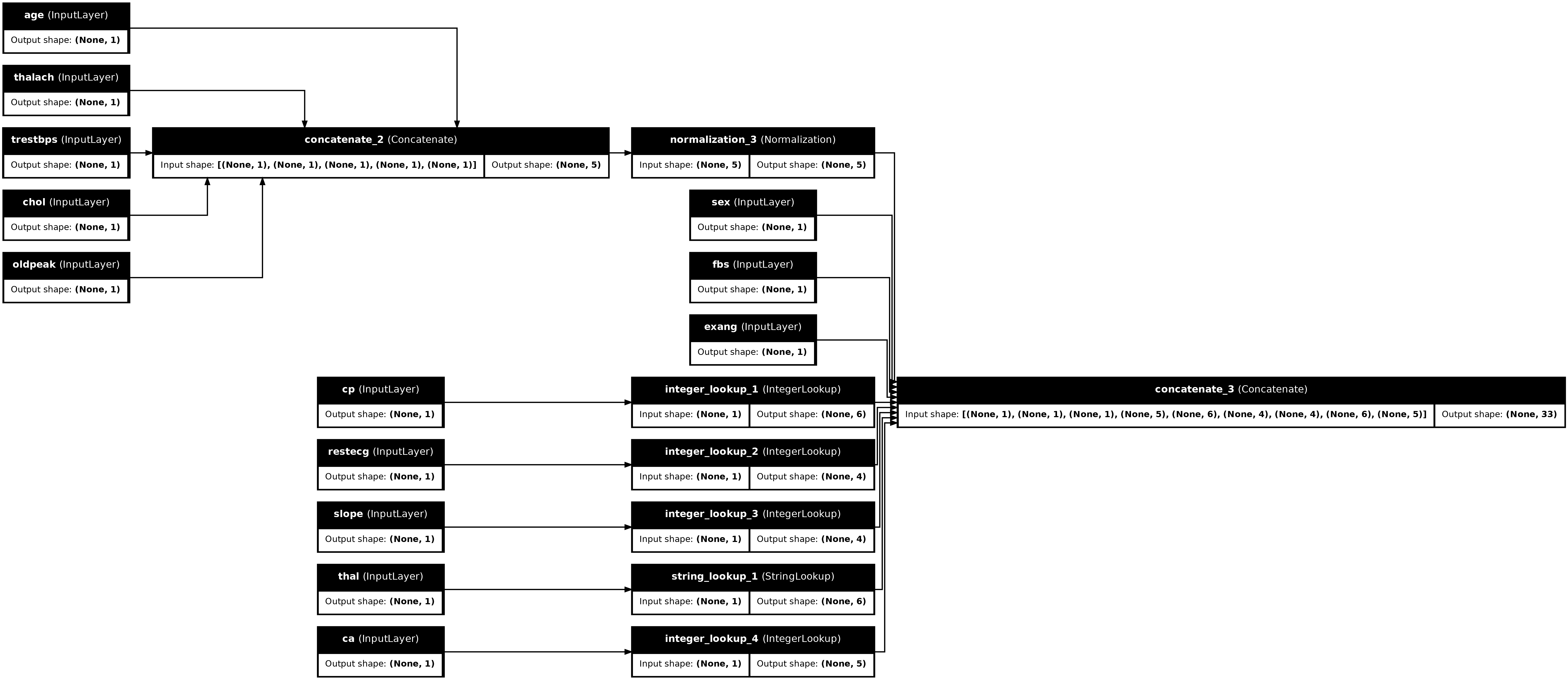

The next step is to build a preprocessing model that will apply appropriate preprocessing to each input and concatenate the results.
This section uses the Keras Functional API to implement the preprocessing. You start by creating one tf.keras.Input for each column of the dataframe:
inputs = {}
for name, column in df.items():
if type(column[0]) == str:
dtype = tf.string
elif (name in categorical_feature_names or
name in binary_feature_names):
dtype = tf.int64
else:
dtype = tf.float32
inputs[name] = tf.keras.Input(shape=(), name=name, dtype=dtype)
inputs
{'age': <KerasTensor: shape=(None,) dtype=float32 (created by layer 'age')>,
'sex': <KerasTensor: shape=(None,) dtype=int64 (created by layer 'sex')>,
'cp': <KerasTensor: shape=(None,) dtype=int64 (created by layer 'cp')>,
'trestbps': <KerasTensor: shape=(None,) dtype=float32 (created by layer 'trestbps')>,
'chol': <KerasTensor: shape=(None,) dtype=float32 (created by layer 'chol')>,
'fbs': <KerasTensor: shape=(None,) dtype=int64 (created by layer 'fbs')>,
'restecg': <KerasTensor: shape=(None,) dtype=int64 (created by layer 'restecg')>,
'thalach': <KerasTensor: shape=(None,) dtype=float32 (created by layer 'thalach')>,
'exang': <KerasTensor: shape=(None,) dtype=int64 (created by layer 'exang')>,
'oldpeak': <KerasTensor: shape=(None,) dtype=float32 (created by layer 'oldpeak')>,
'slope': <KerasTensor: shape=(None,) dtype=int64 (created by layer 'slope')>,
'ca': <KerasTensor: shape=(None,) dtype=int64 (created by layer 'ca')>,
'thal': <KerasTensor: shape=(None,) dtype=string (created by layer 'thal')>}
For each input you'll apply some transformations using Keras layers and TensorFlow ops. Each feature starts as a batch of scalars (shape=(batch,)). The output for each should be a batch of tf.float32 vectors (shape=(batch, n)). The last step will concatenate all those vectors together.
Binary inputs
Since the binary inputs don't need any preprocessing, just add the vector axis, cast them to float32 and add them to the list of preprocessed inputs:
preprocessed = []
for name in binary_feature_names:
inp = inputs[name]
inp = inp[:, tf.newaxis]
float_value = tf.cast(inp, tf.float32)
preprocessed.append(float_value)
preprocessed
[<KerasTensor: shape=(None, 1) dtype=float32 (created by layer 'tf.cast_5')>, <KerasTensor: shape=(None, 1) dtype=float32 (created by layer 'tf.cast_6')>, <KerasTensor: shape=(None, 1) dtype=float32 (created by layer 'tf.cast_7')>]
Numeric inputs
Like in the earlier section you'll want to run these numeric inputs through a tf.keras.layers.Normalization layer before using them. The difference is that this time they're input as a dict. The code below collects the numeric features from the DataFrame, stacks them together and passes those to the Normalization.adapt method.
normalizer = tf.keras.layers.Normalization(axis=-1)
normalizer.adapt(stack_dict(dict(numeric_features)))
The code below stacks the numeric features and runs them through the normalization layer.
numeric_inputs = {}
for name in numeric_feature_names:
numeric_inputs[name]=inputs[name]
numeric_inputs = stack_dict(numeric_inputs)
numeric_normalized = normalizer(numeric_inputs)
preprocessed.append(numeric_normalized)
preprocessed
[<KerasTensor: shape=(None, 1) dtype=float32 (created by layer 'tf.cast_5')>, <KerasTensor: shape=(None, 1) dtype=float32 (created by layer 'tf.cast_6')>, <KerasTensor: shape=(None, 1) dtype=float32 (created by layer 'tf.cast_7')>, <KerasTensor: shape=(None, 5) dtype=float32 (created by layer 'normalization_3')>]
Categorical features
To use categorical features you'll first need to encode them into either binary vectors or embeddings. Since these features only contain a small number of categories, convert the inputs directly to one-hot vectors using the output_mode='one_hot' option, supported by both the tf.keras.layers.StringLookup and tf.keras.layers.IntegerLookup layers.
Here is an example of how these layers work:
vocab = ['a','b','c']
lookup = tf.keras.layers.StringLookup(vocabulary=vocab, output_mode='one_hot')
lookup(['c','a','a','b','zzz'])
<tf.Tensor: shape=(5, 4), dtype=float32, numpy=
array([[0., 0., 0., 1.],
[0., 1., 0., 0.],
[0., 1., 0., 0.],
[0., 0., 1., 0.],
[1., 0., 0., 0.]], dtype=float32)>
vocab = [1,4,7,99]
lookup = tf.keras.layers.IntegerLookup(vocabulary=vocab, output_mode='one_hot')
lookup([-1,4,1])
<tf.Tensor: shape=(3, 5), dtype=float32, numpy=
array([[1., 0., 0., 0., 0.],
[0., 0., 1., 0., 0.],
[0., 1., 0., 0., 0.]], dtype=float32)>
To determine the vocabulary for each input, create a layer to convert that vocabulary to a one-hot vector:
for name in categorical_feature_names:
vocab = sorted(set(df[name]))
print(f'name: {name}')
print(f'vocab: {vocab}\n')
if type(vocab[0]) is str:
lookup = tf.keras.layers.StringLookup(vocabulary=vocab, output_mode='one_hot')
else:
lookup = tf.keras.layers.IntegerLookup(vocabulary=vocab, output_mode='one_hot')
x = inputs[name][:, tf.newaxis]
x = lookup(x)
preprocessed.append(x)
name: cp vocab: [0, 1, 2, 3, 4] name: restecg vocab: [0, 1, 2] name: slope vocab: [1, 2, 3] name: thal vocab: ['1', '2', 'fixed', 'normal', 'reversible'] name: ca vocab: [0, 1, 2, 3]
Assemble the preprocessing head
At this point preprocessed is just a Python list of all the preprocessing results, each result has a shape of (batch_size, depth):
preprocessed
[<KerasTensor: shape=(None, 1) dtype=float32 (created by layer 'tf.cast_5')>, <KerasTensor: shape=(None, 1) dtype=float32 (created by layer 'tf.cast_6')>, <KerasTensor: shape=(None, 1) dtype=float32 (created by layer 'tf.cast_7')>, <KerasTensor: shape=(None, 5) dtype=float32 (created by layer 'normalization_3')>, <KerasTensor: shape=(None, 6) dtype=float32 (created by layer 'integer_lookup_1')>, <KerasTensor: shape=(None, 4) dtype=float32 (created by layer 'integer_lookup_2')>, <KerasTensor: shape=(None, 4) dtype=float32 (created by layer 'integer_lookup_3')>, <KerasTensor: shape=(None, 6) dtype=float32 (created by layer 'string_lookup_1')>, <KerasTensor: shape=(None, 5) dtype=float32 (created by layer 'integer_lookup_4')>]
Concatenate all the preprocessed features along the depth axis, so each dictionary-example is converted into a single vector. The vector contains categorical features, numeric features, and categorical one-hot features:
preprocesssed_result = tf.concat(preprocessed, axis=-1)
preprocesssed_result
<KerasTensor: shape=(None, 33) dtype=float32 (created by layer 'tf.concat_1')>
Now create a model out of that calculation so it can be reused:
preprocessor = tf.keras.Model(inputs, preprocesssed_result)
tf.keras.utils.plot_model(preprocessor, rankdir="LR", show_shapes=True)
To test the preprocessor, use the DataFrame.iloc accessor to slice the first example from the DataFrame. Then convert it to a dictionary and pass the dictionary to the preprocessor. The result is a single vector containing the binary features, normalized numeric features and the one-hot categorical features, in that order:
preprocessor(dict(df.iloc[:1]))
<tf.Tensor: shape=(1, 33), dtype=float32, numpy=
array([[ 1. , 1. , 0. , 0.93383914, -0.2600867 ,
1.0680453 , 0.03480718, 0.74578077, 0. , 0. ,
1. , 0. , 0. , 0. , 0. ,
0. , 0. , 1. , 0. , 0. ,
0. , 1. , 0. , 0. , 0. ,
1. , 0. , 0. , 0. , 1. ,
0. , 0. , 0. ]], dtype=float32)>
Create and train a model
Now build the main body of the model. Use the same configuration as in the previous example: A couple of Dense rectified-linear layers and a Dense(1) output layer for the classification.
body = tf.keras.Sequential([
tf.keras.layers.Dense(10, activation='relu'),
tf.keras.layers.Dense(10, activation='relu'),
tf.keras.layers.Dense(1)
])
Now put the two pieces together using the Keras functional API.
inputs
{'age': <KerasTensor: shape=(None,) dtype=float32 (created by layer 'age')>,
'sex': <KerasTensor: shape=(None,) dtype=int64 (created by layer 'sex')>,
'cp': <KerasTensor: shape=(None,) dtype=int64 (created by layer 'cp')>,
'trestbps': <KerasTensor: shape=(None,) dtype=float32 (created by layer 'trestbps')>,
'chol': <KerasTensor: shape=(None,) dtype=float32 (created by layer 'chol')>,
'fbs': <KerasTensor: shape=(None,) dtype=int64 (created by layer 'fbs')>,
'restecg': <KerasTensor: shape=(None,) dtype=int64 (created by layer 'restecg')>,
'thalach': <KerasTensor: shape=(None,) dtype=float32 (created by layer 'thalach')>,
'exang': <KerasTensor: shape=(None,) dtype=int64 (created by layer 'exang')>,
'oldpeak': <KerasTensor: shape=(None,) dtype=float32 (created by layer 'oldpeak')>,
'slope': <KerasTensor: shape=(None,) dtype=int64 (created by layer 'slope')>,
'ca': <KerasTensor: shape=(None,) dtype=int64 (created by layer 'ca')>,
'thal': <KerasTensor: shape=(None,) dtype=string (created by layer 'thal')>}
x = preprocessor(inputs)
x
<KerasTensor: shape=(None, 33) dtype=float32 (created by layer 'model_1')>
result = body(x)
result
<KerasTensor: shape=(None, 1) dtype=float32 (created by layer 'sequential_3')>
model = tf.keras.Model(inputs, result)
model.compile(optimizer='adam',
loss=tf.keras.losses.BinaryCrossentropy(from_logits=True),
metrics=['accuracy'])
This model expects a dictionary of inputs. The simplest way to pass it the data is to convert the DataFrame to a dict and pass that dict as the x argument to Model.fit:
history = model.fit(dict(df), target, epochs=5, batch_size=BATCH_SIZE)
Epoch 1/5 152/152 [==============================] - 1s 2ms/step - loss: 0.6348 - accuracy: 0.7261 Epoch 2/5 152/152 [==============================] - 0s 2ms/step - loss: 0.5157 - accuracy: 0.7261 Epoch 3/5 152/152 [==============================] - 0s 2ms/step - loss: 0.4369 - accuracy: 0.7393 Epoch 4/5 152/152 [==============================] - 0s 2ms/step - loss: 0.3781 - accuracy: 0.8053 Epoch 5/5 152/152 [==============================] - 0s 2ms/step - loss: 0.3393 - accuracy: 0.8284
Using tf.data works as well:
ds = tf.data.Dataset.from_tensor_slices((
dict(df),
target
))
ds = ds.batch(BATCH_SIZE)
import pprint
for x, y in ds.take(1):
pprint.pprint(x)
print()
print(y)
{'age': <tf.Tensor: shape=(2,), dtype=int64, numpy=array([63, 67])>,
'ca': <tf.Tensor: shape=(2,), dtype=int64, numpy=array([0, 3])>,
'chol': <tf.Tensor: shape=(2,), dtype=int64, numpy=array([233, 286])>,
'cp': <tf.Tensor: shape=(2,), dtype=int64, numpy=array([1, 4])>,
'exang': <tf.Tensor: shape=(2,), dtype=int64, numpy=array([0, 1])>,
'fbs': <tf.Tensor: shape=(2,), dtype=int64, numpy=array([1, 0])>,
'oldpeak': <tf.Tensor: shape=(2,), dtype=float64, numpy=array([2.3, 1.5])>,
'restecg': <tf.Tensor: shape=(2,), dtype=int64, numpy=array([2, 2])>,
'sex': <tf.Tensor: shape=(2,), dtype=int64, numpy=array([1, 1])>,
'slope': <tf.Tensor: shape=(2,), dtype=int64, numpy=array([3, 2])>,
'thal': <tf.Tensor: shape=(2,), dtype=string, numpy=array([b'fixed', b'normal'], dtype=object)>,
'thalach': <tf.Tensor: shape=(2,), dtype=int64, numpy=array([150, 108])>,
'trestbps': <tf.Tensor: shape=(2,), dtype=int64, numpy=array([145, 160])>}
tf.Tensor([0 1], shape=(2,), dtype=int64)
history = model.fit(ds, epochs=5)
Epoch 1/5 152/152 [==============================] - 1s 2ms/step - loss: 0.3113 - accuracy: 0.8350 Epoch 2/5 152/152 [==============================] - 0s 2ms/step - loss: 0.2935 - accuracy: 0.8416 Epoch 3/5 152/152 [==============================] - 0s 2ms/step - loss: 0.2799 - accuracy: 0.8449 Epoch 4/5 152/152 [==============================] - 0s 2ms/step - loss: 0.2694 - accuracy: 0.8515 Epoch 5/5 152/152 [==============================] - 0s 2ms/step - loss: 0.2609 - accuracy: 0.8515
