Overview
The tf.distribute.Strategy API provides an abstraction for distributing your training across multiple processing units. It allows you to carry out distributed training using existing models and training code with minimal changes.
This tutorial demonstrates how to use the tf.distribute.MirroredStrategy to perform in-graph replication with synchronous training on many GPUs on one machine. The strategy essentially copies all of the model's variables to each processor. Then, it uses all-reduce to combine the gradients from all processors, and applies the combined value to all copies of the model.
You will use the tf.keras APIs to build the model and Model.fit for training it. (To learn about distributed training with a custom training loop and the MirroredStrategy, check out this tutorial.)
MirroredStrategy trains your model on multiple GPUs on a single machine. For synchronous training on many GPUs on multiple workers, use the tf.distribute.MultiWorkerMirroredStrategy with the Keras Model.fit or a custom training loop. For other options, refer to the Distributed training guide.
To learn about various other strategies, there is the Distributed training with TensorFlow guide.
Setup
import tensorflow_datasets as tfds
import tensorflow as tf
import os
# Load the TensorBoard notebook extension.
%load_ext tensorboard
2023-08-19 02:30:08.167129: E tensorflow/compiler/xla/stream_executor/cuda/cuda_dnn.cc:9342] Unable to register cuDNN factory: Attempting to register factory for plugin cuDNN when one has already been registered 2023-08-19 02:30:08.167180: E tensorflow/compiler/xla/stream_executor/cuda/cuda_fft.cc:609] Unable to register cuFFT factory: Attempting to register factory for plugin cuFFT when one has already been registered 2023-08-19 02:30:08.167235: E tensorflow/compiler/xla/stream_executor/cuda/cuda_blas.cc:1518] Unable to register cuBLAS factory: Attempting to register factory for plugin cuBLAS when one has already been registered WARNING:tensorflow:From /tmpfs/src/tf_docs_env/lib/python3.9/site-packages/tensorflow/python/ops/distributions/distribution.py:259: ReparameterizationType.__init__ (from tensorflow.python.ops.distributions.distribution) is deprecated and will be removed after 2019-01-01. Instructions for updating: The TensorFlow Distributions library has moved to TensorFlow Probability (https://github.com/tensorflow/probability). You should update all references to use `tfp.distributions` instead of `tf.distributions`. WARNING:tensorflow:From /tmpfs/src/tf_docs_env/lib/python3.9/site-packages/tensorflow/python/ops/distributions/bernoulli.py:165: RegisterKL.__init__ (from tensorflow.python.ops.distributions.kullback_leibler) is deprecated and will be removed after 2019-01-01. Instructions for updating: The TensorFlow Distributions library has moved to TensorFlow Probability (https://github.com/tensorflow/probability). You should update all references to use `tfp.distributions` instead of `tf.distributions`.
print(tf.__version__)
2.14.0-rc0
Download the dataset
Load the MNIST dataset from TensorFlow Datasets. This returns a dataset in the tf.data format.
Setting the with_info argument to True includes the metadata for the entire dataset, which is being saved here to info. Among other things, this metadata object includes the number of train and test examples.
datasets, info = tfds.load(name='mnist', with_info=True, as_supervised=True)
mnist_train, mnist_test = datasets['train'], datasets['test']
Define the distribution strategy
Create a MirroredStrategy object. This will handle distribution and provide a context manager (MirroredStrategy.scope) to build your model inside.
strategy = tf.distribute.MirroredStrategy()
INFO:tensorflow:Using MirroredStrategy with devices ('/job:localhost/replica:0/task:0/device:GPU:0', '/job:localhost/replica:0/task:0/device:GPU:1', '/job:localhost/replica:0/task:0/device:GPU:2', '/job:localhost/replica:0/task:0/device:GPU:3')
INFO:tensorflow:Using MirroredStrategy with devices ('/job:localhost/replica:0/task:0/device:GPU:0', '/job:localhost/replica:0/task:0/device:GPU:1', '/job:localhost/replica:0/task:0/device:GPU:2', '/job:localhost/replica:0/task:0/device:GPU:3')
print('Number of devices: {}'.format(strategy.num_replicas_in_sync))
Number of devices: 4
Set up the input pipeline
When training a model with multiple GPUs, you can use the extra computing power effectively by increasing the batch size. In general, use the largest batch size that fits the GPU memory and tune the learning rate accordingly.
# You can also do info.splits.total_num_examples to get the total
# number of examples in the dataset.
num_train_examples = info.splits['train'].num_examples
num_test_examples = info.splits['test'].num_examples
BUFFER_SIZE = 10000
BATCH_SIZE_PER_REPLICA = 64
BATCH_SIZE = BATCH_SIZE_PER_REPLICA * strategy.num_replicas_in_sync
Define a function that normalizes the image pixel values from the [0, 255] range to the [0, 1] range (feature scaling):
def scale(image, label):
image = tf.cast(image, tf.float32)
image /= 255
return image, label
Apply this scale function to the training and test data, and then use the tf.data.Dataset APIs to shuffle the training data (Dataset.shuffle), and batch it (Dataset.batch). Notice that you are also keeping an in-memory cache of the training data to improve performance (Dataset.cache).
train_dataset = mnist_train.map(scale).cache().shuffle(BUFFER_SIZE).batch(BATCH_SIZE)
eval_dataset = mnist_test.map(scale).batch(BATCH_SIZE)
Create the model and instantiate the optimizer
Within the context of Strategy.scope, create and compile the model using the Keras API:
with strategy.scope():
model = tf.keras.Sequential([
tf.keras.layers.Conv2D(32, 3, activation='relu', input_shape=(28, 28, 1)),
tf.keras.layers.MaxPooling2D(),
tf.keras.layers.Flatten(),
tf.keras.layers.Dense(64, activation='relu'),
tf.keras.layers.Dense(10)
])
model.compile(loss=tf.keras.losses.SparseCategoricalCrossentropy(from_logits=True),
optimizer=tf.keras.optimizers.Adam(learning_rate=0.001),
metrics=['accuracy'])
For this toy example with the MNIST dataset, you will be using the Adam optimizer's default learning rate of 0.001.
For larger datasets, the key benefit of distributed training is to learn more in each training step, because each step processes more training data in parallel, which allows for a larger learning rate (within the limits of the model and dataset).
Define the callbacks
Define the following Keras Callbacks:
tf.keras.callbacks.TensorBoard: writes a log for TensorBoard, which allows you to visualize the graphs.tf.keras.callbacks.ModelCheckpoint: saves the model at a certain frequency, such as after every epoch.tf.keras.callbacks.BackupAndRestore: provides the fault tolerance functionality by backing up the model and current epoch number. Learn more in the Fault tolerance section of the Multi-worker training with Keras tutorial.tf.keras.callbacks.LearningRateScheduler: schedules the learning rate to change after, for example, every epoch/batch.
For illustrative purposes, add a custom callback called PrintLR to display the learning rate in the notebook.
# Define the checkpoint directory to store the checkpoints.
checkpoint_dir = './training_checkpoints'
# Define the name of the checkpoint files.
checkpoint_prefix = os.path.join(checkpoint_dir, "ckpt_{epoch}")
# Define a function for decaying the learning rate.
# You can define any decay function you need.
def decay(epoch):
if epoch < 3:
return 1e-3
elif epoch >= 3 and epoch < 7:
return 1e-4
else:
return 1e-5
# Define a callback for printing the learning rate at the end of each epoch.
class PrintLR(tf.keras.callbacks.Callback):
def on_epoch_end(self, epoch, logs=None):
print('\nLearning rate for epoch {} is {}'.format( epoch + 1, model.optimizer.lr.numpy()))
# Put all the callbacks together.
callbacks = [
tf.keras.callbacks.TensorBoard(log_dir='./logs'),
tf.keras.callbacks.ModelCheckpoint(filepath=checkpoint_prefix,
save_weights_only=True),
tf.keras.callbacks.LearningRateScheduler(decay),
PrintLR()
]
Train and evaluate
Now, train the model in the usual way by calling Keras Model.fit on the model and passing in the dataset created at the beginning of the tutorial. This step is the same whether you are distributing the training or not.
EPOCHS = 12
model.fit(train_dataset, epochs=EPOCHS, callbacks=callbacks)
2023-08-19 02:30:14.247276: W tensorflow/core/grappler/optimizers/data/auto_shard.cc:553] The `assert_cardinality` transformation is currently not handled by the auto-shard rewrite and will be removed.
Epoch 1/12
INFO:tensorflow:Collective all_reduce tensors: 6 all_reduces, num_devices = 4, group_size = 4, implementation = CommunicationImplementation.NCCL, num_packs = 1
INFO:tensorflow:Collective all_reduce tensors: 6 all_reduces, num_devices = 4, group_size = 4, implementation = CommunicationImplementation.NCCL, num_packs = 1
INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).
INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).
INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).
INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).
INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).
INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).
INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).
INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).
INFO:tensorflow:Collective all_reduce tensors: 6 all_reduces, num_devices = 4, group_size = 4, implementation = CommunicationImplementation.NCCL, num_packs = 1
INFO:tensorflow:Collective all_reduce tensors: 6 all_reduces, num_devices = 4, group_size = 4, implementation = CommunicationImplementation.NCCL, num_packs = 1
INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).
INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).
INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).
INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).
INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).
INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).
INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).
INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).
1/235 [..............................] - ETA: 26:25 - loss: 2.3060 - accuracy: 0.0820WARNING:tensorflow:Callback method `on_train_batch_end` is slow compared to the batch time (batch time: 0.0074s vs `on_train_batch_end` time: 0.0131s). Check your callbacks.
WARNING:tensorflow:Callback method `on_train_batch_end` is slow compared to the batch time (batch time: 0.0074s vs `on_train_batch_end` time: 0.0131s). Check your callbacks.
235/235 [==============================] - ETA: 0s - loss: 0.3306 - accuracy: 0.9065INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).
INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).
INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).
INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).
Learning rate for epoch 1 is 0.0010000000474974513
235/235 [==============================] - 9s 9ms/step - loss: 0.3306 - accuracy: 0.9065 - lr: 0.0010
Epoch 2/12
232/235 [============================>.] - ETA: 0s - loss: 0.1008 - accuracy: 0.9711
Learning rate for epoch 2 is 0.0010000000474974513
235/235 [==============================] - 2s 8ms/step - loss: 0.1006 - accuracy: 0.9711 - lr: 0.0010
Epoch 3/12
232/235 [============================>.] - ETA: 0s - loss: 0.0683 - accuracy: 0.9804
Learning rate for epoch 3 is 0.0010000000474974513
235/235 [==============================] - 2s 8ms/step - loss: 0.0683 - accuracy: 0.9804 - lr: 0.0010
Epoch 4/12
232/235 [============================>.] - ETA: 0s - loss: 0.0485 - accuracy: 0.9868
Learning rate for epoch 4 is 9.999999747378752e-05
235/235 [==============================] - 2s 8ms/step - loss: 0.0483 - accuracy: 0.9868 - lr: 1.0000e-04
Epoch 5/12
233/235 [============================>.] - ETA: 0s - loss: 0.0452 - accuracy: 0.9879
Learning rate for epoch 5 is 9.999999747378752e-05
235/235 [==============================] - 2s 8ms/step - loss: 0.0452 - accuracy: 0.9879 - lr: 1.0000e-04
Epoch 6/12
230/235 [============================>.] - ETA: 0s - loss: 0.0438 - accuracy: 0.9880
Learning rate for epoch 6 is 9.999999747378752e-05
235/235 [==============================] - 2s 7ms/step - loss: 0.0436 - accuracy: 0.9880 - lr: 1.0000e-04
Epoch 7/12
230/235 [============================>.] - ETA: 0s - loss: 0.0423 - accuracy: 0.9882
Learning rate for epoch 7 is 9.999999747378752e-05
235/235 [==============================] - 2s 7ms/step - loss: 0.0421 - accuracy: 0.9883 - lr: 1.0000e-04
Epoch 8/12
232/235 [============================>.] - ETA: 0s - loss: 0.0399 - accuracy: 0.9891
Learning rate for epoch 8 is 9.999999747378752e-06
235/235 [==============================] - 2s 7ms/step - loss: 0.0400 - accuracy: 0.9891 - lr: 1.0000e-05
Epoch 9/12
231/235 [============================>.] - ETA: 0s - loss: 0.0398 - accuracy: 0.9893
Learning rate for epoch 9 is 9.999999747378752e-06
235/235 [==============================] - 2s 7ms/step - loss: 0.0397 - accuracy: 0.9894 - lr: 1.0000e-05
Epoch 10/12
232/235 [============================>.] - ETA: 0s - loss: 0.0397 - accuracy: 0.9894
Learning rate for epoch 10 is 9.999999747378752e-06
235/235 [==============================] - 2s 7ms/step - loss: 0.0396 - accuracy: 0.9894 - lr: 1.0000e-05
Epoch 11/12
229/235 [============================>.] - ETA: 0s - loss: 0.0394 - accuracy: 0.9894
Learning rate for epoch 11 is 9.999999747378752e-06
235/235 [==============================] - 2s 7ms/step - loss: 0.0394 - accuracy: 0.9894 - lr: 1.0000e-05
Epoch 12/12
235/235 [==============================] - ETA: 0s - loss: 0.0392 - accuracy: 0.9894
Learning rate for epoch 12 is 9.999999747378752e-06
235/235 [==============================] - 2s 7ms/step - loss: 0.0392 - accuracy: 0.9894 - lr: 1.0000e-05
<keras.src.callbacks.History at 0x7f622c14f310>
Check for saved checkpoints:
# Check the checkpoint directory.ls {checkpoint_dir}
checkpoint ckpt_4.data-00000-of-00001 ckpt_1.data-00000-of-00001 ckpt_4.index ckpt_1.index ckpt_5.data-00000-of-00001 ckpt_10.data-00000-of-00001 ckpt_5.index ckpt_10.index ckpt_6.data-00000-of-00001 ckpt_11.data-00000-of-00001 ckpt_6.index ckpt_11.index ckpt_7.data-00000-of-00001 ckpt_12.data-00000-of-00001 ckpt_7.index ckpt_12.index ckpt_8.data-00000-of-00001 ckpt_2.data-00000-of-00001 ckpt_8.index ckpt_2.index ckpt_9.data-00000-of-00001 ckpt_3.data-00000-of-00001 ckpt_9.index ckpt_3.index
To check how well the model performs, load the latest checkpoint and call Model.evaluate on the test data:
model.load_weights(tf.train.latest_checkpoint(checkpoint_dir))
eval_loss, eval_acc = model.evaluate(eval_dataset)
print('Eval loss: {}, Eval accuracy: {}'.format(eval_loss, eval_acc))
2023-08-19 02:30:47.341089: W tensorflow/core/grappler/optimizers/data/auto_shard.cc:553] The `assert_cardinality` transformation is currently not handled by the auto-shard rewrite and will be removed. 40/40 [==============================] - 2s 8ms/step - loss: 0.0482 - accuracy: 0.9837 Eval loss: 0.048164159059524536, Eval accuracy: 0.9836999773979187

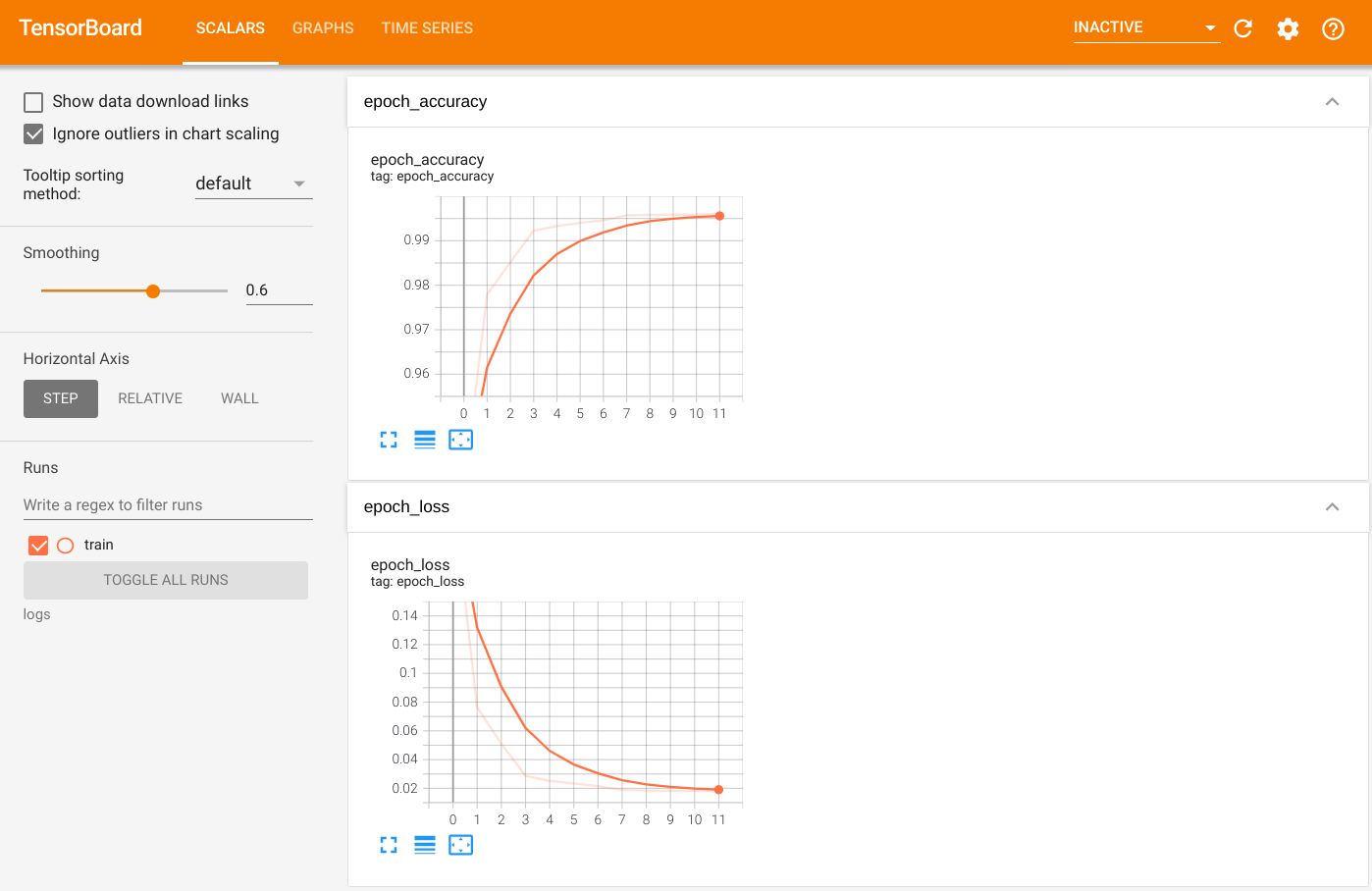

To visualize the output, launch TensorBoard and view the logs:
%tensorboard --logdir=logs
ls -sh ./logs
total 4.0K 4.0K train
Save the model
Save the model to a .keras zip archive using Model.save. After your model is saved, you can load it with or without the Strategy.scope.
path = 'my_model.keras'
model.save(path)
Now, load the model without Strategy.scope:
unreplicated_model = tf.keras.models.load_model(path)
unreplicated_model.compile(
loss=tf.keras.losses.SparseCategoricalCrossentropy(from_logits=True),
optimizer=tf.keras.optimizers.Adam(),
metrics=['accuracy'])
eval_loss, eval_acc = unreplicated_model.evaluate(eval_dataset)
print('Eval loss: {}, Eval Accuracy: {}'.format(eval_loss, eval_acc))
40/40 [==============================] - 0s 3ms/step - loss: 0.0482 - accuracy: 0.9837 Eval loss: 0.048164162784814835, Eval Accuracy: 0.9836999773979187
Load the model with Strategy.scope:
with strategy.scope():
replicated_model = tf.keras.models.load_model(path)
replicated_model.compile(loss=tf.keras.losses.SparseCategoricalCrossentropy(from_logits=True),
optimizer=tf.keras.optimizers.Adam(),
metrics=['accuracy'])
eval_loss, eval_acc = replicated_model.evaluate(eval_dataset)
print ('Eval loss: {}, Eval Accuracy: {}'.format(eval_loss, eval_acc))
2023-08-19 02:30:50.802543: W tensorflow/core/grappler/optimizers/data/auto_shard.cc:553] The `assert_cardinality` transformation is currently not handled by the auto-shard rewrite and will be removed. 40/40 [==============================] - 2s 5ms/step - loss: 0.0482 - accuracy: 0.9837 Eval loss: 0.048164159059524536, Eval Accuracy: 0.9836999773979187
Additional resources
More examples that use different distribution strategies with the Keras Model.fit API:
- The Solve GLUE tasks using BERT on TPU tutorial uses
tf.distribute.MirroredStrategyfor training on GPUs andtf.distribute.TPUStrategyon TPUs. - The Save and load a model using a distribution strategy tutorial demonstates how to use the SavedModel APIs with
tf.distribute.Strategy. - The official TensorFlow models can be configured to run multiple distribution strategies.
To learn more about TensorFlow distribution strategies:
- The Custom training with tf.distribute.Strategy tutorial shows how to use the
tf.distribute.MirroredStrategyfor single-worker training with a custom training loop. - The Multi-worker training with Keras tutorial shows how to use the
MultiWorkerMirroredStrategywithModel.fit. - The Custom training loop with Keras and MultiWorkerMirroredStrategy tutorial shows how to use the
MultiWorkerMirroredStrategywith Keras and a custom training loop. - The Distributed training in TensorFlow guide provides an overview of the available distribution strategies.
- The Better performance with tf.function guide provides information about other strategies and tools, such as the TensorFlow Profiler you can use to optimize the performance of your TensorFlow models.
