Entrenamiento distribuido con Keras

Ver en TensorFlow.org Ejecutar en Google Colab Ver fuente en GitHub Descargar cuaderno

Visión general

La API tf.distribute.Strategy proporciona una abstracción para distribuir su entrenamiento en múltiples unidades de procesamiento. El objetivo es permitir a los usuarios habilitar el entrenamiento distribuido utilizando modelos y código de entrenamiento existentes, con cambios mínimos.

Este tutorial utiliza tf.distribute.MirroredStrategy , que realiza una replicación en el gráfico con entrenamiento sincrónico en muchas GPU en una máquina. Esencialmente, copia todas las variables del modelo a cada procesador. Luego, usa all-reduce para combinar los degradados de todos los procesadores y aplica el valor combinado a todas las copias del modelo.

MirroredStrategy es una de las varias estrategias de distribución disponibles en el núcleo de TensorFlow. Puede leer sobre más estrategias en la guía de estrategias de distribución .

API de Keras

Este ejemplo usa la API tf.keras para construir el modelo y el ciclo de entrenamiento. Para bucles de entrenamiento personalizados, consulte el tutorial tf.distribute.Strategy con bucles de entrenamiento .

Importar dependencias

# Import TensorFlow and TensorFlow Datasets

import tensorflow_datasets as tfds
import tensorflow as tf

import os
print(tf.__version__)
2.3.0

Descarga el conjunto de datos

Descarga el conjunto de datos MNIST y cárgalo desde TensorFlow Datasets . Esto devuelve un conjunto de datos en formato tf.data .

Establecer with_info en True incluye los metadatos para todo el conjunto de datos, que se guarda aquí en info . Entre otras cosas, este objeto de metadatos incluye el número de ejemplos de prueba y entrenamiento.

datasets, info = tfds.load(name='mnist', with_info=True, as_supervised=True)

mnist_train, mnist_test = datasets['train'], datasets['test']
Downloading and preparing dataset mnist/3.0.1 (download: 11.06 MiB, generated: 21.00 MiB, total: 32.06 MiB) to /home/kbuilder/tensorflow_datasets/mnist/3.0.1...

Warning:absl:Dataset mnist is hosted on GCS. It will automatically be downloaded to your
local data directory. If you'd instead prefer to read directly from our public
GCS bucket (recommended if you're running on GCP), you can instead pass
`try_gcs=True` to `tfds.load` or set `data_dir=gs://tfds-data/datasets`.


Dataset mnist downloaded and prepared to /home/kbuilder/tensorflow_datasets/mnist/3.0.1. Subsequent calls will reuse this data.

Definir estrategia de distribución

Cree un objeto MirroredStrategy . Esto manejará la distribución y proporciona un administrador de contexto ( tf.distribute.MirroredStrategy.scope ) para construir su modelo dentro.

strategy = tf.distribute.MirroredStrategy()
INFO:tensorflow:Using MirroredStrategy with devices ('/job:localhost/replica:0/task:0/device:GPU:0',)

INFO:tensorflow:Using MirroredStrategy with devices ('/job:localhost/replica:0/task:0/device:GPU:0',)

print('Number of devices: {}'.format(strategy.num_replicas_in_sync))
Number of devices: 1

Configurar canalización de entrada

Al entrenar un modelo con varias GPU, puede utilizar la potencia de cálculo adicional de forma eficaz aumentando el tamaño del lote. En general, utilice el tamaño de lote más grande que se ajuste a la memoria de la GPU y ajuste la velocidad de aprendizaje en consecuencia.

# You can also do info.splits.total_num_examples to get the total
# number of examples in the dataset.

num_train_examples = info.splits['train'].num_examples
num_test_examples = info.splits['test'].num_examples

BUFFER_SIZE = 10000

BATCH_SIZE_PER_REPLICA = 64
BATCH_SIZE = BATCH_SIZE_PER_REPLICA * strategy.num_replicas_in_sync

Los valores de píxeles, que son 0-255, deben normalizarse al rango 0-1 . Defina esta escala en una función.

def scale(image, label):
  image = tf.cast(image, tf.float32)
  image /= 255

  return image, label

Aplicar esta función a los datos de entrenamiento y prueba, mezclar los datos de entrenamiento y agruparlos para el entrenamiento . Tenga en cuenta que también mantenemos un caché en memoria de los datos de entrenamiento para mejorar el rendimiento.

train_dataset = mnist_train.map(scale).cache().shuffle(BUFFER_SIZE).batch(BATCH_SIZE)
eval_dataset = mnist_test.map(scale).batch(BATCH_SIZE)

Crea el modelo

Cree y compile el modelo de Keras en el contexto de la strategy.scope .

with strategy.scope():
  model = tf.keras.Sequential([
      tf.keras.layers.Conv2D(32, 3, activation='relu', input_shape=(28, 28, 1)),
      tf.keras.layers.MaxPooling2D(),
      tf.keras.layers.Flatten(),
      tf.keras.layers.Dense(64, activation='relu'),
      tf.keras.layers.Dense(10)
  ])

  model.compile(loss=tf.keras.losses.SparseCategoricalCrossentropy(from_logits=True),
                optimizer=tf.keras.optimizers.Adam(),
                metrics=['accuracy'])

Definir las devoluciones de llamada

Las devoluciones de llamada utilizadas aquí son:

  • TensorBoard : esta devolución de llamada escribe un registro para TensorBoard que le permite visualizar los gráficos.
  • Punto de control del modelo : esta devolución de llamada guarda el modelo después de cada época.
  • Programador de tasa de aprendizaje : con esta devolución de llamada, puede programar la tasa de aprendizaje para que cambie después de cada época / lote.

Con fines ilustrativos, agregue una devolución de llamada de impresión para mostrar la tasa de aprendizaje en el cuaderno.

# Define the checkpoint directory to store the checkpoints

checkpoint_dir = './training_checkpoints'
# Name of the checkpoint files
checkpoint_prefix = os.path.join(checkpoint_dir, "ckpt_{epoch}")
# Function for decaying the learning rate.
# You can define any decay function you need.
def decay(epoch):
  if epoch < 3:
    return 1e-3
  elif epoch >= 3 and epoch < 7:
    return 1e-4
  else:
    return 1e-5
# Callback for printing the LR at the end of each epoch.
class PrintLR(tf.keras.callbacks.Callback):
  def on_epoch_end(self, epoch, logs=None):
    print('\nLearning rate for epoch {} is {}'.format(epoch + 1,
                                                      model.optimizer.lr.numpy()))
callbacks = [
    tf.keras.callbacks.TensorBoard(log_dir='./logs'),
    tf.keras.callbacks.ModelCheckpoint(filepath=checkpoint_prefix,
                                       save_weights_only=True),
    tf.keras.callbacks.LearningRateScheduler(decay),
    PrintLR()
]

Capacitar y evaluar

Ahora, entrene el modelo de la forma habitual, invocando el fit en el modelo y pasando el conjunto de datos creado al comienzo del tutorial. Este paso es el mismo ya sea que esté distribuyendo la capacitación o no.

model.fit(train_dataset, epochs=12, callbacks=callbacks)
Epoch 1/12
WARNING:tensorflow:From /tmpfs/src/tf_docs_env/lib/python3.6/site-packages/tensorflow/python/data/ops/multi_device_iterator_ops.py:601: get_next_as_optional (from tensorflow.python.data.ops.iterator_ops) is deprecated and will be removed in a future version.
Instructions for updating:
Use `tf.data.Iterator.get_next_as_optional()` instead.

Warning:tensorflow:From /tmpfs/src/tf_docs_env/lib/python3.6/site-packages/tensorflow/python/data/ops/multi_device_iterator_ops.py:601: get_next_as_optional (from tensorflow.python.data.ops.iterator_ops) is deprecated and will be removed in a future version.
Instructions for updating:
Use `tf.data.Iterator.get_next_as_optional()` instead.

INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).

INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).

INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).

INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).

INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).

INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).

INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).

INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).

INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).

INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).

INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).

INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).

INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).

INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).

INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).

INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).

  1/938 [..............................] - ETA: 0s - loss: 2.3083 - accuracy: 0.0156WARNING:tensorflow:From /tmpfs/src/tf_docs_env/lib/python3.6/site-packages/tensorflow/python/ops/summary_ops_v2.py:1277: stop (from tensorflow.python.eager.profiler) is deprecated and will be removed after 2020-07-01.
Instructions for updating:
use `tf.profiler.experimental.stop` instead.

Warning:tensorflow:From /tmpfs/src/tf_docs_env/lib/python3.6/site-packages/tensorflow/python/ops/summary_ops_v2.py:1277: stop (from tensorflow.python.eager.profiler) is deprecated and will be removed after 2020-07-01.
Instructions for updating:
use `tf.profiler.experimental.stop` instead.

Warning:tensorflow:Callbacks method `on_train_batch_end` is slow compared to the batch time (batch time: 0.0047s vs `on_train_batch_end` time: 0.0316s). Check your callbacks.

Warning:tensorflow:Callbacks method `on_train_batch_end` is slow compared to the batch time (batch time: 0.0047s vs `on_train_batch_end` time: 0.0316s). Check your callbacks.

932/938 [============================>.] - ETA: 0s - loss: 0.1947 - accuracy: 0.9441
Learning rate for epoch 1 is 0.0010000000474974513
938/938 [==============================] - 4s 4ms/step - loss: 0.1939 - accuracy: 0.9442
INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).

INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).

INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).

INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).

Epoch 2/12
935/938 [============================>.] - ETA: 0s - loss: 0.0636 - accuracy: 0.9811
Learning rate for epoch 2 is 0.0010000000474974513
938/938 [==============================] - 2s 3ms/step - loss: 0.0634 - accuracy: 0.9812
Epoch 3/12
936/938 [============================>.] - ETA: 0s - loss: 0.0438 - accuracy: 0.9864
Learning rate for epoch 3 is 0.0010000000474974513
938/938 [==============================] - 2s 3ms/step - loss: 0.0439 - accuracy: 0.9864
Epoch 4/12
937/938 [============================>.] - ETA: 0s - loss: 0.0234 - accuracy: 0.9936
Learning rate for epoch 4 is 9.999999747378752e-05
938/938 [==============================] - 2s 3ms/step - loss: 0.0234 - accuracy: 0.9936
Epoch 5/12
932/938 [============================>.] - ETA: 0s - loss: 0.0204 - accuracy: 0.9948
Learning rate for epoch 5 is 9.999999747378752e-05
938/938 [==============================] - 3s 3ms/step - loss: 0.0204 - accuracy: 0.9948
Epoch 6/12
919/938 [============================>.] - ETA: 0s - loss: 0.0188 - accuracy: 0.9951
Learning rate for epoch 6 is 9.999999747378752e-05
938/938 [==============================] - 2s 3ms/step - loss: 0.0187 - accuracy: 0.9951
Epoch 7/12
921/938 [============================>.] - ETA: 0s - loss: 0.0172 - accuracy: 0.9960
Learning rate for epoch 7 is 9.999999747378752e-05
938/938 [==============================] - 2s 3ms/step - loss: 0.0171 - accuracy: 0.9960
Epoch 8/12
931/938 [============================>.] - ETA: 0s - loss: 0.0147 - accuracy: 0.9970
Learning rate for epoch 8 is 9.999999747378752e-06
938/938 [==============================] - 2s 3ms/step - loss: 0.0147 - accuracy: 0.9970
Epoch 9/12
938/938 [==============================] - ETA: 0s - loss: 0.0144 - accuracy: 0.9970
Learning rate for epoch 9 is 9.999999747378752e-06
938/938 [==============================] - 2s 3ms/step - loss: 0.0144 - accuracy: 0.9970
Epoch 10/12
924/938 [============================>.] - ETA: 0s - loss: 0.0143 - accuracy: 0.9971
Learning rate for epoch 10 is 9.999999747378752e-06
938/938 [==============================] - 2s 3ms/step - loss: 0.0142 - accuracy: 0.9971
Epoch 11/12
937/938 [============================>.] - ETA: 0s - loss: 0.0140 - accuracy: 0.9972
Learning rate for epoch 11 is 9.999999747378752e-06
938/938 [==============================] - 2s 3ms/step - loss: 0.0140 - accuracy: 0.9972
Epoch 12/12
923/938 [============================>.] - ETA: 0s - loss: 0.0139 - accuracy: 0.9973
Learning rate for epoch 12 is 9.999999747378752e-06
938/938 [==============================] - 2s 3ms/step - loss: 0.0139 - accuracy: 0.9973

<tensorflow.python.keras.callbacks.History at 0x7f50a0d94780>

Como puede ver a continuación, los puntos de control se están guardando.

# check the checkpoint directory
!ls {checkpoint_dir}
checkpoint           ckpt_4.data-00000-of-00001
ckpt_1.data-00000-of-00001   ckpt_4.index
ckpt_1.index             ckpt_5.data-00000-of-00001
ckpt_10.data-00000-of-00001  ckpt_5.index
ckpt_10.index            ckpt_6.data-00000-of-00001
ckpt_11.data-00000-of-00001  ckpt_6.index
ckpt_11.index            ckpt_7.data-00000-of-00001
ckpt_12.data-00000-of-00001  ckpt_7.index
ckpt_12.index            ckpt_8.data-00000-of-00001
ckpt_2.data-00000-of-00001   ckpt_8.index
ckpt_2.index             ckpt_9.data-00000-of-00001
ckpt_3.data-00000-of-00001   ckpt_9.index
ckpt_3.index

Para ver cómo funciona el modelo, cargue el último punto de control y llame a evaluate en los datos de prueba.

Llame a evaluate como antes usando conjuntos de datos apropiados.

model.load_weights(tf.train.latest_checkpoint(checkpoint_dir))

eval_loss, eval_acc = model.evaluate(eval_dataset)

print('Eval loss: {}, Eval Accuracy: {}'.format(eval_loss, eval_acc))
157/157 [==============================] - 1s 6ms/step - loss: 0.0393 - accuracy: 0.9864
Eval loss: 0.03928377106785774, Eval Accuracy: 0.9864000082015991

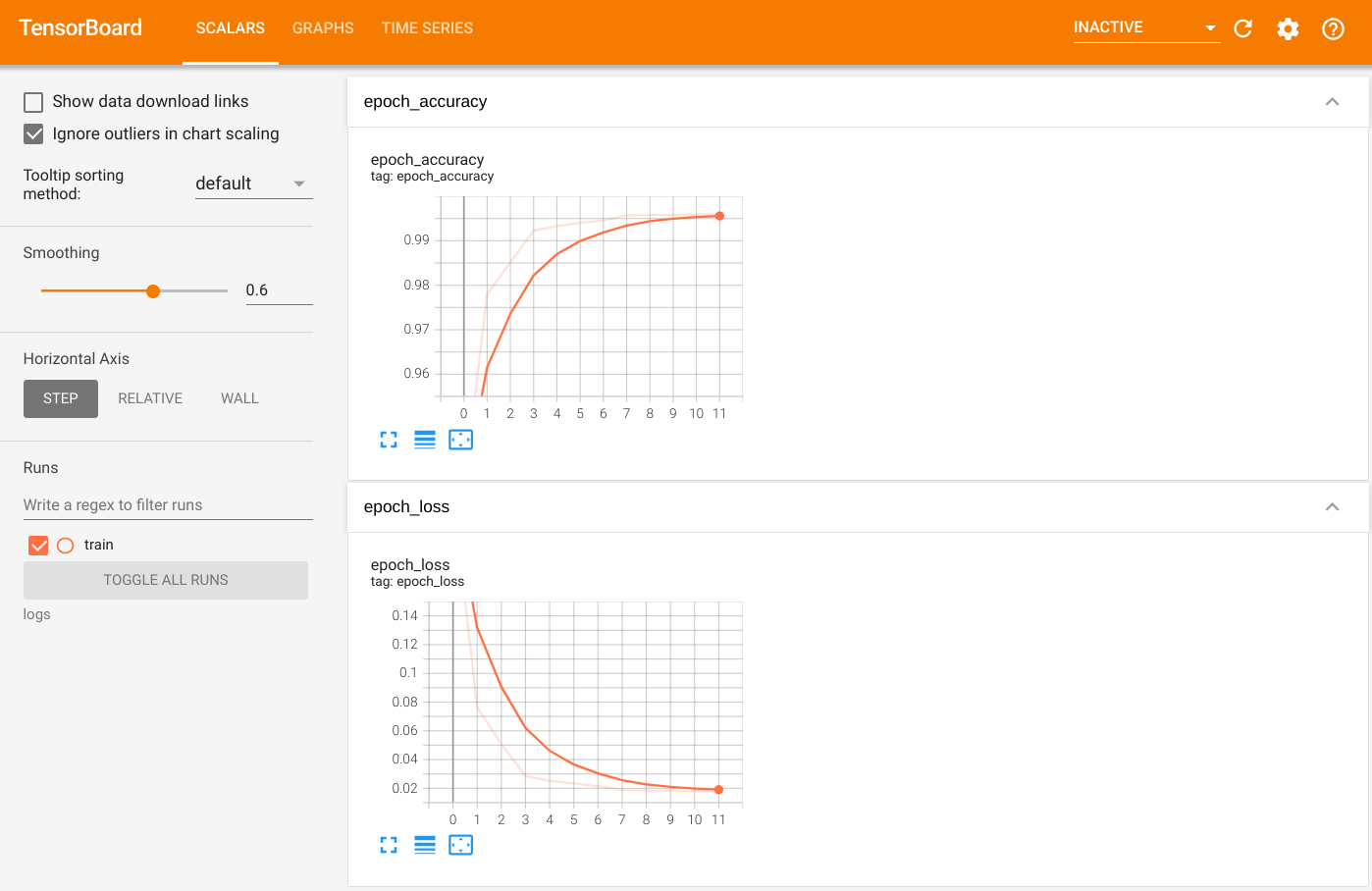

Para ver el resultado, puede descargar y ver los registros de TensorBoard en la terminal.

$ tensorboard --logdir=path/to/log-directory
ls -sh ./logs
total 4.0K
4.0K train

Exportar a modelo guardado

Exporte el gráfico y las variables al formato de modelo guardado independiente de la plataforma. Después de guardar su modelo, puede cargarlo con o sin el alcance.

path = 'saved_model/'
model.save(path, save_format='tf')
WARNING:tensorflow:From /tmpfs/src/tf_docs_env/lib/python3.6/site-packages/tensorflow/python/training/tracking/tracking.py:111: Model.state_updates (from tensorflow.python.keras.engine.training) is deprecated and will be removed in a future version.
Instructions for updating:
This property should not be used in TensorFlow 2.0, as updates are applied automatically.

Warning:tensorflow:From /tmpfs/src/tf_docs_env/lib/python3.6/site-packages/tensorflow/python/training/tracking/tracking.py:111: Model.state_updates (from tensorflow.python.keras.engine.training) is deprecated and will be removed in a future version.
Instructions for updating:
This property should not be used in TensorFlow 2.0, as updates are applied automatically.

Warning:tensorflow:From /tmpfs/src/tf_docs_env/lib/python3.6/site-packages/tensorflow/python/training/tracking/tracking.py:111: Layer.updates (from tensorflow.python.keras.engine.base_layer) is deprecated and will be removed in a future version.
Instructions for updating:
This property should not be used in TensorFlow 2.0, as updates are applied automatically.

Warning:tensorflow:From /tmpfs/src/tf_docs_env/lib/python3.6/site-packages/tensorflow/python/training/tracking/tracking.py:111: Layer.updates (from tensorflow.python.keras.engine.base_layer) is deprecated and will be removed in a future version.
Instructions for updating:
This property should not be used in TensorFlow 2.0, as updates are applied automatically.

INFO:tensorflow:Assets written to: saved_model/assets

INFO:tensorflow:Assets written to: saved_model/assets

Cargue el modelo sin strategy.scope .

unreplicated_model = tf.keras.models.load_model(path)

unreplicated_model.compile(
    loss=tf.keras.losses.SparseCategoricalCrossentropy(from_logits=True),
    optimizer=tf.keras.optimizers.Adam(),
    metrics=['accuracy'])

eval_loss, eval_acc = unreplicated_model.evaluate(eval_dataset)

print('Eval loss: {}, Eval Accuracy: {}'.format(eval_loss, eval_acc))
157/157 [==============================] - 1s 3ms/step - loss: 0.0393 - accuracy: 0.9864
Eval loss: 0.03928377106785774, Eval Accuracy: 0.9864000082015991

Cargue el modelo con strategy.scope .

with strategy.scope():
  replicated_model = tf.keras.models.load_model(path)
  replicated_model.compile(loss=tf.keras.losses.SparseCategoricalCrossentropy(from_logits=True),
                           optimizer=tf.keras.optimizers.Adam(),
                           metrics=['accuracy'])

  eval_loss, eval_acc = replicated_model.evaluate(eval_dataset)
  print ('Eval loss: {}, Eval Accuracy: {}'.format(eval_loss, eval_acc))
157/157 [==============================] - 1s 4ms/step - loss: 0.0393 - accuracy: 0.9864
Eval loss: 0.03928377106785774, Eval Accuracy: 0.9864000082015991

Ejemplos y tutoriales

Aquí hay algunos ejemplos para usar la estrategia de distribución con keras fit / compile:

  1. Ejemplo de transformador entrenado con tf.distribute.MirroredStrategy
  2. Ejemplo de NCF entrenado con tf.distribute.MirroredStrategy .

Más ejemplos enumerados en la guía de estrategia de distribución

Próximos pasos
