Formazione distribuita con Keras

Visualizza su TensorFlow.org Esegui in Google Colab Visualizza la fonte su GitHub Scarica taccuino

Panoramica

Il tf.distribute.Strategy API fornisce un'astrazione per distribuire la vostra formazione su più unità di elaborazione. Consente di eseguire l'addestramento distribuito utilizzando i modelli e il codice di addestramento esistenti con modifiche minime.

Questo tutorial mostra come utilizzare il tf.distribute.MirroredStrategy per eseguire la replica in-grafico con la formazione sincrona su molti GPU su una macchina. La strategia essenzialmente copia tutte le variabili del modello su ciascun processore. Poi, utilizza tutto riducono combinare i gradienti da tutti i processori, e applica il valore combinato di tutte le copie del modello.

Si utilizzerà i tf.keras API per costruire il modello e Model.fit per la formazione di esso. (Per conoscere la formazione distribuita con un ciclo di formazione personalizzata e la MirroredStrategy , check out questo tutorial .)

MirroredStrategy allena il tuo modello su più GPU su una singola macchina. Per la formazione sincrona su molti GPU su più lavoratori, utilizzare il tf.distribute.MultiWorkerMirroredStrategy con la Keras Model.fit o un ciclo di formazione personalizzato . Per le altre opzioni, fare riferimento alla guida di formazione distribuita .

Per ulteriori informazioni su varie altre strategie, v'è la formazione distribuita con tensorflow guida.

Impostare

import tensorflow_datasets as tfds
import tensorflow as tf

import os

# Load the TensorBoard notebook extension.
%load_ext tensorboard
2021-08-04 01:24:55.165631: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcudart.so.11.0
print(tf.__version__)
2.5.0

Scarica il set di dati

Caricare il set di dati da MNIST tensorflow Datasets . Ciò restituisce un set di dati in tf.data formato.

Impostazione del with_info argomento True include i metadati per l'intero set di dati, che viene salvato qui per info . Tra le altre cose, questo oggetto di metadati include il numero di esempi di treni e test.

datasets, info = tfds.load(name='mnist', with_info=True, as_supervised=True)

mnist_train, mnist_test = datasets['train'], datasets['test']
2021-08-04 01:25:00.048530: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcuda.so.1
2021-08-04 01:25:00.691099: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:937] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2021-08-04 01:25:00.691993: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1733] Found device 0 with properties:
pciBusID: 0000:00:05.0 name: Tesla V100-SXM2-16GB computeCapability: 7.0
coreClock: 1.53GHz coreCount: 80 deviceMemorySize: 15.78GiB deviceMemoryBandwidth: 836.37GiB/s
2021-08-04 01:25:00.692033: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcudart.so.11.0
2021-08-04 01:25:00.695439: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcublas.so.11
2021-08-04 01:25:00.695536: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcublasLt.so.11
2021-08-04 01:25:00.696685: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcufft.so.10
2021-08-04 01:25:00.697009: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcurand.so.10
2021-08-04 01:25:00.698067: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcusolver.so.11
2021-08-04 01:25:00.698998: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcusparse.so.11
2021-08-04 01:25:00.699164: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcudnn.so.8
2021-08-04 01:25:00.699264: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:937] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2021-08-04 01:25:00.700264: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:937] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2021-08-04 01:25:00.701157: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1871] Adding visible gpu devices: 0
2021-08-04 01:25:00.701928: I tensorflow/core/platform/cpu_feature_guard.cc:142] This TensorFlow binary is optimized with oneAPI Deep Neural Network Library (oneDNN) to use the following CPU instructions in performance-critical operations:  AVX2 AVX512F FMA
To enable them in other operations, rebuild TensorFlow with the appropriate compiler flags.
2021-08-04 01:25:00.702642: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:937] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2021-08-04 01:25:00.703535: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1733] Found device 0 with properties:
pciBusID: 0000:00:05.0 name: Tesla V100-SXM2-16GB computeCapability: 7.0
coreClock: 1.53GHz coreCount: 80 deviceMemorySize: 15.78GiB deviceMemoryBandwidth: 836.37GiB/s
2021-08-04 01:25:00.703621: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:937] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2021-08-04 01:25:00.704507: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:937] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2021-08-04 01:25:00.705349: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1871] Adding visible gpu devices: 0
2021-08-04 01:25:00.705388: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcudart.so.11.0
2021-08-04 01:25:01.356483: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1258] Device interconnect StreamExecutor with strength 1 edge matrix:
2021-08-04 01:25:01.356521: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1264]      0
2021-08-04 01:25:01.356530: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1277] 0:   N
2021-08-04 01:25:01.356777: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:937] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2021-08-04 01:25:01.357792: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:937] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2021-08-04 01:25:01.358756: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:937] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2021-08-04 01:25:01.359641: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1418] Created TensorFlow device (/job:localhost/replica:0/task:0/device:GPU:0 with 14646 MB memory) -> physical GPU (device: 0, name: Tesla V100-SXM2-16GB, pci bus id: 0000:00:05.0, compute capability: 7.0)

Definire la strategia di distribuzione

Creare un MirroredStrategy oggetto. Questo si occuperà della distribuzione e fornire un gestore di contesto ( MirroredStrategy.scope ) per costruire il vostro all'interno del modello.

strategy = tf.distribute.MirroredStrategy()
WARNING:tensorflow:Collective ops is not configured at program startup. Some performance features may not be enabled.
WARNING:tensorflow:Collective ops is not configured at program startup. Some performance features may not be enabled.
INFO:tensorflow:Using MirroredStrategy with devices ('/job:localhost/replica:0/task:0/device:GPU:0',)
INFO:tensorflow:Using MirroredStrategy with devices ('/job:localhost/replica:0/task:0/device:GPU:0',)
print('Number of devices: {}'.format(strategy.num_replicas_in_sync))
Number of devices: 1

Configurare la pipeline di input

Quando si addestra un modello con più GPU, è possibile utilizzare la potenza di calcolo extra in modo efficace aumentando le dimensioni del batch. In generale, utilizzare la dimensione batch più grande che si adatta alla memoria della GPU e regolare di conseguenza la velocità di apprendimento.

# You can also do info.splits.total_num_examples to get the total
# number of examples in the dataset.

num_train_examples = info.splits['train'].num_examples
num_test_examples = info.splits['test'].num_examples

BUFFER_SIZE = 10000

BATCH_SIZE_PER_REPLICA = 64
BATCH_SIZE = BATCH_SIZE_PER_REPLICA * strategy.num_replicas_in_sync

Definire una funzione che normalizza i valori dei pixel dell'immagine da [0, 255] intervallo al [0, 1] gamma ( scalatura caratteristica ):

def scale(image, label):
  image = tf.cast(image, tf.float32)
  image /= 255

  return image, label

Applicare questa scale funzione per i dati di allenamento e di test, e quindi utilizzare i tf.data.Dataset API per mischiare i dati di formazione ( Dataset.shuffle ), e lotto esso ( Dataset.batch ). Nota che si sta anche tenendo una cache in memoria dei dati di allenamento per migliorare le prestazioni ( Dataset.cache ).

train_dataset = mnist_train.map(scale).cache().shuffle(BUFFER_SIZE).batch(BATCH_SIZE)
eval_dataset = mnist_test.map(scale).batch(BATCH_SIZE)

Crea il modello

Creare e compilare il modello Keras nel contesto di Strategy.scope :

with strategy.scope():
  model = tf.keras.Sequential([
      tf.keras.layers.Conv2D(32, 3, activation='relu', input_shape=(28, 28, 1)),
      tf.keras.layers.MaxPooling2D(),
      tf.keras.layers.Flatten(),
      tf.keras.layers.Dense(64, activation='relu'),
      tf.keras.layers.Dense(10)
  ])

  model.compile(loss=tf.keras.losses.SparseCategoricalCrossentropy(from_logits=True),
                optimizer=tf.keras.optimizers.Adam(),
                metrics=['accuracy'])
INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).
INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).
INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).
INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).
INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).
INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).
INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).
INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).

Definisci i callback

Definire le seguenti tf.keras.callbacks :

Per scopi illustrativi, aggiungere un callback personalizzata denominata PrintLR per visualizzare il tasso di apprendimento nel notebook.

# Define the checkpoint directory to store the checkpoints.
checkpoint_dir = './training_checkpoints'
# Define the name of the checkpoint files.
checkpoint_prefix = os.path.join(checkpoint_dir, "ckpt_{epoch}")
# Define a function for decaying the learning rate.
# You can define any decay function you need.
def decay(epoch):
  if epoch < 3:
    return 1e-3
  elif epoch >= 3 and epoch < 7:
    return 1e-4
  else:
    return 1e-5
# Define a callback for printing the learning rate at the end of each epoch.
class PrintLR(tf.keras.callbacks.Callback):
  def on_epoch_end(self, epoch, logs=None):
    print('\nLearning rate for epoch {} is {}'.format(epoch + 1,
                                                      model.optimizer.lr.numpy()))
# Put all the callbacks together.
callbacks = [
    tf.keras.callbacks.TensorBoard(log_dir='./logs'),
    tf.keras.callbacks.ModelCheckpoint(filepath=checkpoint_prefix,
                                       save_weights_only=True),
    tf.keras.callbacks.LearningRateScheduler(decay),
    PrintLR()
]
2021-08-04 01:25:02.054144: I tensorflow/core/profiler/lib/profiler_session.cc:126] Profiler session initializing.
2021-08-04 01:25:02.054179: I tensorflow/core/profiler/lib/profiler_session.cc:141] Profiler session started.
2021-08-04 01:25:02.054232: I tensorflow/core/profiler/internal/gpu/cupti_tracer.cc:1611] Profiler found 1 GPUs
2021-08-04 01:25:02.098001: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcupti.so.11.2
2021-08-04 01:25:02.288095: I tensorflow/core/profiler/lib/profiler_session.cc:159] Profiler session tear down.
2021-08-04 01:25:02.292220: I tensorflow/core/profiler/internal/gpu/cupti_tracer.cc:1743] CUPTI activity buffer flushed

Formare e valutare

Ora, il training del modello nel modo consueto chiamando Model.fit sul modello e passando nel set di dati creata all'inizio del tutorial. Questo passaggio è lo stesso indipendentemente dal fatto che tu stia distribuendo la formazione o meno.

EPOCHS = 12

model.fit(train_dataset, epochs=EPOCHS, callbacks=callbacks)
2021-08-04 01:25:02.342811: W tensorflow/core/grappler/optimizers/data/auto_shard.cc:461] The `assert_cardinality` transformation is currently not handled by the auto-shard rewrite and will be removed.
2021-08-04 01:25:02.389307: I tensorflow/compiler/mlir/mlir_graph_optimization_pass.cc:176] None of the MLIR Optimization Passes are enabled (registered 2)
2021-08-04 01:25:02.389734: I tensorflow/core/platform/profile_utils/cpu_utils.cc:114] CPU Frequency: 2000179999 Hz
Epoch 1/12
INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).
INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).
INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).
INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).
INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).
INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).
INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).
INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).
INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).
INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).
INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).
INFO:tensorflow:Reduce to /job:localhost/replica:0/task:0/device:CPU:0 then broadcast to ('/job:localhost/replica:0/task:0/device:CPU:0',).
2021-08-04 01:25:05.851687: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcudnn.so.8
2021-08-04 01:25:07.965516: I tensorflow/stream_executor/cuda/cuda_dnn.cc:359] Loaded cuDNN version 8100
2021-08-04 01:25:13.166255: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcublas.so.11
2021-08-04 01:25:13.566160: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcublasLt.so.11
1/938 [..............................] - ETA: 3:09:47 - loss: 2.2850 - accuracy: 0.1094
2021-08-04 01:25:14.615346: I tensorflow/core/profiler/lib/profiler_session.cc:126] Profiler session initializing.
2021-08-04 01:25:14.615388: I tensorflow/core/profiler/lib/profiler_session.cc:141] Profiler session started.
3/938 [..............................] - ETA: 4:21 - loss: 2.1694 - accuracy: 0.3333WARNING:tensorflow:Callback method `on_train_batch_begin` is slow compared to the batch time (batch time: 0.0045s vs `on_train_batch_begin` time: 0.0762s). Check your callbacks.
2021-08-04 01:25:15.082713: I tensorflow/core/profiler/lib/profiler_session.cc:66] Profiler session collecting data.
2021-08-04 01:25:15.085886: I tensorflow/core/profiler/internal/gpu/cupti_tracer.cc:1743] CUPTI activity buffer flushed
2021-08-04 01:25:15.122453: I tensorflow/core/profiler/internal/gpu/cupti_collector.cc:673]  GpuTracer has collected 96 callback api events and 93 activity events.
2021-08-04 01:25:15.126946: I tensorflow/core/profiler/lib/profiler_session.cc:159] Profiler session tear down.
2021-08-04 01:25:15.138108: I tensorflow/core/profiler/rpc/client/save_profile.cc:137] Creating directory: ./logs/train/plugins/profile/2021_08_04_01_25_15
2021-08-04 01:25:15.146767: I tensorflow/core/profiler/rpc/client/save_profile.cc:143] Dumped gzipped tool data for trace.json.gz to ./logs/train/plugins/profile/2021_08_04_01_25_15/kokoro-gcp-ubuntu-prod-1251741625.trace.json.gz
2021-08-04 01:25:15.154434: I tensorflow/core/profiler/rpc/client/save_profile.cc:137] Creating directory: ./logs/train/plugins/profile/2021_08_04_01_25_15
2021-08-04 01:25:15.155169: I tensorflow/core/profiler/rpc/client/save_profile.cc:143] Dumped gzipped tool data for memory_profile.json.gz to ./logs/train/plugins/profile/2021_08_04_01_25_15/kokoro-gcp-ubuntu-prod-1251741625.memory_profile.json.gz
2021-08-04 01:25:15.155597: I tensorflow/core/profiler/rpc/client/capture_profile.cc:251] Creating directory: ./logs/train/plugins/profile/2021_08_04_01_25_15Dumped tool data for xplane.pb to ./logs/train/plugins/profile/2021_08_04_01_25_15/kokoro-gcp-ubuntu-prod-1251741625.xplane.pb
Dumped tool data for overview_page.pb to ./logs/train/plugins/profile/2021_08_04_01_25_15/kokoro-gcp-ubuntu-prod-1251741625.overview_page.pb
Dumped tool data for input_pipeline.pb to ./logs/train/plugins/profile/2021_08_04_01_25_15/kokoro-gcp-ubuntu-prod-1251741625.input_pipeline.pb
Dumped tool data for tensorflow_stats.pb to ./logs/train/plugins/profile/2021_08_04_01_25_15/kokoro-gcp-ubuntu-prod-1251741625.tensorflow_stats.pb
Dumped tool data for kernel_stats.pb to ./logs/train/plugins/profile/2021_08_04_01_25_15/kokoro-gcp-ubuntu-prod-1251741625.kernel_stats.pb

WARNING:tensorflow:Callback method `on_train_batch_begin` is slow compared to the batch time (batch time: 0.0045s vs `on_train_batch_begin` time: 0.0762s). Check your callbacks.
WARNING:tensorflow:Callback method `on_train_batch_end` is slow compared to the batch time (batch time: 0.0045s vs `on_train_batch_end` time: 0.0155s). Check your callbacks.
WARNING:tensorflow:Callback method `on_train_batch_end` is slow compared to the batch time (batch time: 0.0045s vs `on_train_batch_end` time: 0.0155s). Check your callbacks.
938/938 [==============================] - 16s 4ms/step - loss: 0.1997 - accuracy: 0.9421

Learning rate for epoch 1 is 0.0010000000474974513
Epoch 2/12
938/938 [==============================] - 3s 3ms/step - loss: 0.0656 - accuracy: 0.9805

Learning rate for epoch 2 is 0.0010000000474974513
Epoch 3/12
938/938 [==============================] - 3s 3ms/step - loss: 0.0461 - accuracy: 0.9857

Learning rate for epoch 3 is 0.0010000000474974513
Epoch 4/12
938/938 [==============================] - 3s 3ms/step - loss: 0.0244 - accuracy: 0.9935

Learning rate for epoch 4 is 9.999999747378752e-05
Epoch 5/12
938/938 [==============================] - 3s 3ms/step - loss: 0.0217 - accuracy: 0.9943

Learning rate for epoch 5 is 9.999999747378752e-05
Epoch 6/12
938/938 [==============================] - 3s 3ms/step - loss: 0.0199 - accuracy: 0.9948

Learning rate for epoch 6 is 9.999999747378752e-05
Epoch 7/12
938/938 [==============================] - 3s 3ms/step - loss: 0.0182 - accuracy: 0.9955

Learning rate for epoch 7 is 9.999999747378752e-05
Epoch 8/12
938/938 [==============================] - 3s 3ms/step - loss: 0.0156 - accuracy: 0.9963

Learning rate for epoch 8 is 9.999999747378752e-06
Epoch 9/12
938/938 [==============================] - 3s 3ms/step - loss: 0.0154 - accuracy: 0.9964

Learning rate for epoch 9 is 9.999999747378752e-06
Epoch 10/12
938/938 [==============================] - 3s 3ms/step - loss: 0.0152 - accuracy: 0.9965

Learning rate for epoch 10 is 9.999999747378752e-06
Epoch 11/12
938/938 [==============================] - 3s 3ms/step - loss: 0.0150 - accuracy: 0.9966

Learning rate for epoch 11 is 9.999999747378752e-06
Epoch 12/12
938/938 [==============================] - 3s 3ms/step - loss: 0.0149 - accuracy: 0.9967

Learning rate for epoch 12 is 9.999999747378752e-06
<tensorflow.python.keras.callbacks.History at 0x7f4e5c176dd0>

Controlla i checkpoint salvati:

# Check the checkpoint directory.
ls {checkpoint_dir}
checkpoint           ckpt_4.data-00000-of-00001
ckpt_1.data-00000-of-00001   ckpt_4.index
ckpt_1.index             ckpt_5.data-00000-of-00001
ckpt_10.data-00000-of-00001  ckpt_5.index
ckpt_10.index            ckpt_6.data-00000-of-00001
ckpt_11.data-00000-of-00001  ckpt_6.index
ckpt_11.index            ckpt_7.data-00000-of-00001
ckpt_12.data-00000-of-00001  ckpt_7.index
ckpt_12.index            ckpt_8.data-00000-of-00001
ckpt_2.data-00000-of-00001   ckpt_8.index
ckpt_2.index             ckpt_9.data-00000-of-00001
ckpt_3.data-00000-of-00001   ckpt_9.index
ckpt_3.index

Per controllare quanto bene le prestazioni del modello, caricare l'ultimo punto di controllo e chiamare Model.evaluate sui dati di test:

model.load_weights(tf.train.latest_checkpoint(checkpoint_dir))

eval_loss, eval_acc = model.evaluate(eval_dataset)

print('Eval loss: {}, Eval accuracy: {}'.format(eval_loss, eval_acc))
2021-08-04 01:25:49.277864: W tensorflow/core/grappler/optimizers/data/auto_shard.cc:461] The `assert_cardinality` transformation is currently not handled by the auto-shard rewrite and will be removed.
157/157 [==============================] - 2s 4ms/step - loss: 0.0371 - accuracy: 0.9875
Eval loss: 0.03712465986609459, Eval accuracy: 0.987500011920929

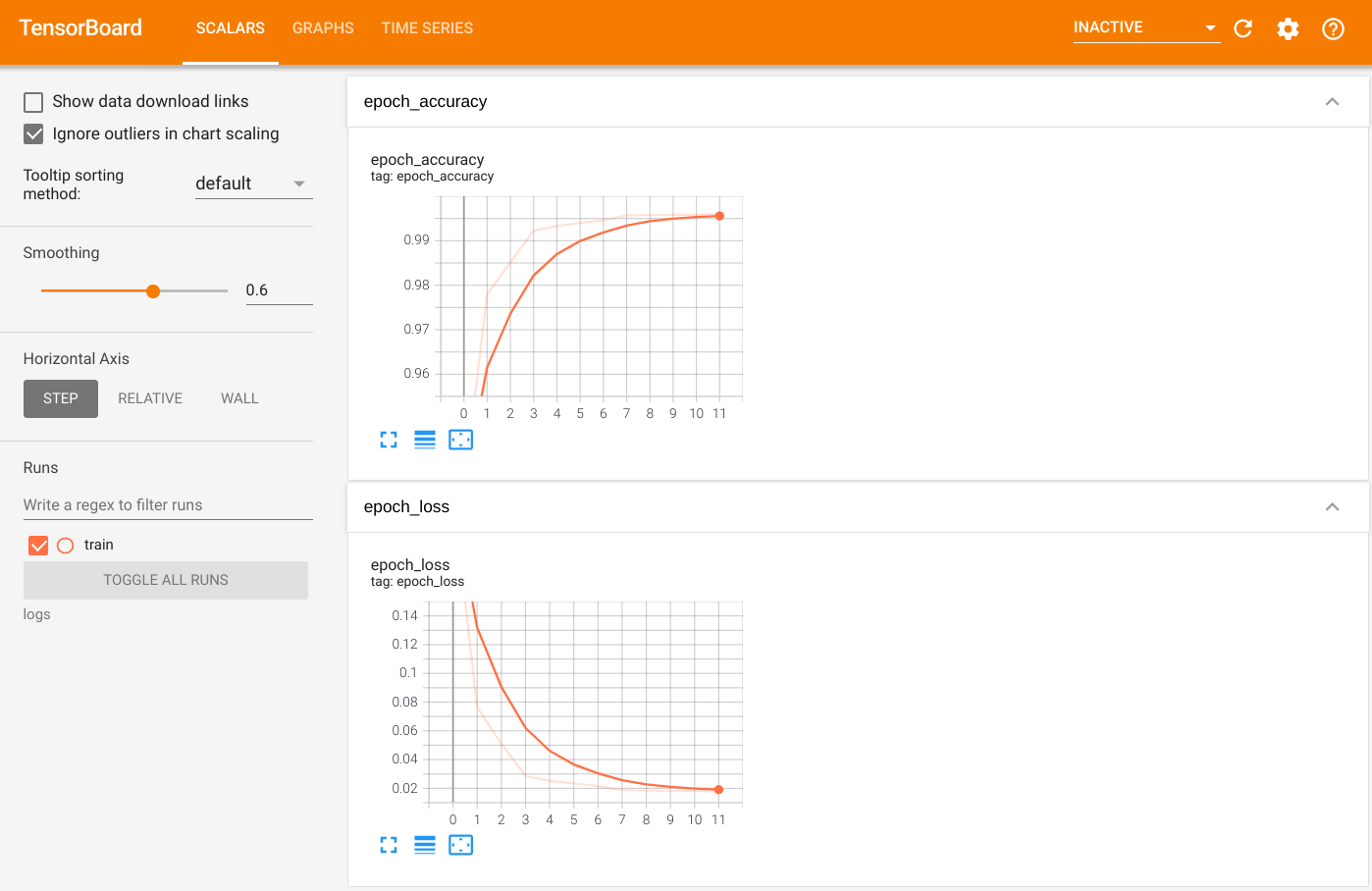

Per visualizzare l'output, avvia TensorBoard e visualizza i log:

%tensorboard --logdir=logs

ls -sh ./logs
total 4.0K
4.0K train

Esporta in modello salvato

Esportare il grafico e le variabili nel formato SavedModel indipendente dalla piattaforma che utilizzano Model.save . Dopo che il modello è salvata, è possibile caricare con o senza l' Strategy.scope .

path = 'saved_model/'
model.save(path, save_format='tf')
2021-08-04 01:25:51.983973: W tensorflow/python/util/util.cc:348] Sets are not currently considered sequences, but this may change in the future, so consider avoiding using them.
INFO:tensorflow:Assets written to: saved_model/assets
INFO:tensorflow:Assets written to: saved_model/assets

Ora, caricare il modello senza Strategy.scope :

unreplicated_model = tf.keras.models.load_model(path)

unreplicated_model.compile(
    loss=tf.keras.losses.SparseCategoricalCrossentropy(from_logits=True),
    optimizer=tf.keras.optimizers.Adam(),
    metrics=['accuracy'])

eval_loss, eval_acc = unreplicated_model.evaluate(eval_dataset)

print('Eval loss: {}, Eval Accuracy: {}'.format(eval_loss, eval_acc))
157/157 [==============================] - 0s 2ms/step - loss: 0.0371 - accuracy: 0.9875
Eval loss: 0.03712465986609459, Eval Accuracy: 0.987500011920929

Caricare il modello con Strategy.scope :

with strategy.scope():
  replicated_model = tf.keras.models.load_model(path)
  replicated_model.compile(loss=tf.keras.losses.SparseCategoricalCrossentropy(from_logits=True),
                           optimizer=tf.keras.optimizers.Adam(),
                           metrics=['accuracy'])

  eval_loss, eval_acc = replicated_model.evaluate(eval_dataset)
  print ('Eval loss: {}, Eval Accuracy: {}'.format(eval_loss, eval_acc))
2021-08-04 01:25:53.544239: W tensorflow/core/grappler/optimizers/data/auto_shard.cc:461] The `assert_cardinality` transformation is currently not handled by the auto-shard rewrite and will be removed.
157/157 [==============================] - 2s 2ms/step - loss: 0.0371 - accuracy: 0.9875
Eval loss: 0.03712465986609459, Eval Accuracy: 0.987500011920929

Risorse addizionali

Altri esempi che utilizzano diverse strategie di distribuzione con la Keras Model.fit API:

  1. I compiti COLLA Solve utilizzando BERT in TPU tutorial utilizza tf.distribute.MirroredStrategy per la formazione su GPU e tf.distribute.TPUStrategy -on TPU.
  2. Il salvare e caricare un modello usando una strategia di distribuzione demonstates tutorial su come utilizzare le API SavedModel con tf.distribute.Strategy .
  3. I modelli ufficiali tensorflow può essere configurato per eseguire più strategie di distribuzione.

Per saperne di più sulle strategie di distribuzione di TensorFlow:

  1. La formazione personalizzata con tf.distribute.Strategy spettacoli tutorial su come utilizzare il tf.distribute.MirroredStrategy per la formazione singolo lavoratore con un ciclo di formazione personalizzato.
  2. La formazione multi-lavoratore con Keras spettacoli tutorial su come utilizzare il MultiWorkerMirroredStrategy con Model.fit .
  3. Il ciclo di formazione personalizzata con Keras e MultiWorkerMirroredStrategy spettacoli tutorial su come utilizzare il MultiWorkerMirroredStrategy con Keras e un ciclo di formazione personalizzato.
  4. La formazione Distribuito in tensorflow guida fornisce una panoramica delle strategie di distribuzione disponibili.
  5. La prestazione migliore con tf.function guida fornisce informazioni su altre strategie e strumenti, come ad esempio il tensorflow Profiler è possibile utilizzare per ottimizzare le prestazioni dei modelli tensorflow.
